PJ-12V150W

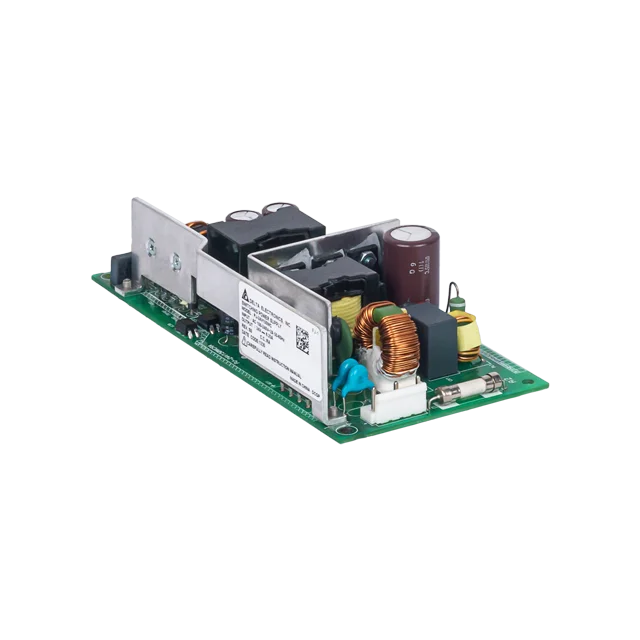

Open Frame

PJ 系列

PJ-12V150W

输出电压

12V

输出功率

150W

输出电流

12.5A

输入电压范围

85-264Vac

尺寸 (L x W x H)

160 x 75 x 37 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.45" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)

重量

0.30 kg (Open Frame)
0.51 kg (Enclosed) (0.66 lb)

亮点与特色

全球通用交流输入（85Vac - 264Vac）
低涌入电流／低接地漏泄电流
高转换效率及高功率因数利于节能
符合谐波电流 IEC/EN 61000-3-2, Class D
PCBA 保形涂层防化学和粉尘污染
遥控开关（150W 选项）
万能配置选项：开架电源、L 型框架电源、封闭式电源
长寿电容

Optional Models

Model	Description
PJ-12V150WBNA	Open Frame
PJ-12V150WBRA	Open Frame, remote ON/OFF
PJ-12V150WLNA	L Frame
PJ-12V150WLRA	L Frame, remote ON/OFF

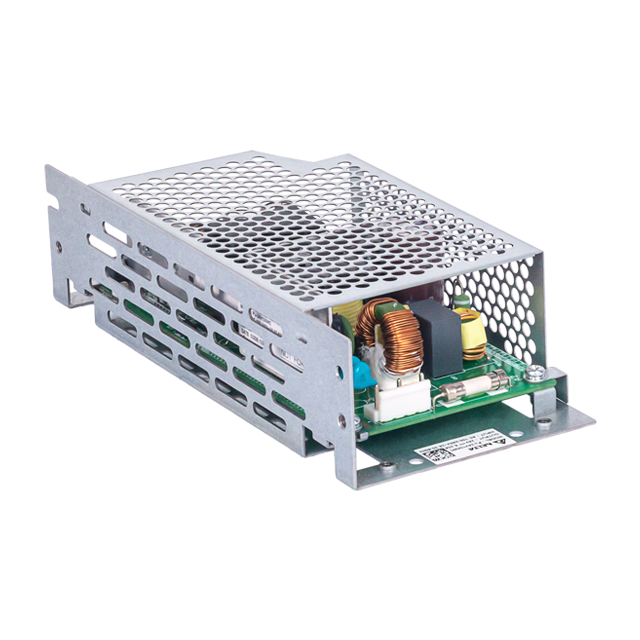

PJ-12V150WCNA	Enclosed
PJ-12V150WCRA	Enclosed, remote ON/OFF

应用领域

Open Frame

PJ 系列

PJ-12V150W

亮点与特色

全球通用交流输入（85Vac - 264Vac）
低涌入电流／低接地漏泄电流
高转换效率及高功率因数利于节能
符合谐波电流 IEC/EN 61000-3-2, Class D
PCBA 保形涂层防化学和粉尘污染
遥控开关（150W 选项）
万能配置选项：开架电源、L 型框架电源、封闭式电源
长寿电容

输出电压

12V

输出功率

150W

输出电流

12.5A

输入电压范围

85-264Vac

尺寸

160 x 75 x 37 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.45" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)

重量

0.30 kg (Open Frame)
0.51 kg (Enclosed) (0.66 lb)

应用领域

Optional Models

Model	Description
PJ-12V150WBNA	Open Frame
PJ-12V150WBRA	Open Frame, remote ON/OFF
PJ-12V150WLNA	L Frame
PJ-12V150WLRA	L Frame, remote ON/OFF
PJ-12V150WCNA	Enclosed
PJ-12V150WCRA	Enclosed, remote ON/OFF

资源下载

Datasheet

Uploaded on 23-Mar-2023

Manual

Uploaded on 22-Apr-2020


Uploaded on 07-Mar-2024

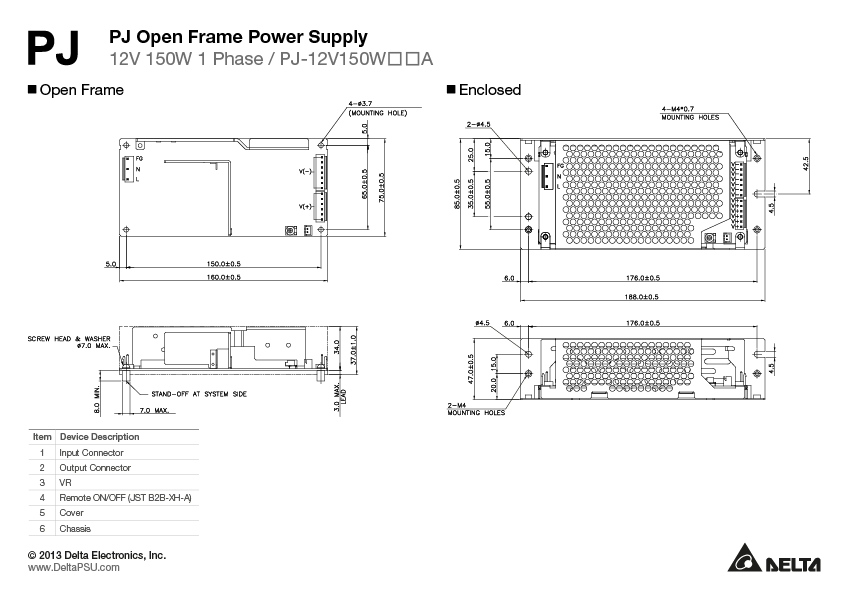

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 07-Jul-2021

CSA

Uploaded on 23-Nov-2020

REACH

Uploaded on 07-Sep-2023

RoHS

Uploaded on 07-Sep-2023

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 24-May-2022

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

输出电流

12.5A

输出电压

12V

输出电压调整范围

10.8-13.2Vdc

输出功率

150W

线电压调整率

< 48mV

负载调整率

< 100mV

开机时间

500ms typ. @ 100Vac

保持时间

20ms typ. @ 100Vac

动态回应

± 5% @ 0-50% load and 50-100% load (Slew Rate: 0.1A/µS)

电容性负载启动

6,000µF Max

波纹与噪音

< 150 mVpp @ 0°C to 50°C,
< 180 mVpp @ -10°C to

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

1.90A typ. @ 100Vac,
0.95A typ. @ 200Vac

100% 负载效率

88.0% typ. @ 100Vac,
91.0% typ. @ 200Vac

涌入电流

15A typ. @ 100Vac,
30A typ. @ 200Vac

功率因数

0.99 typ. @ 100Vac, 0.97 typ. @ 200Vac

漏电流

0.2mA @ 100Vac,
0.4mA @ 230Vac

底座 / 外壳上盖 SGCC
指示灯 -
冷却方式 Convection
输入端 JST B3P5-VH (LF)(SN)
输出端 V–: JST B7P-VH (LF)(SN), V+: JST B6P-VH (LF)(SN)
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 AWG 22-18
保护结构 -
端子台 -
重量 0.30 kg (Open Frame) 0.51 kg (Enclosed) (0.66 lb)	尺寸 160 x 75 x 37 mm (Open Frame) 188 x 85 x 47 mm (Enclosed) 6.29" x 2.95" x 1.45" (Open Frame) 7.40" x 3.34" x 1.85" (Enclosed)

振动测试（运行状态）

IEC 60068-2-6, 10 Hz to 55 Hz @ 19.6 m/S² (2 G); 3 min period, 60 min per axis for all X, Y, Z direction

运行温度

-10°C to +70°C

储存温度

-25°C to +75°C

功率降级

> 50°C de-rate power by 2% /°C,
< 90Vac de-rate power by 2% / V

运行湿度

5 to 90% RH (Non-Condensing)

防震测试（非运行状态）

IEC60068-2-27, 196.1m/S² (20G),11ms, once along X, Y, and Z axis

过压保护

13.8-16.8V, Latch Mode

超负载/过电保护

> 105% of rated load current, Hicc-up Mode, Non-Latching (Auto-Recovery)

过热保护

Latch Mode

短路保护

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

防震保护

Class I with Primary Earth connection

MTBF

> 200,000 hrs. as per JEITA RCR-9102B

预计最长使用寿命

10 years (115Vac, 50% load @ 40°C)

电气安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL Recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881)
cCSAus: CAN/CSA C22.2 No. 62368-1 and ANSI/UL 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 0.5 KVac

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

排放

CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B

抗扰度

EN/BS EN 55024

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class D

电压波动和闪变

IEC/EN/BS EN 61000-3-3
