PJB-24V100W

Open Frame

PJB 系列

PJB-24V100W

输出电压

24V

输出功率

103W

输出电流

4.3A

输入电压范围

85-264Vac

尺寸 (L x W x H)

155 x 62 x 33.5 mm (Open Frame)
185 x 72 x 45 mm (Enclosed)
6.10" x 2.44" x 1.29" (Open Frame)
7.28" x 2.83" x 1.77" (Enclosed)

重量

0.26 kg (Open Frame)
0.42 kg (Enclosed) (0.57 lb)

亮点与特色

全球通用交流输入（85Vac - 264Vac）
200% 峰值功率持续 10 秒
低涌入电流/低接地漏泄电流
高转换效率及高功率因数利于节能
PCBA 保形涂层防化学和粉尘污染
遥控开/关（100W 可选）
万能配置选项：开架电源，L 型框架电源，封闭式电源
长寿电容

Optional Models

Model	Description
PJB-24V100WBNA	Open Frame
PJB-24V100WBRA	Open Frame, remote ON/OFF
PJB-24V100WLNA	L Frame
PJB-24V100WLRA	L Frame, remote ON/OFF
PJB-24V100WCNA	Enclosed
PJB-24V100WCRA	Enclosed, remote ON/OFF

应用领域

Open Frame

PJB 系列

PJB-24V100W

亮点与特色

全球通用交流输入（85Vac - 264Vac）
200% 峰值功率持续 10 秒
低涌入电流/低接地漏泄电流
高转换效率及高功率因数利于节能
PCBA 保形涂层防化学和粉尘污染
遥控开/关（100W 可选）
万能配置选项：开架电源，L 型框架电源，封闭式电源
长寿电容

输出电压

24V

输出功率

103W

输出电流

4.3A

输入电压范围

85-264Vac

尺寸

155 x 62 x 33.5 mm (Open Frame)
185 x 72 x 45 mm (Enclosed)
6.10" x 2.44" x 1.29" (Open Frame)
7.28" x 2.83" x 1.77" (Enclosed)

重量

0.26 kg (Open Frame)
0.42 kg (Enclosed) (0.57 lb)

应用领域

Optional Models

Model	Description
PJB-24V100WBNA	Open Frame
PJB-24V100WBRA	Open Frame, remote ON/OFF
PJB-24V100WLNA	L Frame
PJB-24V100WLRA	L Frame, remote ON/OFF
PJB-24V100WCNA	Enclosed
PJB-24V100WCRA	Enclosed, remote ON/OFF

资源下载

Datasheet

Uploaded on 10-May-2022

Manual

Uploaded on 22-Apr-2020


Uploaded on 07-Mar-2024

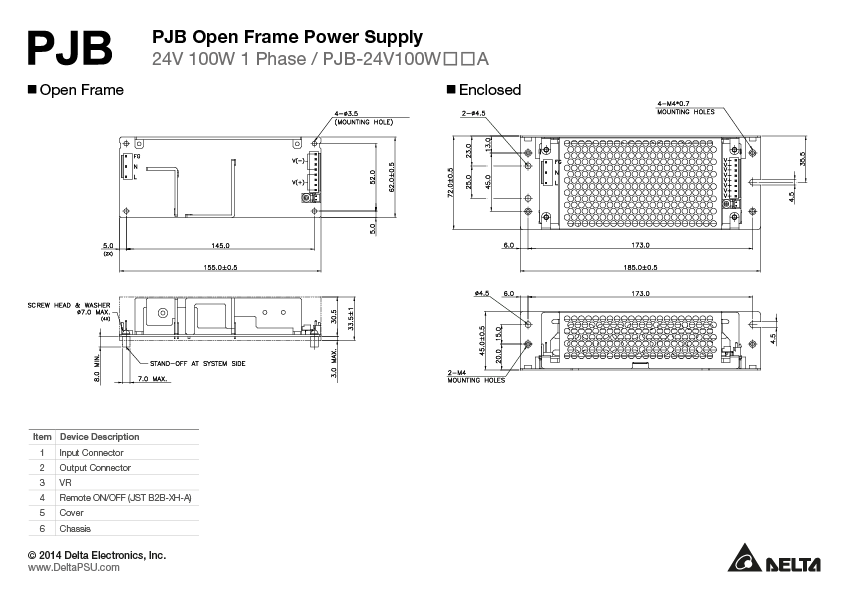

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 06-Jul-2021

REACH

Uploaded on 07-Sep-2023

RoHS

Uploaded on 07-Sep-2023

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 03-Dec-2020

Uploaded on 10-Jan-2021

GUI Software

Tech Specs

输出电流

4.3A

输出电压

24V

输出电压调整范围

21.6-26.4Vdc

输出功率

103W

线电压调整率

< 96mV

负载调整率

< 150mV

开机时间

500ms typ. @ 100Vac (100% load)

保持时间

20ms typ. @ 100Vac (100% load)

动态回应

± 5% @ 0-50% load and 50-100% load (Slew Rate: 0.1 A/µS)

电容性负载启动

8,000 µF Max

波纹与噪音

< 150 mVpp @ 0°C to 50°C,
< 180 mVpp @ -10°C to 0°C

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

1.30 A max. @ 100 Vac,
0.65 A max. @ 200 Vac

100% 负载效率

86.5% typ. @ 100Vac,
89.0% typ. @ 200Vac

涌入电流

15A typ. @ 100Vac,
30A typ. @ 200Vac

功率因数

0.98 typ. @ 100Vac,
0.97 typ. @ 200Vac

漏电流

0.2mA @ 100Vac,
0.4mA @ 230Vac

底座 / 外壳上盖 SGCC
指示灯 -
冷却方式 Convection
输入端 JST B3P5-VH (LF)(SN)
输出端 JST B8P5-VH (LF)(SN)
信号端 -
声压级（SPL） < 25 dBA
输入/输出端 -
信号 -
安装导轨 -
电线 AWG 22-18
保护结构 -
端子台 -
重量 0.26 kg (Open Frame) 0.42 kg (Enclosed) (0.57 lb)	尺寸 155 x 62 x 33.5 mm (Open Frame) 185 x 72 x 45 mm (Enclosed) 6.10" x 2.44" x 1.29" (Open Frame) 7.28" x 2.83" x 1.77" (Enclosed)

振动测试（运行状态）

IEC 60068-2-6, Sine Wave: 10Hz to 55Hz @ 19.6m/S² (2G peak); 10 min per cycle, 60 min per axis for all X, Y, Z direction

运行温度

-10°C to +70°C

储存温度

-25°C to +75°C

功率降级

Refer to datasheet

运行湿度

5 to 90% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

运行高度

0 to 5,000 Meters (16,400 ft)

污染程度

过压类别

过压保护

27.6-33.6V, Latch Mode

超负载/过电保护

> 220% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

过热保护

Latch Mode

短路保护

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防震保护

Class I with Primary Earth connection

MTBF

> 200,000 hrs. as per JEITA RCR-9102B

预计最长使用寿命

10 years (115Vac, 50% load @ 40°C)

电气安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1
UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EC

电隔离

Input to Output 3.0KVac
Input to Ground 2.0KVac
Output to Ground 0.5KVac

安全特低电压

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016
and Electrical Equipment (Safety) Regulations 2016

排放

(CE & RE)
CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B

抗扰度

EN/BS EN 55024

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A

电压波动和闪变

IEC/EN/BS EN 61000-3-3
