PJB-24V150W

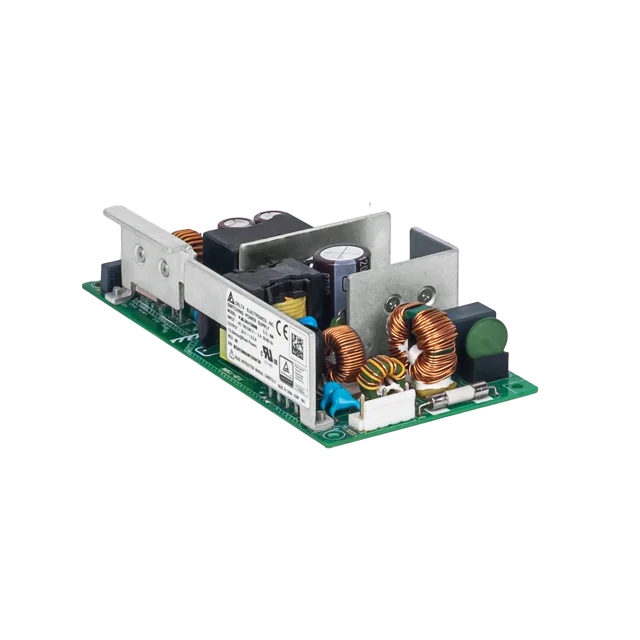

Open Frame

PJB 系列

PJB-24V150W

输出电压

24V

输出功率

151W

输出电流

6.3A

输入电压范围

85-264Vac

尺寸 (L x W x H)

160 x 75 x 37 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.45" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)

重量

0.31 kg (Open Frame)
0.51 kg (Enclosed) (0.68 lb)

亮点与特色

全球通用交流输入（85Vac - 264Vac）
200% 峰值功率持续 10 秒
低涌入电流/低接地漏泄电流
高转换效率及高功率因数利于节能
PCBA 保形涂层防化学和粉尘污染
遥控开/关（150W 可选）
空载输入功耗 < 0.5W (可选)
万能配置选项：开架电源，L 型框架电源，封闭式电源
设计符合日本 PSE (DENAN)*

Optional Models

Model	Description
PJB-24V150WBNA	Open Frame
PJB-24V150WBRA	Open Frame, remote ON/OFF
PJB-24V150WLNA	L Frame
PJB-24V150WLRA	L Frame, remote ON/OFF

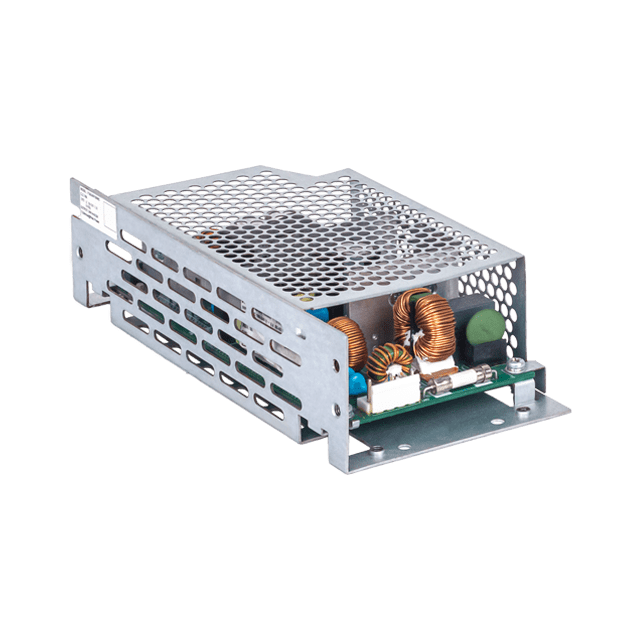

PJB-24V150WCNA	Enclosed
PJB-24V150WCRA	Enclosed, remote ON/OFF
PJB-24W150WJNA	Open Frame + Green Mode
PJB-24V150WJRA	Open Frame + Green Mode, remote ON/OFF
PJB-24V150WHNA	L Frame + Green Mode
PJB-24V150WHRA	L Frame + Green Mode, remote ON/OFF
PJB-24V150WGNA	Enclosed + Green Mode
PJB-24V150WGRA	Enclosed + Green Mode, remote ON/OFF

应用领域

Open Frame

PJB 系列

PJB-24V150W

亮点与特色

全球通用交流输入（85Vac - 264Vac）
200% 峰值功率持续 10 秒
低涌入电流/低接地漏泄电流
高转换效率及高功率因数利于节能
PCBA 保形涂层防化学和粉尘污染
遥控开/关（150W 可选）
空载输入功耗 < 0.5W (可选)
万能配置选项：开架电源，L 型框架电源，封闭式电源
设计符合日本 PSE (DENAN)*

输出电压

24V

输出功率

151W

输出电流

6.3A

输入电压范围

85-264Vac

尺寸

160 x 75 x 37 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.45" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)

重量

0.31 kg (Open Frame)
0.51 kg (Enclosed) (0.68 lb)

应用领域

Optional Models

Model	Description
PJB-24V150WBNA	Open Frame
PJB-24V150WBRA	Open Frame, remote ON/OFF
PJB-24V150WLNA	L Frame
PJB-24V150WLRA	L Frame, remote ON/OFF
PJB-24V150WCNA	Enclosed
PJB-24V150WCRA	Enclosed, remote ON/OFF
PJB-24W150WJNA	Open Frame + Green Mode
PJB-24V150WJRA	Open Frame + Green Mode, remote ON/OFF
PJB-24V150WHNA	L Frame + Green Mode
PJB-24V150WHRA	L Frame + Green Mode, remote ON/OFF
PJB-24V150WGNA	Enclosed + Green Mode
PJB-24V150WGRA	Enclosed + Green Mode, remote ON/OFF

资源下载

Datasheet

Uploaded on 10-May-2022

Manual

Uploaded on 22-Apr-2020


Uploaded on 07-Mar-2024

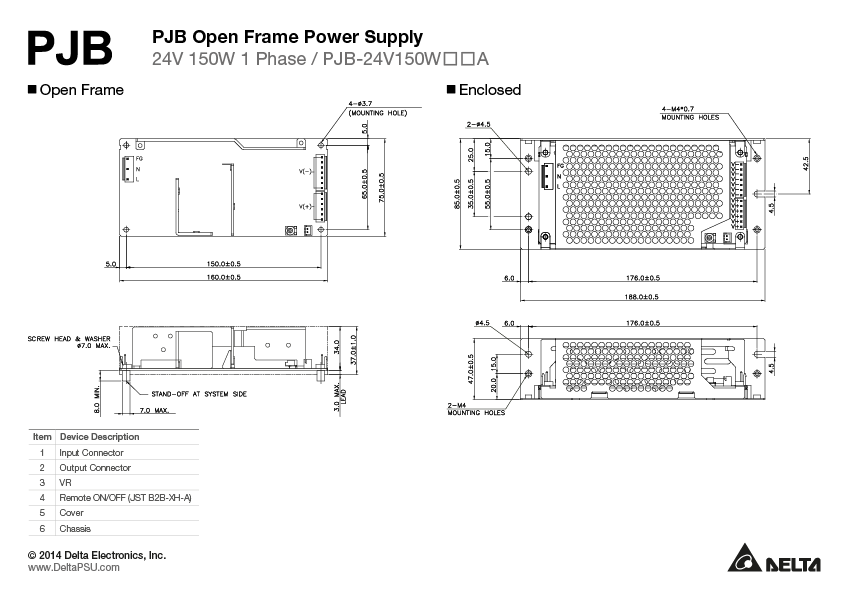

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 22-Jul-2021

cTUVus

Uploaded on 03-Dec-2020

REACH

Uploaded on 07-Sep-2023

RoHS

Uploaded on 07-Sep-2023

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 03-Dec-2020

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

输出电流

6.3A

输出电压

24V

输出电压调整范围

21.6-26.4Vdc

输出功率

151W

线电压调整率

< 96mV

负载调整率

< 150mV

开机时间

500ms typ. @ 100Vac

保持时间

20ms typ. @ 100Vac

动态回应

± 5% @ 0-50% load and 50-100% load (Slew Rate: 0.1A/µS)

电容性负载启动

8,000µF Max

波纹与噪音

< 150 mVpp @ 0°C to 50°C,
< 180 mVpp @ -10°C to 0°C

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

1.90A typ. @ 100Vac,
0.95A typ. @ 200Vac

100% 负载效率

88.0% typ. @ 100Vac,
90.5% typ. @ 200Vac

涌入电流

15A typ. @ 100Vac,
30A typ. @ 200Vac

功率因数

0.98 typ. @ 100Vac,
0.95 typ. @ 200Vac

漏电流

0.2mA @ 100Vac,
0.4mA @ 240Vac

底座 / 外壳上盖 SGCC
指示灯 -
冷却方式 Convection
输入端 JST B3P5-VH (LF)(SN)
输出端 V‒: JST B7P-VH (LF)(SN), V+: JST B6P-VH (LF)(SN)
信号端 -
声压级（SPL） < 25 dBA
输入/输出端 -
信号 -
安装导轨 -
电线 AWG 22-18
保护结构 -
端子台 -
重量 0.31 kg (Open Frame) 0.51 kg (Enclosed) (0.68 lb)	尺寸 160 x 75 x 37 mm (Open Frame) 188 x 85 x 47 mm (Enclosed) 6.29" x 2.95" x 1.45" (Open Frame) 7.40" x 3.34" x 1.85" (Enclosed)

振动测试（运行状态）

IEC 60068-2-6, Sine Wave: 10 Hz to 55 Hz @ 19.6 m/S² (2 G peak); 10 min per cycle, 60 min per axis for all X, Y, Z direction

运行温度

-10°C to +70°C

储存温度

-25°C to +75°C

功率降级

> 50°C de-rate power by 2% / °C
< 90Vac de-rate power by 2% / V

运行湿度

5 to 90% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

运行高度

0 to 5,000 Meters (16,400 ft)

污染程度

过压类别

过压保护

27.6-33.6V, Latch Mode

超负载/过电保护

> 220% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

过热保护

Latch Mode

短路保护

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防震保护

Class I with Primary Earth connection

MTBF

> 200,000 hrs. as per JEITA RCR-9102B

预计最长使用寿命

10 years (115 Vac, 50% load @ 40°C)

电气安全

For package type: B/L/C
TUV Bauart: EN 60950-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1
CB scheme: IEC 60950-1
For package type: J/H/G
TUV Bauart: EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1
cTUVus: UL62368-1 and CSA C22.2 No.62368-1
CB scheme: IEC 62368-1
Design to meet DENAN at 100Vac - 240Vac

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output 3.0KVac
Input to Ground 2.0KVac
Output to Ground 0.5KVac

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

排放

( CE & RE )
CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B

抗扰度

EN 61000-6-1 (For Package Type : B、L、C)

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A

电压波动和闪变

IEC/EN/BS EN 61000-3-3
