导轨型电源

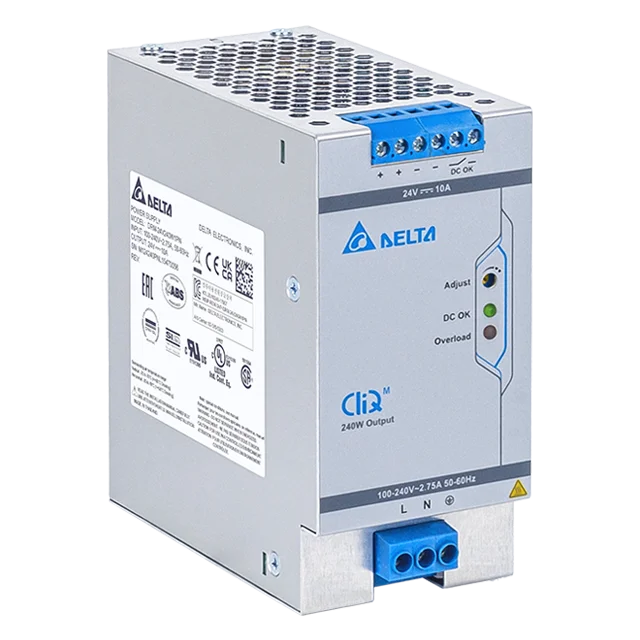

CliQ M

24V 240W / DRM-24V240W1PN

亮点及特色

  • Universal AC input voltage range
  • Built-in active PFC and up to 94% efficiency
  • Full power from -25°C to +60°C operation @ 5000m or 16400 ft. altitude
  • Power Boost of 150% up to 7 seconds
  • Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection
  • DNV GL and ABS approval for maritime applications
  • Built-in DC OK Contact and LED indicator for DC OK/ Overload
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants
尺寸 (L x W x D) :
124 x 60 x 117 mm
4.88" x 2.36" x 4.61"
重量 :
0.94 kg (2.07 lb)
额定输出电压
24V
输出电流
10A
输出电压调整范围
24-28Vdc
输出功率
240W
线电压调整率
10mV Max. (@ 85-276Vac input, 100% load)
负载调整率
100mV Max. (@ 85-276Vac input, 0-100% load)
纹波电压
50mVpp Max.
启动时间
100ms Max. @ 100Vac, 650ms Max. @ 120Vac, 340ms Max. @ 230Vac
保压时间
92ms typ. At 24V, 5A.
55ms Min. At 24V, 5A.
46ms Typ. At 24V, 10A.
28ms Min. At 24V, 10A.
动态响应
± 5% Max. @ 0-100% load Slew rate 0.1A/µs (@ 5Hz, 50Hz & 1kHz, 50% Duty Cycle)
电容性负载启动
10,000µF Max.
升压时间
100ms Max.(0µF, 24V, 10A.)
120ms Max.(10,000µF, 24V, 10A.)
额定输入电压
100-240Vac
额定输入频率
50-60Hz
输入频率范围
47-63Hz
额定直流输入电压
110-300Vdc
直流输入电压范围
88-375Vdc
输入电流
2.62A Typ. @ 100Vac, 2.17A Typ. @ 120Vac, 1.16A Typ. @ 230Vac
2.70A Max. @ 100Vac, 2.26A Max. @ 120Vac, 1.25A Max. @ 230Vac
100% 负荷效率
92.67% Typ. @ 100Vac, 93.44% Typ. @ 120Vac, 94.84%
最大涌入电流
10A Max.
功率因数
0.99 Typ. @ 100Vac, 0.98 Typ. @ 120Vac, 0.95 Typ. @ 230Vac
漏泄电流
< 0.25mA / 0.54mA : 110Vac, 50Hz, TN/TT system / IT system
< 0.38mA / 0.79mA : 132Vac, 50Hz, TN/TT system / IT system
< 0.74mA / 1.29mA : 264Vac, 50Hz, TN/TT system / IT system
最大功率损耗
At 24V,0A: 2.30W Typ. @ 100Vac, 2.34W Typ. @ 120Vac, 2.43W Typ. @ 230Vac, 4.40W Max. @ 100Vac, 4.90W Max. @ 120Vac, 6.10W Max. @ 230Vac
At 24V,10A: 19.12W Typ. @ 100Vac, 16.91W Typ. @ 120Vac, 13.10W Typ. @ 230Vac, 23.50W Max. @ 100Vac, 20.10W Max. @ 120Vac, 17.50W Max. @ 230Vac
尺寸
124 x 60 x 117 mm
4.88" x 2.36" x 4.61"
重量
0.94 kg (2.07 lb)
底座 / 外壳上盖
Aluminium
指示灯
Green LED (DC OK) and Red LED (Overload)
冷却方式
Convection
运行温度
-25°C to +70°C (Cold start -40°C)
储存温度
-40°C to +85°C
功率降级
Vertical: > 60°C de-rate power by 2.5% / °C
Horizontal: > 50°C de-rate power by 2.5% / °C
运行湿度
5 to 95% RH (Non-Condensing)
防震测试(非运行状态)
IEC60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total
振动测试(非运行状态)
IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions
运行高度
0 to 5,000 Meters (16,400 ft.) for ITE application
0 to 2,500 Meters (8,200 ft.) for Industrial application
污染程度
2
碰撞试验(运行状态)
IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total
过压类别
III : According to EN 50178 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part)
过压保护
28.8 – 35.2V, SELV Output, Hiccup Mode,
Non-Latching (Auto-Recovery)
超负荷/过电保护
> 150% of rated load current, Constant current,
Hiccup Mode (Auto-Recovery)
过热保护
< 80°C Surrounding Air Temperature @ 100% load,
Non-Latching (Auto-Recovery)
短路保护
Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
防护等级
IP20
防震保护
Class I with PE connection
MTBF
MTBF (as per Telcordia SR-332) :
1,476,000 hrs. I/P: 100Vac, O/P: 24V, 10A, Ta: 25°C
771,000 hrs. I/P: 100Vac, O/P: 24V, 10A, Ta: 40°C
预计最长使用寿命
131,400hrs. O/P: 24V, 10A, Ta: 25°C
58,000hrs. @ 100Vac, 87,600hrs. @ 230Vac O/P: 24V, 10A, Ta: 40°C
131,400hrs. O/P: 24V, 5A, Ta: 40°C
电气安全
SIQ Bauart: EN 60950-1, EN 61558-1, EN 61558-2-16, EN 61010-1, EN 61010-2-201
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 61558-1, IEC 61558-2-16, IEC 61010-1, IEC 61010-2-201
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
电隔离
4.54KVac: Input / Output
2.5KVac: Input / PE
4.54KVac: Input / DC OK relay contact*
1.5KVac: Output / PE
0.5KVac: Output / DC OK relay contact
1.5KVac: DC OK relay contact / PE
工业控制设备
UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355),
CSA: CSA C22.2 No. 107.1-01 (File No. 181564)
机器电气设备
EN 60204-1 (over voltage category III)
用于电率安装的电气设备
EN 50178 / IEC 62103
低压安全进入
PELV (EN 60204-1), SELV (EN 60950-1)
海事
DNV GL: Germanischer Lloyd classified
ABS: American Bureau for Shipping) PDA Environmental category: C, EMC2
材料与部件
RoHS Directive 2011/65/EU Compliant
隔离电阻
> 5MOhm: Input to Output, 500Vdc
PE 电阻
< 0.1Ohm
排放
(CE & RE)
Generic Standards: EN 61000-6-3
CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class B
抗扰度
Generic Standards: EN 55024, EN 61000-6-2
谐波电流排放
IEC/EN 61000-3-2, Class A
电压波动和闪变
IEC/EN 61000-3-3
通用用途之部件供电
EN 61204-3
