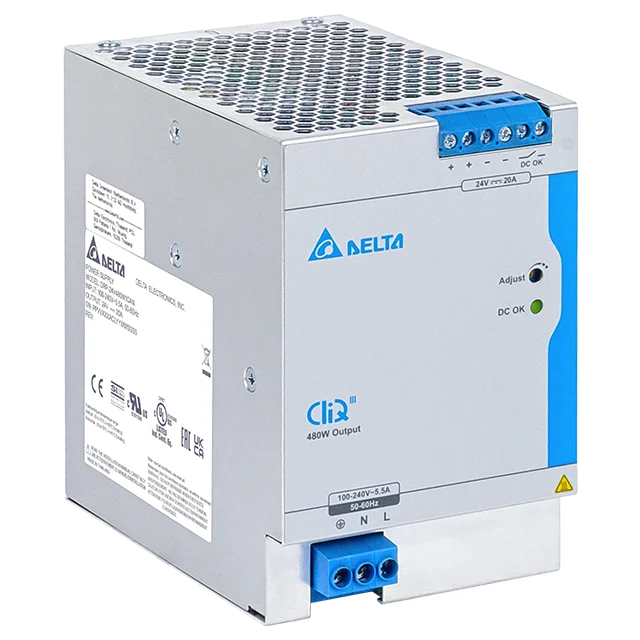

导轨型电源

CliQ III

24V 480W / DRP-24V480W1CAN

亮点及特色

  • Universal AC input voltage range
  • Built-in constant current circuit for charging application
  • High efficiency of up to 94% at 230Vac
  • Power Boost of 150% for 5 seconds
  • Advanced Power Boost (APB) of 200% for 50ms
  • SEMI F47 compliance at 120Vac
  • Extreme low temperature cold start at -40°C
  • Built-in DC OK Contact and LED indicator for DC OK
  • Conformal coating on PCBA to protect against common dust and chemical pollutants


尺寸 (L x W x D) :
124 x 82 x 127 mm
4.88" x 3.23" x 5.00"
重量 :
1.20 kg (2.65 lb)
额定输出电压
24V
输出电流
20A
输出电压调整范围
24-28Vdc
输出功率
480W
线电压调整率
0.5% (@ 88-264Vac input, 100% load)
负载调整率
1% (@ 88-264Vac input, 0-100% load)
纹波电压
100mVpp Max.
启动时间
400ms Max. @ 24V, 20A
保压时间
21ms Typ. @ 24V, 20A
15ms Min. @ 24V, 20A
动态响应
± 5% @ 0-100% load
电容性负载启动
10,000µF Max.
升压时间
150ms Max. @ 24V, 20A
额定输入电压
100-240Vac
输入电压范围
100-264Vac (Continuously operating)
88-100Vac (With power de-rating)
额定输入频率
50-60Hz
输入频率范围
47-63Hz
直流输入电压范围
100-375Vdc (Continuously operating, with safety approval according to IEC/EN/UL 60950-1)
88-100Vdc (With power de-rating)
输入电流
4.52A Typ. @ 115 Vac, 2.31A typ. @ 230Vac
100% 负荷效率
92.55% Typ. @ 115Vac, 94.00% Typ. @ 230Vac
最大涌入电流
(Cold Start)
12.8A Typ. @ 115Vac, 30.6A Typ. @ 230Vac, 40A Max. @ 115Vac, 80A Max. @ 230Vac
功率因数
0.99 Typ. @ 115Vac, 0.96 Typ. @ 230Vac, 0.99 Min. @ 115Vac, 0.95 Min. @ 230Vac
漏泄电流
(Enclosure to Neutral)
< 0.49mA / 1.12mA: 110Vac, 50Hz, TN/TT system / IT system
< 0.58mA / 1.29mA: 132Vac, 50Hz, TN/TT system / IT system
< 1.12mA / 2.55mA: 264Vac, 50Hz, TN/TT system / IT system
最大功率损耗
At 24V, 0A: 4.19W Typ. @ 115Vac, 4.40W Typ. @ 230Vac, 10.0W Max. @ 115Vac, 11.0W Max. @ 230Vac
At 24V, 20A: 38.73W Typ. @ 115Vac, 30.85W Typ. @ 230Vac, 47.73W Max. @ 115Vac, 36.13W Max. @ 230Vac
尺寸
124 x 82 x 127 mm
4.88" x 3.23" x 5.00"
重量
1.20 kg (2.65 lb)
底座 / 外壳上盖
Aluminium
指示灯
Green LED (DC OK)
冷却方式
Convection
运行温度
-25°C to +70°C (Cold start -40°C)
储存温度
-40°C to +85°C
功率降级
Vertical Mounting:
AC input > 60°C de-rate by 2.5% / °C
DC input > 50°C de-rate by 2.5% / °C
Horizontal Mounting: > 40°C de-rate by 2.5% / °C
Input Voltage:
AC input < 100Vac de-rate by 0.83% / V
DC input < 100Vdc de-rate by 1.67% / V
运行湿度
5 to 95% RH (Non-Condensing)
防震测试(非运行状态)
IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 9 times in total
振动测试(非运行状态)
IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions
运行高度
0 to 5,000 Meters (16,400 ft.)
污染程度
2
碰撞试验(运行状态)
IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total
过压类别
III (operating altitude 2,500 Meters)
II (operating altitude 5,000 Meters)
According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part)
过压保护
28.8 - 35.2V, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)
超负荷/过电保护
125 – 170% of rated load current, Constant current, Hiccup Mode (Auto-Recovery)
过热保护
< 80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)
短路保护
Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed): Load impedance ≤ 100mOhm
防护等级
IP20
防震保护
Class I with Primary Earth connection
MTBF
1,041,600 hrs.: I/P: 115Vac, O/P: 24V, 20A, Ta: 25°C
621,000 hrs.: I/P: 115Vac, O/P: 24V, 20A, Ta: 40°C
预计最长使用寿命
O/P: 24V, 20A, Ta: 25°C: 131,400hrs. @ 115Vac & 230Vac
O/P: 24V, 10A, Ta: 40°C: 131,400hrs. @ 115Vac & 230Vac
O/P: 24V, 20A, Ta: 60°C: 15,400hrs. @ 115Vac, 20,300hrs. @ 230Vac
O/P: 24V, 3.75A, Ta: 60°C: 30,500hrs.@ 115Vac, 38,500hrs. @ 230Vac
电气安全
SIQ Bauart: EN 60950-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395)
CB scheme: IEC 60950-1
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
电隔离
Input to Output: 4.0KVac
Input to Ground: 2.0KVac
Input to DC OK relay contact: 4.0KVac
Output to Ground: 1.5KVac
Output to DC OK relay contact: 0.5KVac
DC OK relay contact to PE: 1.5KVac
工业控制设备
UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)
机器电气设备
EN 60204-1 (over voltage category III)
用于电率安装的电气设备
IEC/EN 62477-1 / IEC 62103
低压安全进入
PELV (EN 60204-1), SELV (EN 60950-1)
材料与部件
RoHS Directive 2011/65/EU Compliant (EN 50581)
PE 电阻
< 0.1Ohm
排放
(CE & RE)
Generic Standards: EN 61000-6-3
CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class B
抗扰度
Generic Standards: EN 55024, EN 61000-6-2
谐波电流排放
IEC/EN 61000-3-2, Class A
电压波动和闪变
IEC/EN 61000-3-3
通用用途之部件供电
EN 61204-3
