导轨型电源

Sync

12V 48W / DRS-12V50W1NZ

亮点及特色

  • Ultra-compact size and galvanic isolation up to 3.0KVac between input to output and input to ground
  • Universal AC input voltage and full power from -10°C to +55°C operation
  • Up to 89.0% efficiency
  • Low earth leakage current < 0.5mA @ 264Vac
  • Built-in DC OK relay contact option available
  • Extreme low temperature cold start at -40°C
  • NEC Class 2 / Limited Power Source (LPS) certified
  • Certified according to IEC/EN/UL 62368-1

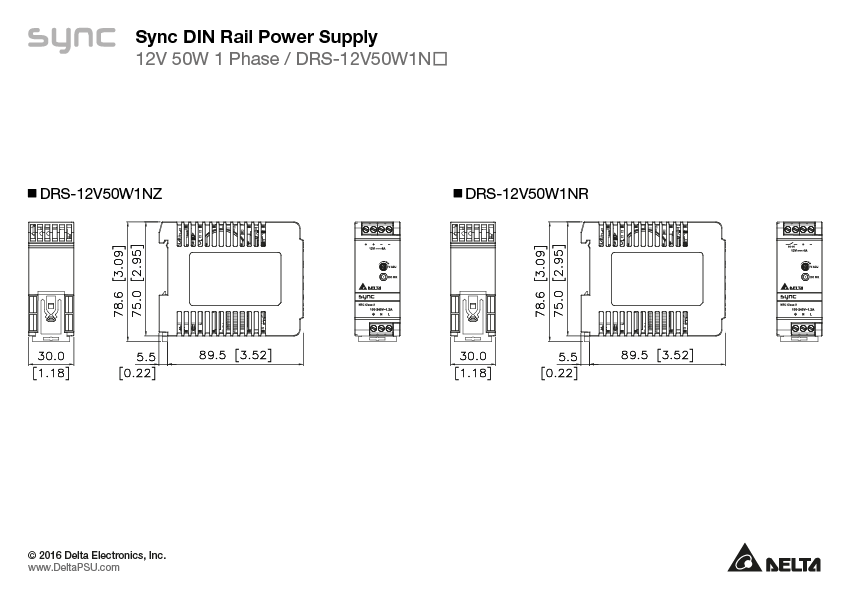

尺寸 (L x W x D) :
75 x 30 x 89.5 mm
2.95" x 1.18" x 3.52"
重量 :
0.18 kg (0.40 lb)
额定输出电压
12V
输出电流
4A
输出电压调整范围
12-15Vdc
输出功率
48W
线电压调整率
< 0.5% (@ 85-264Vac, 100% load)
负载调整率
< 1.0% (@ 85-264Vac, 0-100% load)
纹波电压
< 50mVpp @ > 0°C to 70°C
< 100mVpp @ 0°C to -20°C
启动时间
< 2,000ms @ 115Vac (100% load)
< 1,000ms @ 230Vac (100% load)
保压时间
> 20ms @ 115Vac (100% load)
> 100ms @ 230Vac (100% load)
动态响应
± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz)
电容性负载启动
3,000μF Max
额定输入电压
100-240Vac
输入电压范围
85-264Vac
额定输入频率
50-60Hz
输入频率范围
47-63Hz
直流输入电压范围
120-375Vdc
输入电流
< 0.9A@115Vac, < 0.55A @ 230Vac
100% 负荷效率
> 88%@ 115Vac, > 89% @ 230Vac
最大涌入电流
< 25A @ 115Vac, < 50A @ 230Vac
漏泄电流
IEC/EN 60950-1: < 0.5mA @ 264Vac
IEC/EN 62368-1: < 1.0mA @ 264Vac
最大功率损耗
0% load: < 0.3W @ 115Vac, < 0.4W@ 230Vac
100% load: < 6W @ 115Vac & 230Vac
尺寸
75 x 30 x 89.5 mm
2.95" x 1.18" x 3.52"
重量
0.18 kg (0.40 lb)
底座 / 外壳上盖
Plastic
指示灯
Green LED (DC OK)
冷却方式
Convection
运行温度
-20°C to +70°C (Cold start at -40°C@ 40% load)
储存温度
-40°C to +85°C
功率降级
-10°C to -20°C de-rate power by 2% / °C
> 55°C de-rate power by 3.33% / °C
运行湿度
5 to 95% RH (Non-Condensing)
防震测试(非运行状态)
IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction, 9 times in total
防震测试(运行状态)
IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms; 1 time in X axis
振动测试(非运行状态)
IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions
振动测试(运行状态)
IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 1 octave per min; 60 min per axis for all X, Y, Z directions
污染程度
2
过压保护
< 18.7V, SELV Output, Latch Mode
超负荷/过电保护
105~120% of rated load current, Foldback Mode (continuous current, voltage drops), Auto-recovery when the fault is removed
过热保护
< 75°C Surrounding Air Temperature @ 100% load, Latch Mode
短路保护
Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)
防护等级
IP20
防震保护
Class I with PE connection
MTBF
> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac & 230Vac, O/P: 100% load, Ta: 35°C
230,000 hrs. as per MIL-HDBK-217F
I/P: 115Vac & 230Vac,O/P: 100% load, Ta: 25°C
预计最长使用寿命
10 years (115ac & 230Vac, 50% load @ 40°C)
电气安全
TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL 经: UL 60950-1, UL 62368-1, CSA C22.2 No. 60950-1 (File No. E191395) 认证
CB 报告: IEC 60950-1, IEC 62368-1 , 限功率电源(Limited Power Source, LPS)
CE
符合 EMC 规定 2014/30/EU 及低压规定 2014/35/EU
电隔离
输入至输出:3.0KVac
输入至接地:3.0KVac
输出至接地:0.5KVac
工业控制设备
UL/cUL 列入:UL 508, CSA C22.2 No. 107.1-01 (File No. E315335)
低压安全进入
SELV (EN 60950)
材料与部件
符合 RoHS Directive 2011/65/EU 标准
排放
(CE & RE)
通用标准: EN 61000-6-3, EN 61000-6-4
CISPR 32, EN 55032, EN 55011, FCC Title 47: Class B
抗扰度
通用标准: EN 55024, EN 61000-6-1, EN 61000-6-2
谐波电流排放
IEC/EN 61000-3-2, Class A
电压波动和闪变
IEC/EN 61000-3-3
通用用途之部件供电
EN 61204-3

文档

.DXF 上传至 08-Mar-2016 234 KB
Mechanical Drawing 上传至 08-Mar-2016 44 KB
数据表 上传至 05-Mar-2019 914 KB
Manual 上传至 14-Dec-2018 1.5 MB
.STP 上传至 20-Sep-2018 3.9 MB
图片 上传至 03-Nov-2016 373 KB

证书

UL 上传至 08-Mar-2016 68 KB
CB 上传至 20-Nov-2018 200 KB
CE 上传至 23-Mar-2017 47 KB
EAC 上传至 27-Mar-2019 1.1 MB
REACH 上传至 18-Dec-2018 545 KB
RoHS 上传至 18-Dec-2018 380 KB
TUV 上传至 20-Nov-2018 1.0 MB
