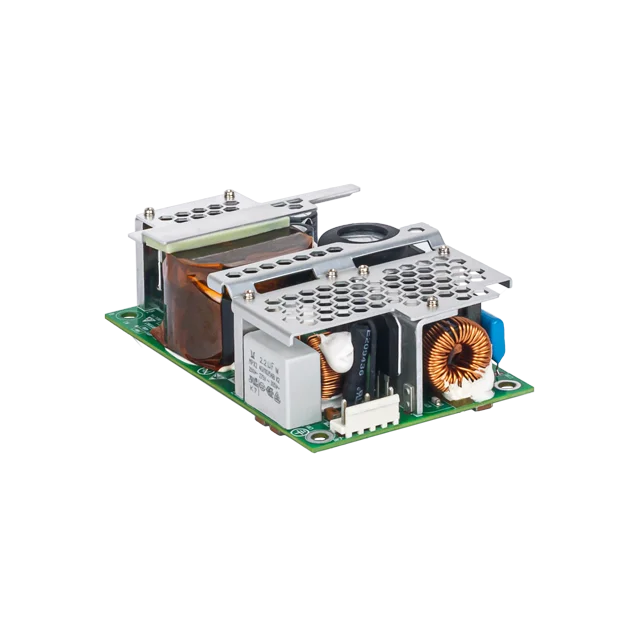

PJL-48V400WBAA

资源下载

Datasheet

Uploaded on 07-Sep-2021

Manual

Uploaded on 22-Apr-2020


Uploaded on 07-Mar-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 22-Apr-2020

CSA

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 07-Sep-2023

SIQ

Uploaded on 22-Apr-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 07-Sep-2021

GUI Software

Tech Specs

输出电流

8.33A

输出电压

48V

输出电压调整范围

48-50Vdc

输出功率

400W

线电压调整率

± 1% typ. (@ 100-277Vac input, 0-100% load)

负载调整率

± 2% typ. (@ 100-277Vac input, 0-100% load)

纹波电压

< 680mVpp
20MHz, warm up for 10mins

开机时间

< 500ms @ 100Vac & 240Vac (100% load), With and without capacitive loads

保持时间

> 5ms @ 115Vac & 230Vac (100% load)

动态回应

± 5% @ 100-305Vac input, 0-50% load & 50-100% load & 0-100% load (Slew Rate: 2.5A/μS, 50% duty cycle @ 5Hz, 50Hz, 1KHz)

电容性负载启动

680μF Max

升压时间

< 100ms @ nominal input (100% load)

额定输入电压

100-277Vac

输入电压范围

85-305Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

< 4.74A @ 115Vac

100% 负载效率

> 85% @ 115Vac, > 90% @ 230Vac

涌入电流

< 20A @ 230Vac ((Cold Start))

功率因数

> 0.95 @ 115Vac & 230Vac

漏电流

< 500μA, According to CSA C22.2 No. 166 and UL8750 edition 2nd

功率损耗

No Load: < 0.7W @ 230Vac
100% Load: < 22.2W @ 230Vac

底座 / 外壳上盖 -
指示灯 -
冷却方式 Convection: 0-200W Fan Cool: 201-400W With 400 LFM fan cool, 15mm distance between PSU and fan
输入端 -
输出端 -
信号端 -
声压级（SPL） Sound Pressure Level (SPL) < 25dBA
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.42 kg (0.93 lb)	尺寸 127 x 76.6 x 39.3 mm 5.00” x 3.02” x 1.55”

运行温度

-40°C to +80°C

储存温度

-40°C to +85°C

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, Half Sine 50G for a duration of 11ms, 3 times per direction, 9 times in total

振动测试（非运行状态）

IEC 60068-2-6, 10Hz to 150Hz @ 25m/S² (2.5G peak); displacement of 0.35mm; 90 min per axis for all X, Y, Z direction

运行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

过压类别

过压保护

< 60V, SELV Output, Latch Mode

超负载/过电保护

> 105% of rated load current, Hiccup mode, Non-Latching (Auto recovery)

过热保护

Latch Mode

短路保护

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防震保护

Class I with Primary Earth connection

MTBF

> 500,000 hrs. as per Telcordia SR-332 I/P: 115Vac, O/P: 100% load, Ta: 25°C

预计最长使用寿命

10 years (115Vac & 230Vac, 50% load @ 40°C)

电气安全

SIQ Bauart: EN 60950-1, EN 62368-1
cCSAus: CSA C22.2 No. 250.13 and UL 8750 CSA C22.2 No. 60950-1 and UL 60950-1 CSA C22.2 No. 62368-1 and UL 62368-1
CB scheme: IEC 60950-1, IEC 62368-1, IEC 61347-1 and IEC 61347-2-13

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output 4kVac (Reinforced)
3kVac (Production Test)
Input to Ground 1.5kVac (Basic & Production Test)

安全特低电压

SELV (IEC 60950-1)

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and
Electrical Equipment (Safety) Regulations 2016

排放

Generic Standards: CISPR 32, EN/BS EN 55032: Class B

抗扰度

Generic Standards: EN/BS EN 55024, EN/BS EN 55035

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class C

电压波动和闪变

IEC/EN/BS EN 61000-3-3 at nominal voltages and full load
