PMC-05V050W1AA

Panel Mount

PMC 系列

PMC-05V050W1AA

输出电压

输出功率

50W

输出电流

10A

输入电压范围

85-264Vac

尺寸 (L x W x H)

128 x 97 x 38 mm

5.04” x 3.82” x 1.50”

重量

0.26 kg (0.57 lb)

亮点与特色

全球通用交流输入电压范围
全输入电压范围无功率降额
抗腐蚀铝质外売
符合谐波电流IEC/EN 61000-3-2, Class A 标准
MTBF > 700,000 hrs Telcordia SR-332
通过 IEC/EN/UL 60950-1、 IEC/EN/UL62368-1和EMI EN 55032 ,Class B 认证

** 停用产品 **

取代机种: PMT-5V50W1AA

应用领域

Panel Mount

PMC 系列

PMC-05V050W1AA

亮点与特色

全球通用交流输入电压范围
全输入电压范围无功率降额
抗腐蚀铝质外売
符合谐波电流IEC/EN 61000-3-2, Class A 标准
MTBF > 700,000 hrs Telcordia SR-332
通过 IEC/EN/UL 60950-1、 IEC/EN/UL62368-1和EMI EN 55032 ,Class B 认证

** 停用产品 **

取代机种: PMT-5V50W1AA

输出电压

输出功率

50W

输出电流

10A

输入电压范围

85-264Vac

尺寸

128 x 97 x 38 mm

5.04” x 3.82” x 1.50”

重量

0.26 kg (0.57 lb)

应用领域

资源下载

Datasheet

Uploaded on 17-Aug-2021

Manual

Uploaded on 22-Apr-2020


Uploaded on 07-Mar-2024

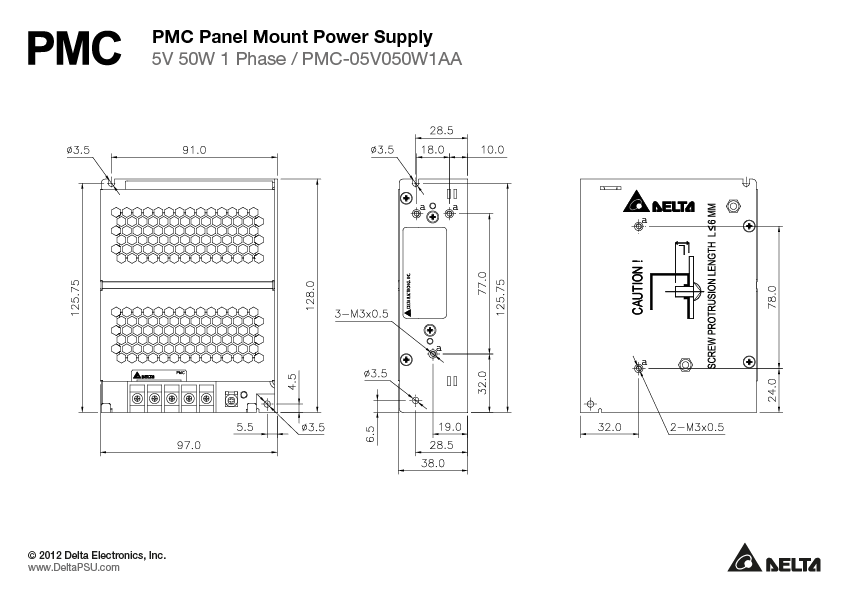

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 30-Nov-2020

CCC

Uploaded on 22-Apr-2020

Uploaded on 30-Nov-2020

EAC

Uploaded on 22-Apr-2020

Uploaded on 01-Mar-2021

REACH

Uploaded on 07-Sep-2023

RoHS

Uploaded on 07-Sep-2023

SIQ

Uploaded on 30-Nov-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 17-Aug-2021

Uploaded on 30-Nov-2020

GUI Software

Tech Specs

输出电流

10A

输出电压

输出电压调整范围

4.75-5.5Vdc

输出功率

50W

线电压调整率

< 0.5% (@ 85-264Vac input, 100% load)

负载调整率

< 1.0% (@ 85-264Vac input, 0-100% load)

纹波电压

< 70mVpp

开机时间

< 2000ms @ nominal input (100% load)

保持时间

> 15ms @ 115Vac, >80ms @ 230Vac (100% load)

动态回应

± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz)

电容性负载启动

8,000µF Max

升压时间

< 30ms @ nominal input (100% load)

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

额定直流输入电压

125-250Vdc

直流输入电压范围

125-375Vdc

输入电流

< 1.1A @ 115Vac,
< 0.7A @ 230Vac

100% 负载效率

> 79.0% @ 115Vac & 230Vac

涌入电流

< 30A @ 115Vac,
< 65A @ 230Vac

功率因数

Conform to EN61000-3-2

漏电流

< 1mA @ 240Vac

功率损耗

0% load: < 1.2W @ 115Vac, < 1.7W @ 230Vac
100% load: < 13.2W @ 115Vac & 230Vac

底座 / 外壳上盖 Aluminium
指示灯 Green LED DC OK
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） <40dBA
输入/输出端 M3.5 x 5 Pins (Rated 300VAC/15A)
信号 -
安装导轨 -
电线 AWG 20-14
保护结构 -
端子台 -
重量 0.26 kg (0.57 lb)	尺寸 128 x 97 x 38 mm 5.04” x 3.82” x 1.50”

运行温度

-10°C to +70°C

储存温度

-25°C to +85°C

功率降级

> 50°C de-rate power by 2.5% /°C

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms 1 times per direction, 6 times in total

振动测试（非运行状态）

IEC60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

运行高度

0 to 3,000 Meters (9,840 ft)

污染程度

碰撞试验（运行状态）

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

过压类别

过压保护

< 6.5V ±10%,, SELV output, Hiccup Mode, Non-Latching (Auto-Recovery).

超负载/过电保护

> 120% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery).

过热保护

< 75°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

短路保护

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防震保护

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332 I/P: 115Vac & 230Vac, O/P: 100% load, Ta: 25°C

预计最长使用寿命

10 years (115Vac & 230Vac, 50% load @ 40°C)

电气安全

SIQ Bauart : EN 60950-1, EN 62368-1
UL/cUL recognized : UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme : IEC 60950-1, IEC 62368-1
KC : K 60950-1
CCC : GB/T9254, GB17625.1 and GB4943.1 仅适用于海拔 2000m 以下地区安全使用

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0 KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5 KVac

安全特低电压

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

K 60950-1

排放

(CE & RE)
Generic Standards: CISPR32, EN/BS EN 55032, KN32, FCC Title 47: Class B

抗扰度

Generic Standards: EN/BS EN 55024, KN35

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A

电压波动和闪变

IEC/EN/BS EN 61000-3-3
