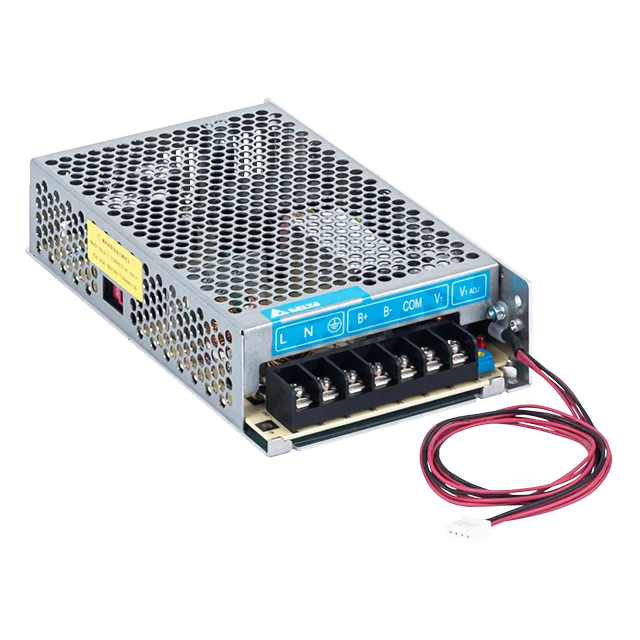

PMU-13V155WCCA

平板型电源

PMU 系列

PMU-13V155WCCA

输出电压

13.8V

输出功率

151W

输出电流

9.5A,1.5A

输入电压范围

90-132Vac, 180-264Vac (Selectable by Switch)

尺寸 (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

重量

0.60 kg (1.32 lb)

亮点与特色
  • AC input voltage range selectable by switch
  • 流正常状态 LED 指示灯(绿色)、电池接反报警(红色)
  • 遇交流断电无间隔切换至电池操作
  • 符合谐波电流 IEC/EN 61000-3-2, Class A 标准
  • 平均无故障运行时间 (MTBF)  > 700,000 小时,Telcordia SR-332 标准
  • 交流正常、直流正常及低电池信号监控
  • 过压 / 过流 / 过温 / 短路保护
  • 缓冲(放电)模式下内置式过流及短路保
  • 通过 IEC/EN/UL 62368-1 认证


Model Description
PMU-13V155WCBA Enclosed, without Signal
PMU-13V155WLCA L Frame
PMU-13V155WLBA L Frame, without Signal
应用领域


PMU-13V155WCCA
PMU-13V155WCCA

平板型电源

PMU 系列

PMU-13V155WCCA

亮点与特色
  • AC input voltage range selectable by switch
  • 流正常状态 LED 指示灯(绿色)、电池接反报警(红色)
  • 遇交流断电无间隔切换至电池操作
  • 符合谐波电流 IEC/EN 61000-3-2, Class A 标准
  • 平均无故障运行时间 (MTBF)  > 700,000 小时,Telcordia SR-332 标准
  • 交流正常、直流正常及低电池信号监控
  • 过压 / 过流 / 过温 / 短路保护
  • 缓冲(放电)模式下内置式过流及短路保
  • 通过 IEC/EN/UL 62368-1 认证


输出电压

13.8V

输出功率

151W

输出电流

9.5A,1.5A

输入电压范围

90-132Vac, 180-264Vac (Selectable by Switch)

尺寸

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

重量

0.60 kg (1.32 lb)

应用领域
Model Description
PMU-13V155WCBA Enclosed, without Signal
PMU-13V155WLCA L Frame
PMU-13V155WLBA L Frame, without Signal

资源下载

资源下载

Datasheet

Uploaded on 17-May-2024

Manual

Uploaded on 26-Aug-2021


Uploaded on 06-Jun-2024

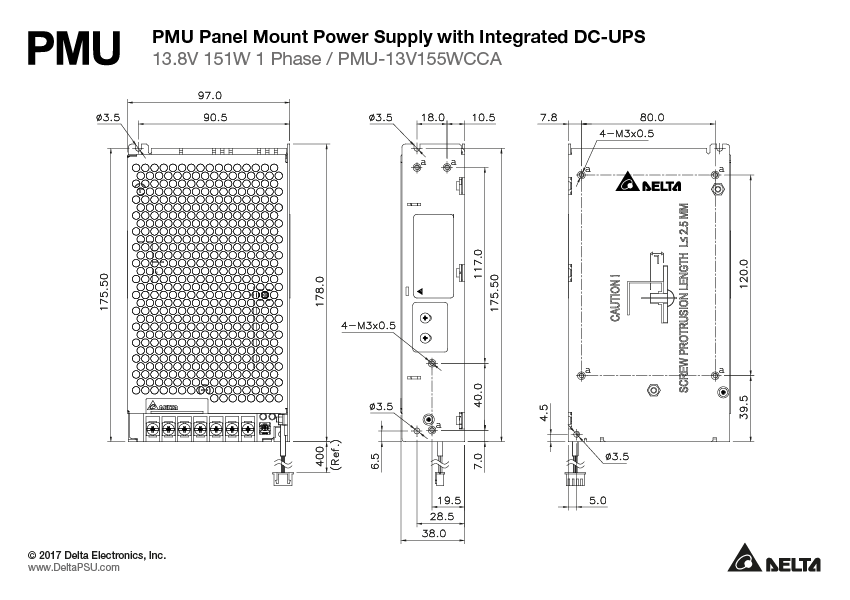

Mechanical Drawing
