DRS-24V100W1NZ

DIN Rail

SYNC Serie

DRS-24V100W1NZ

Ausgangsspannung

24V

Ausgangsleistung

91W

Ausgangsstrom

3.8A

Eingangsspannungsbereich

85-264Vac

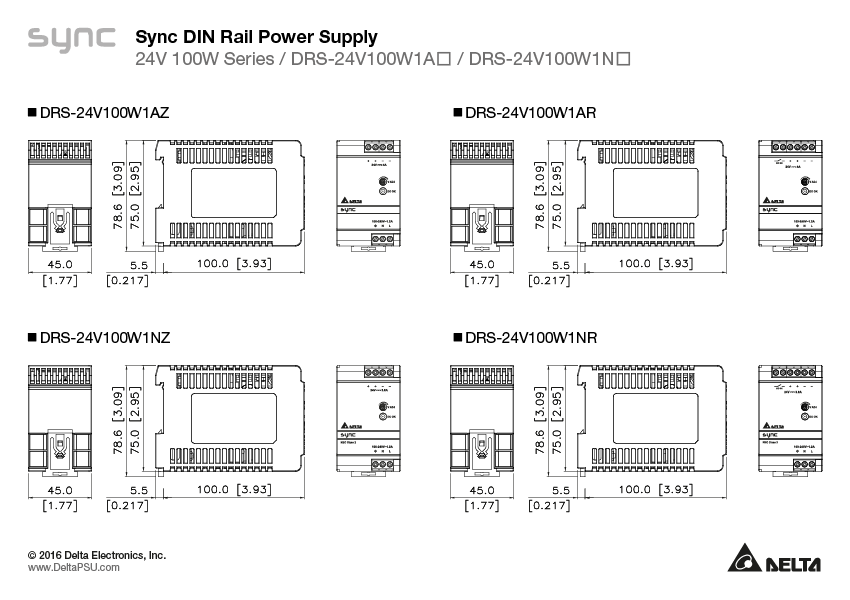

Abmessungen (H x W x D)

75 x 45 x 100 mm

2.95” x 1.77” x 3.94”

Gewicht

0.325 kg (0.72 lb)

Highlights & technische Merkmale
  • Ultra-compact size and galvanic isolation up to 3.0KVac between input to output and input to ground
  • Universal AC input voltage and full power from -10°C to +55°C operation
  • Up to 89.0% efficiency and built-in active PFC
  • Low earth leakage current < 0.5mA @ 264Vac
  • Built-in DC OK relay contact option available
  • Extreme low temperature cold start at -40°C
  • NEC Class 2 / Limited Power Source (LPS) certified (DRS-24V100W1N☐)
  • Certified according to IEC/EN/UL 62368-1


Model Description
DRS-24V100W1NR Without DC OK contact
Tags
NEC Class 2
Anwendungsbereiche


DRS-24V100W1NZ
DRS-24V100W1NZ

DIN Rail

SYNC Serie

DRS-24V100W1NZ

Highlights & technische Merkmale
  • Ultra-compact size and galvanic isolation up to 3.0KVac between input to output and input to ground
  • Universal AC input voltage and full power from -10°C to +55°C operation
  • Up to 89.0% efficiency and built-in active PFC
  • Low earth leakage current < 0.5mA @ 264Vac
  • Built-in DC OK relay contact option available
  • Extreme low temperature cold start at -40°C
  • NEC Class 2 / Limited Power Source (LPS) certified (DRS-24V100W1N☐)
  • Certified according to IEC/EN/UL 62368-1


Ausgangsspannung

24V

Ausgangsleistung

91W

Ausgangsstrom

3.8A

Eingangsspannungsbereich

85-264Vac

Abmessungen

75 x 45 x 100 mm

2.95” x 1.77” x 3.94”

Gewicht

0.325 kg (0.72 lb)

Anwendungsbereiche
Model Description
DRS-24V100W1NR Without DC OK contact
Tags
NEC Class 2
