DRS-24V50W1NZ

DIN Rail

SYNC Serie

DRS-24V50W1NZ

Ausgangsspannung

24V

Ausgangsleistung

50W

Ausgangsstrom

2.1A

Eingangsspannungsbereich

85-264Vac

Abmessungen (H x W x D)

75 x 30 x 89.5 mm

2.95” x 1.18” x 3.52”

Gewicht

0.18 kg (0.40 lb)

Highlights & technische Merkmale
  • Ultra-compact size and galvanic isolation up to 3.0KVac between input to output and input to ground
  • Universal AC input voltage and full power from -10°C to +55°C operation
  • Up to 90.0% efficiency
  • Low earth leakage current < 0.5mA @ 264Vac
  • Built-in DC OK relay contact option available
  • Extreme low temperature cold start at -40°C
  • NEC Class 2 / Limited Power Source (LPS) certified
  • Certified according to IEC/EN/UL 62368-1


    Model Description
    DRS-24V50W1NR Without DC OK contact
    Tags
    NEC Class 2
    Anwendungsbereiche


    DRS-24V50W1NZ
    DRS-24V50W1NZ

    DIN Rail

    SYNC Serie

    DRS-24V50W1NZ

    Highlights & technische Merkmale
    • Ultra-compact size and galvanic isolation up to 3.0KVac between input to output and input to ground
    • Universal AC input voltage and full power from -10°C to +55°C operation
    • Up to 90.0% efficiency
    • Low earth leakage current < 0.5mA @ 264Vac
    • Built-in DC OK relay contact option available
    • Extreme low temperature cold start at -40°C
    • NEC Class 2 / Limited Power Source (LPS) certified
    • Certified according to IEC/EN/UL 62368-1


      Ausgangsspannung

      24V

      Ausgangsleistung

      50W

      Ausgangsstrom

      2.1A

      Eingangsspannungsbereich

      85-264Vac

      Abmessungen

      75 x 30 x 89.5 mm

      2.95” x 1.18” x 3.52”

      Gewicht

      0.18 kg (0.40 lb)

      Anwendungsbereiche
      Model Description
      DRS-24V50W1NR Without DC OK contact
      Tags
      NEC Class 2

      Download

      Download

      Datasheet

      Uploaded on 27-Dec-2021

      Manual

      Uploaded on 23-Sep-2021


      Uploaded on 05-Jun-2024

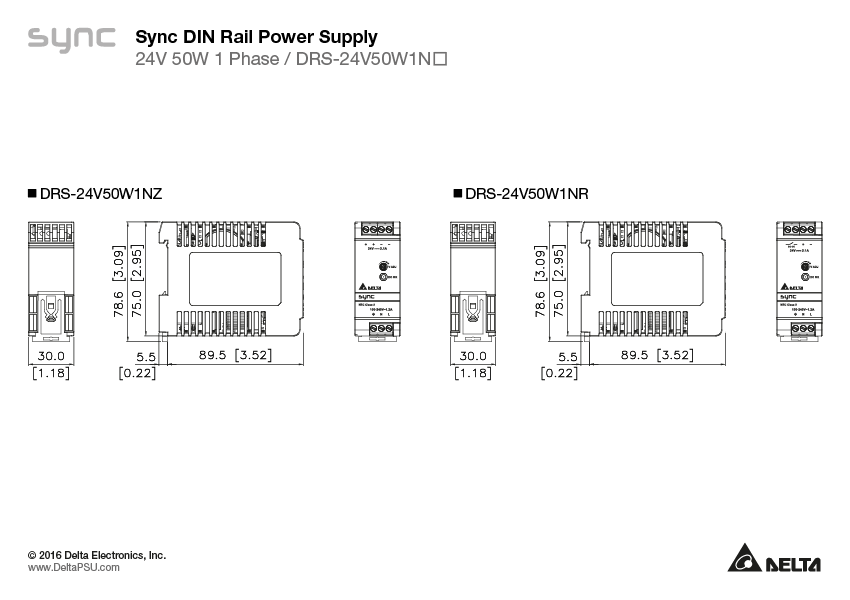

      Mechanical Drawing
