DRS-5V30W1NZ

DIN Rail

SYNC Serie

DRS-5V30W1NZ

Ausgangsspannung

5V

Ausgangsleistung

15W

Ausgangsstrom

3A

Eingangsspannungsbereich

85-264Vac

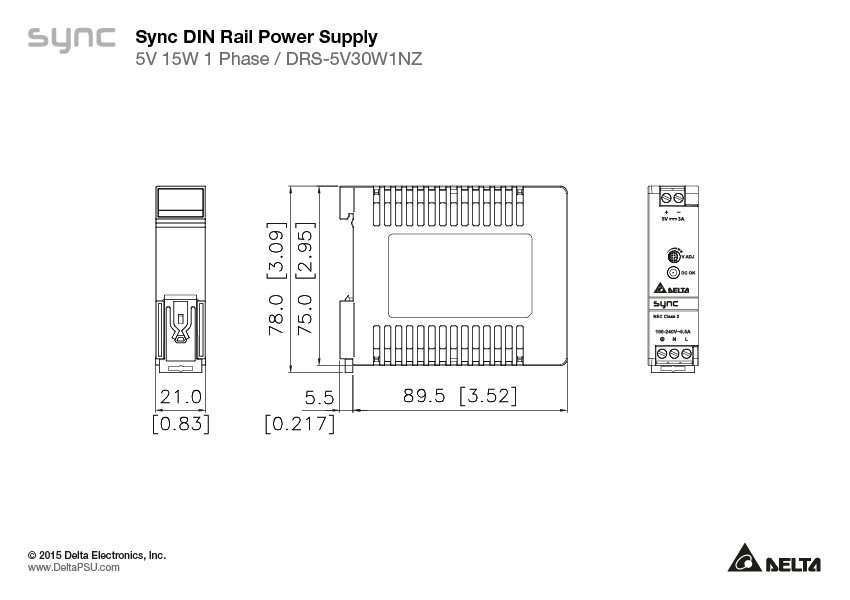

Abmessungen (H x W x D)

75 x 21 x 89.5 mm

2.95” x 0.83” x 3.52”

Gewicht

0.11 kg (0.24 lb)

Highlights & technische Merkmale
  • Ultra compact size
  • Full power from -10°C to +55°C operation
  • Universal AC input voltage
  • Up to 79.0% efficiency
  • Extreme low temperature cold start at -40°C
  • NEC Class 2 / Limited Power Source (LPS) certified
  • Overvoltage / Overcurrent / Over Temperature Protections
  • Certified according to IEC/EN/UL 62368-1
Tags
NEC Class 2
Anwendungsbereiche


DRS-5V30W1NZ
DRS-5V30W1NZ

DIN Rail

SYNC Serie

DRS-5V30W1NZ

Highlights & technische Merkmale
  • Ultra compact size
  • Full power from -10°C to +55°C operation
  • Universal AC input voltage
  • Up to 79.0% efficiency
  • Extreme low temperature cold start at -40°C
  • NEC Class 2 / Limited Power Source (LPS) certified
  • Overvoltage / Overcurrent / Over Temperature Protections
  • Certified according to IEC/EN/UL 62368-1
Ausgangsspannung

5V

Ausgangsleistung

15W

Ausgangsstrom

3A

Eingangsspannungsbereich

85-264Vac

Abmessungen

75 x 21 x 89.5 mm

2.95” x 0.83” x 3.52”

Gewicht

0.11 kg (0.24 lb)

Anwendungsbereiche
Tags
NEC Class 2

Download

Download

Datasheet

Uploaded on 22-Nov-2021

Manual

Uploaded on 23-Sep-2021


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

CB

Uploaded on 09-Apr-2024

CE

Uploaded on 09-Apr-2024

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Apr-2020

UKCA

Uploaded on 22-Nov-2021

UL

Uploaded on 09-Apr-2024
