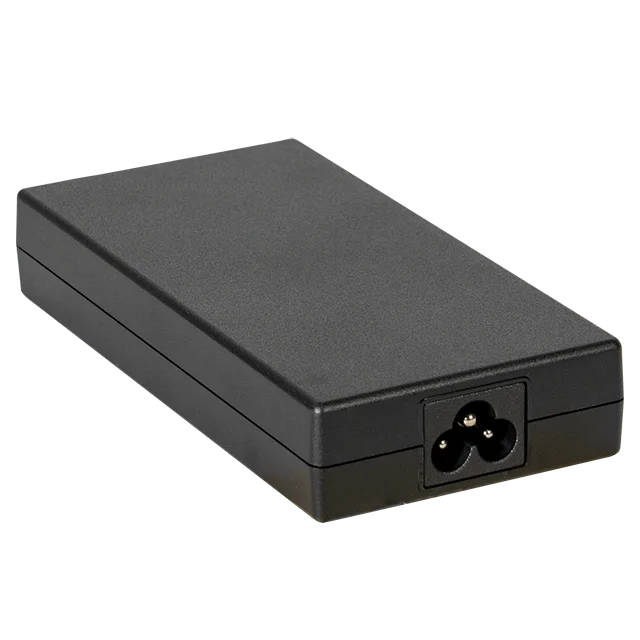

ADT-120A24AA

Adapter

ADT Series

ADT-120A24AA

Output Voltage

24V

Output Power

120W

Output Current

5A

Input Voltage Range

90-264Vac

Dimensions (L x W x H)

138 x 68.5 x 24.5 mm

5.43” x 2.70” x 0.96”

Unit Weight

0.34 kg (0.75 lb)

Highlights & Features
  • Meet Efficiency DOE Level VI & CoC Tier 2
  • No load power consumption < 0.15 W
  • Universal AC input / Full range
  • Fully enclosed plastic case
  • Protection: short circuit / over voltage / overload/ overtemperature
Tags
Applications


ADT-120A24AA
ADT-120A24AA
Enquiry

Adapter

ADT Series

ADT-120A24AA

Highlights & Features
  • Meet Efficiency DOE Level VI & CoC Tier 2
  • No load power consumption < 0.15 W
  • Universal AC input / Full range
  • Fully enclosed plastic case
  • Protection: short circuit / over voltage / overload/ overtemperature
Output Voltage

24V

Output Power

120W

Output Current

5A

Input Voltage Range

90-264Vac

Dimensions

138 x 68.5 x 24.5 mm

5.43” x 2.70” x 0.96”

Unit Weight

0.34 kg (0.75 lb)

Applications
Tags

Download

Download

Datasheet

Uploaded on 21-Dec-2020


Uploaded on 18-Aug-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

BSMI

Uploaded on 22-Apr-2020

CB

Uploaded on 22-Apr-2020

CCC

Uploaded on 22-Apr-2020

CE

Uploaded on 22-Apr-2020

KC

Uploaded on 22-Apr-2020

PSE

Uploaded on 22-Apr-2020

REACH

Uploaded on 12-Jan-2021

RoHS

Uploaded on 07-Jan-2021

UL

Uploaded on 22-Apr-2020

Tech Specs

Tech Specs

Output Current
5A
Output Voltage
24V
Output Voltage Range
Output Voltage Adjustment Range
-
Output Power
120W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
± 0.5%
Load Regulation
± 3%
PARD
0 to 40°C: 240 mV pk-pk
-10 to 0°C: 480 mV pk-pk
Start-up Time
1000 ms typ. @ 115Vac
500 ms typ. @ 230Vac
Hold-up Time
40ms @ 115Vac, full load
Dynamic Response (Overshoot & Undershoot O/P Voltage)
-
Start-up with Capacitive Loads
-
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
40ms @ nominal input, full load
Input Voltage
100-240Vac
Input Voltage Range
90-264Vac
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
1.85A @ 115Vac
1.0A @ 230Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
91.0% typ. @ 115Vac
92.0% typ. @ 230Vac
Max Inrush Current
-
Charging Time
-
Power Factor at 100% load
0.9 min. @ 230Vac
Leakage Current
250uA @ 240Vac/50Hz
Nominal Current
-
Total Harmonic Distortion
-
Max Power Dissipation
-
Case Chassis / Cover
PC
Indicator
N/A
Cooling System
Convection
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
-
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
-
Protection Structure
-
Unit Weight
0.34 kg (0.75 lb)
Dimensions
138 x 68.5 x 24.5 mm
5.43” x 2.70” x 0.96”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
-10°C to +60°C
Storage Temperature
-40°C to +85°C
Power De-rating
>40°C de-rated by 2.5%/°C
Operating Humidity
5%-95% RH (non-condensing)
Shock Test (Non-Operating)
50G, 11ms, 1 shock for each direction
Vibration (Non-Operating)
5-500Hz, 2.09Grms, 20mins, one cycle for each three axis
Storage Humidity
-
Operating Altitude
5,000 meters (16400 feet)
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Overvoltage
33V, Latch mode
Overload / Overcurrent
120-180% , Latch
Over Temperature
Latch Mode
Short Circuit
Latch Mode
Reverse Polarity Protection
-
Degree of Protection
-
Protection Against Shock
Class I
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
MTBF
> 300,000 hrs. per Telcordia SR-332
@ 115Vac, 100% load, Ta: 25°C
Expected Cap Life Time
5 years @ 100Vac,50% load, 25°C
Safety Certificate
-
Electrical Safety
IEC/UL/EN 60950-1 ; IEC/UL/EN 62368-1
BSMI CNS14336-1
CCC GB4943.1-2011
PSE J60950-1 (H29)
KC K60950-1
CE
Comply with EMC Directive 2014/30/EU and the Low Voltage
Directive 2014/35/EU
Medical Safety
-
Galvanic Isolation
I/P to O/P: 3000Vac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
RoHS Directive 2011/65/EU compliant
Isolation Resistance
-
PE Resistance
-
Emission
CISPR /EN 55032 Class B
BSMI CNS13438
GB/T9254-2008
KN32
Immunity
EN 55024; KN35
Harmonic Current Emissions
IEC61000-3-2: Class D ; GB17625.1-2003
Voltage Fluctuation and Flicker
IEC61000-3-3
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
