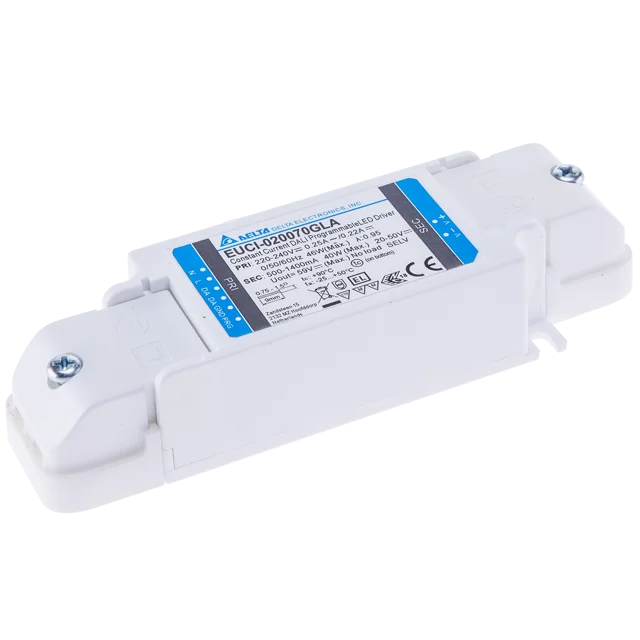

EUCI-020070GLA

LED Driver

EUCI MINI Series

EUCI-020070GLA

Output Voltage

24-54V

Output Power

20W

Output Current

0.7A

Input Voltage Range

198-264Vac

Dimensions (L x W x H)

147.0 x 43.0 x 30.0 mm

5.79” x 1.69” x 1.18”

Unit Weight

0.19 kg (0.42 lb)

Highlights & Features
  • Constant current design
  • Input voltage from 220-240Vac/ 176-280Vdc
  • Up to 86% efficiency
  • Built-in or independent type with clip-in strain-relief
  • Meets IEC/EN 61000-3-2, Class C
  • Output current adjustable by programming tool
  • DALI control and emergency lighting is available
  • IP20 assembly for indoor applications
Model Description
EUCI-020070GLAB Built-in type
Applications


EUCI-020070GLA
EUCI-020070GLA

LED Driver

EUCI MINI Series

EUCI-020070GLA

Highlights & Features
  • Constant current design
  • Input voltage from 220-240Vac/ 176-280Vdc
  • Up to 86% efficiency
  • Built-in or independent type with clip-in strain-relief
  • Meets IEC/EN 61000-3-2, Class C
  • Output current adjustable by programming tool
  • DALI control and emergency lighting is available
  • IP20 assembly for indoor applications
Output Voltage

24-54V

Output Power

20W

Output Current

0.7A

Input Voltage Range

198-264Vac

Dimensions

147.0 x 43.0 x 30.0 mm

5.79” x 1.69” x 1.18”

Unit Weight

0.19 kg (0.42 lb)

Applications
Model Description
EUCI-020070GLAB Built-in type

Download

Download

Datasheet

Uploaded on 24-Mar-2022


Uploaded on 06-Mar-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

CB

Uploaded on 22-Apr-2020

ENEC

Uploaded on 22-Apr-2020

RoHS

Uploaded on 11-Jun-2020

GUI Program

Uploaded on 31-Aug-2023

Tech Specs

Tech Specs

Output Current
0.7A
Output Voltage
24-54V
Output Voltage Range
24-54Vdc
Output Voltage Adjustment Range
-
Output Power
20W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
± 1%
Load Regulation
± 5%
PARD
-
Start-up Time
< 200ms @ 230Vac
Hold-up Time
-
Dynamic Response (Overshoot & Undershoot O/P Voltage)
-
Start-up with Capacitive Loads
-
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
< 100ms @ 230Vac
Power Boost Duration
-
Power Boost Recovery Time
-
Nominal Input Voltage
220-240Vac
Input Voltage Range
198-264Vac
Max Input Voltage
-
Nominal Input Frequency
50/60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
220-240Vdc
DC Input Voltage Range
176-280Vdc
Input Current
-
Input Power (Standby Mode)
-
Efficiency at 100% load
86% typ. @ 230Vac
Inrush Current
-
Charging Time
-
Power Factor at 100% load
> 0.95 @ 230Vac/50Hz
Leakage Current
< 0.7mA @ 230Vac
Nominal Current
-
Total Harmonic Distortion
< 15% @ 230Vac/50Hz at 100% load
Power Dissipation
-
Efficiency @ 10% load
-
Case Chassis / Cover
Plastic
Indicator
-
Cooling System
-
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
-
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
-
Protection Structure
-
Terminal
-
Unit Weight
0.19 kg (0.42 lb)
Dimensions
147.0 x 43.0 x 30.0 mm
5.79” x 1.69” x 1.18”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
-25°C to +50°C
Storage Temperature
-40°C to +85°C
Power De-rating
-
Operating Humidity
10 to 60% RH (Non-Condensing)
Shock Test (Non-Operating)
-
Vibration (Non-Operating)
-
Storage Humidity
-
Operating Altitude
-
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Overvoltage
Max. 60V, Auto-Recovery when the fault is removed
Overload / Overcurrent
-
Over Temperature
Auto-Recovery when the fault is removed
Short Circuit
Auto-Recovery when the fault is removed
Reverse Polarity Protection
-
Degree of Protection
-
Protection Against Shock
-
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
500,000 hrs.@ta: +50°C (as per Telcordia SR-332 , total failure rate less than 10% )
Expected Cap Life Time
50,000 hrs. at lifetime case temperature
Safety Certificate
-
Electrical Safety
Class II (Built-in type, without kits)
Class II, Independent lamp control gear (Independent type, with kits)
SELV
EL
CB scheme to IEC 61347-1, IEC 61347-2-13
ENEC to EN 61347-1, EN 61347-2-13
CE
In conformance with EMC Directive and Low Voltage Directive
Medical Safety
-
Galvanic Isolation
-
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
-
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
Compliance to EN 55015 Class B
Immunity
Compliance to EN 61547
Harmonic Current Emissions
IEC 61000-3-2, Class C (230Vac @ 100% load)
Voltage Fluctuation and Flicker
IEC 61000-3-3
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
