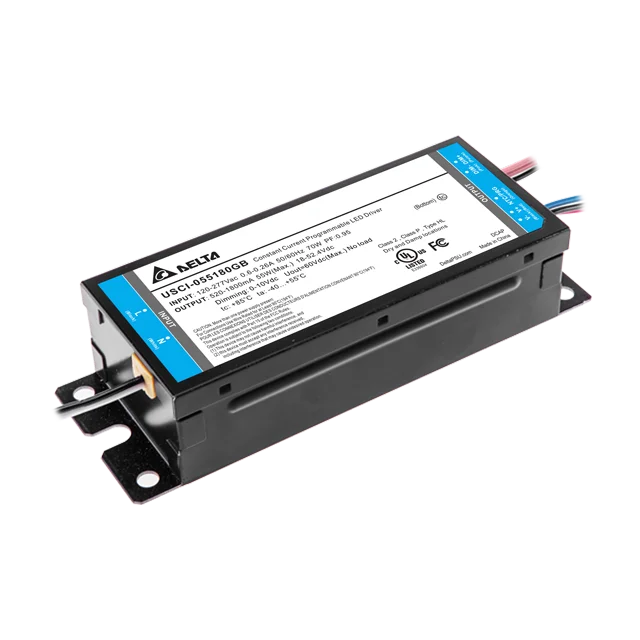

USCI-055180GB

Output Voltage

18-52.4V

Output Power

55W

Output Current

0.6-1.4A

Input Voltage Range

108-305 Vac

Dimensions (L x W x H)

167.5 x 60 x 37.5 mm

6.59” x 2.36” x 1.48”

Unit Weight

0.83 kg (1.83 lb)

Highlights & Features

Constant current design
Adjustable constant current level through program tool
6kV combi-wave surge rating meet ANSI C82.77-5
UL LISTED, Class P & Type HL , UL Dry & Damp
0-10V dimming available
50,000hours lifetime

Applications

Download

Datasheet

Uploaded on 12-Jan-2024


Uploaded on 08-Mar-2024

Mechanical Drawing

Uploaded on 01-Jun-2023

.STP

Uploaded on 01-Jun-2023

Certificates

FCC

Uploaded on 01-Jun-2023

GUI Software

GUI Program

Uploaded on 31-Aug-2023

Tech Specs

Output Current

0.6-1.4A

Output Voltage

18-52.4V

Output Voltage Range

18-52.4Vdc

Output Power

55W

Max Output Voltage

150Vdc

Line Regulation

± 1% (@ 120-277Vac input)

Load Regulation

± 3% (@ Min-Max output voltage)

Start-up Time

1000ms max. @ 120-277Vac @Full Load

Nominal Input Voltage

120-277 Vac

Input Voltage Range

108-305 Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

1.04 A @120Vac
0.43 A @277Vac

Efficiency at 100% load

88%@1.05A @120Vac
90.5%@1.05A @277Vac

Inrush Current

50A/150uS @120Vac
100A/150uS @277Vac

Power Factor at 100% load

> 0.9 @Full Load

Leakage Current

< 0.75mArms per UL8750

Total Harmonic Distortion

THD < 20% @Full Load

Case Chassis / Cover Steel
Indicator -
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) 24dBA (30cm distance)
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.83 kg (1.83 lb)	Dimensions 167.5 x 60 x 37.5 mm 6.59” x 2.36” x 1.48”

Operating Temperature

-40°C to +55°C

Storage Temperature

-40°C to +85°C

Operating Humidity

10 to 90% RH (Non-Condensing)

Storage Humidity

5 to 95% RH (Non-Condensing)

Overvoltage

60 Vrms. Auto-Recovery when the fault is removed

Overload / Overcurrent

Reduce output current. Auto-Recovery when the fault is removed

Over Temperature

Reduce output current. Auto-Recovery when the fault is removed

Short Circuit

Auto-Recovery when the fault is removed

Expected Cap Life Time

50,000 hours at case temp. tc & full load.

Electrical Safety

UL 8750, UL List, Class P, Class2

Emission

(CE & RE)
Compliance to 47 CFR FCC Part 15, Subpart B, Class A
Compliance to CAN ICES-005(A) / NMB-005(A)

Surge

Compliance to ANSI C82.77-5 CAT C low 6KV
