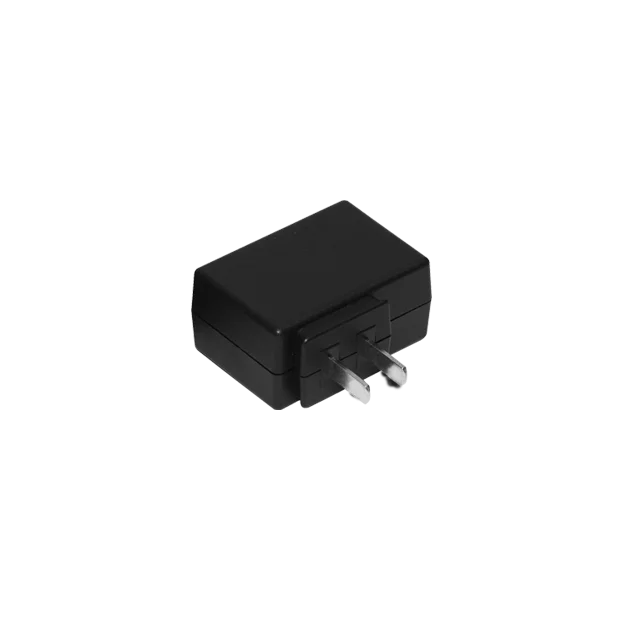

MDS-005AAS05 A

Adapter

MDS Adapter Series

MDS-005AAS05 A

Output Voltage

5V

Output Power

5W

Output Current

1A

Input Voltage Range

90-264Vac

Dimensions (L x W x H)

56.5 x 39.5 x 28 mm

2.22” x 1.56” x 1.10”

Unit Weight

0.10 kg (0.22 lb)

Highlights & Features
  • Safety Approvals to IEC 60601-1 & IEC 62368-1
  • Efficiency Level VI
  • Class B EMI and 4th Edition Immunity Compliant
  • IP22 Ingress Protection Rating
  • 1 Million Hours MTBF
  • IT & Medical Safety Approvals
Model Description
MDS-005AAS05 AV China Type with Barrel Type connector
MDS-005AAS05 AU China Type with Micro USB connector
Applications


MDS-005AAS05 A
MDS-005AAS05 A

Adapter

MDS Adapter Series

MDS-005AAS05 A

Highlights & Features
  • Safety Approvals to IEC 60601-1 & IEC 62368-1
  • Efficiency Level VI
  • Class B EMI and 4th Edition Immunity Compliant
  • IP22 Ingress Protection Rating
  • 1 Million Hours MTBF
  • IT & Medical Safety Approvals
Output Voltage

5V

Output Power

5W

Output Current

1A

Input Voltage Range

90-264Vac

Dimensions

56.5 x 39.5 x 28 mm

2.22” x 1.56” x 1.10”

Unit Weight

0.10 kg (0.22 lb)

Applications
Model Description
MDS-005AAS05 AV China Type with Barrel Type connector
MDS-005AAS05 AU China Type with Micro USB connector

Download

Download

Datasheet

Uploaded on 01-Dec-2023

Manual

Uploaded on 22-Nov-2023


Uploaded on 05-Jun-2024

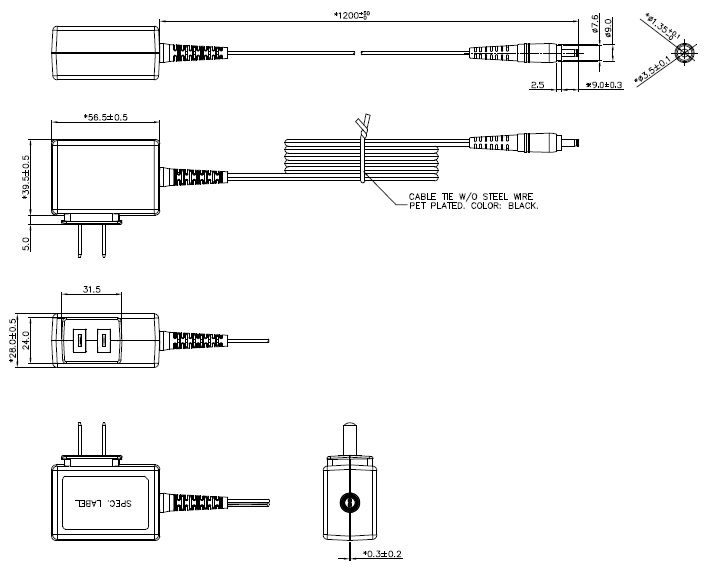

Mechanical Drawing

Uploaded on 22-Apr-2020

CB

Uploaded on 18-Oct-2023

CCC

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023
