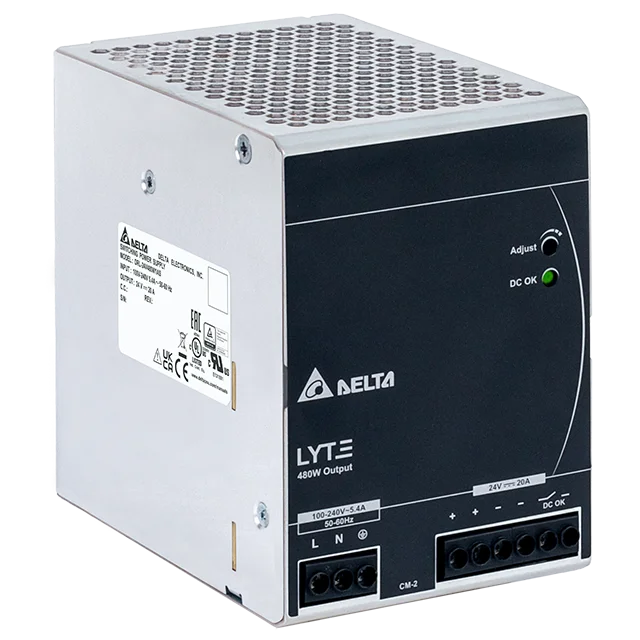

DRL-24V480W1AS

Download

Datasheet

Uploaded on 28-Feb-2022

Manual

Uploaded on 14-Dec-2020


Uploaded on 28-Feb-2022

Mechanical Drawing

Uploaded on 14-Dec-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 13-Sep-2022

CE & UKCA

Uploaded on 08-Jun-2021

REACH

Uploaded on 07-Sep-2023

RoHS

Uploaded on 07-Sep-2023

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 14-Dec-2020

GUI Software

Tech Specs

Output Current

20A

Output Voltage

24V

Output Voltage Adjustment Range

22-28Vdc

Output Power

480W

Line Regulation

< 0.5% (@ 85-264Vac, 100% load)

Load Regulation

< 1.5% (0-100% load)@ > -10°C to +70°C
< 2.0% ( 0-100% load) @ ≤ -10°C to -20°C

PARD

< 120mVpp @ > -10°C to +70°C
< 240mVpp @ ≤ -10°C to -20°C

Start-up Time

1000ms typ.@ 115Vac & 230Vac (100% load)

Hold-up Time

10ms typ.@ 115Vac (100% load)
16ms typ.@ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 10% (2400mVpp) @ 85-264Vac input, 0-50% load, 50-100% load (Slew Rate: 0.1A/μs)

Start-up with Capacitive Loads

8,000µF Max

Rise Time

100ms typ. @ nominal input (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

DC Input Voltage Range

120-375Vdc

Input Current

5.4A typ.@115Vac, 2.7A typ.@ 230Vac

Efficiency at 100% load

85% typ. @ 115Vac, 88% typ. @ 230Vac

Max Inrush Current

40A typ.@115Vac, 80A typ.@ 230Vac

Power Factor at 100% load

> 0.95 @ 115Vac & 230Vac

Leakage Current

< 1mA @ 264Vac

Max Power Dissipation

0% load: 5W @ 115Vac 4W @ 230Vac
100% load: 50W @ 115Vac 40W @ 230Vac

Case Chassis / Cover SGCC / Aluminium
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal 3 Pins (Rated 600V/35A)
Output Terminal 6 Pins (Rated 300V/28A)
Signal Terminal 6 Pins (Rated 300V/28A)
Noise Sound Pressure Level (SPL) < 25dBA
Input/Output Terminal -
Signal -
Mounting Rail Standard TS35 DIN Rail in accordance with EN 60715
Wire Input: AWG 16-12 Output: AWG 16-14 (2 pieces of wire), AWG 12 Signal: AWG 16-12
Protection Structure -
Terminal -
Unit Weight 1.30 kg (2.87 lb)	Dimensions 123.6 x 85.5 x 128.5 mm 4.87” x 3.37” x 5.06”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10Hz to 500Hz @ 19.6m/s² (2G peak); displacement of 0.35mm; 10 min per cycle, 60 min for all X, Y, Z direction

Shock Test (Operating)

IEC 60068-2-27, 27, Half Sine Wave: 4G for duration of 22ms; 3 time per direction, 9 times in total

Operating Temperature

-20°C to +70°C

Storage Temperature

-40°C to +85°C

Power De-rating

> 40°C de-rate power by 1.67% / °C @ 115Vac (90-229Vac)
> 50°C de-rate power by 2.5% / °C @ 230Vac (230-264Vac)
< 100Vac de-rate power by 1% / Vac

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 27, Half Sine Wave: 50G for duration of 22ms; 3 times per direction, 9 times in total

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz; 2.09Grms; 20 min per axis for all X, Y, Z directions

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Pollution Degree

Overvoltage

28.8V-35.2V, SELV Output, Latch Mode

Overload / Overcurrent

109-130% of rated load current, Continuous current

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Degree of Protection

IP20

Protection Against Shock

Class I with Primary Earth connection

MTBF

Telcordia SR-332: > 700,000 hrs
I/P: 100Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: : EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0KVac
Input to Ground: 2.0KVac
Output to Ground: 0.5KVac

Industrial Control Equipment

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E338991)

Safety Entry Low Voltage

SELV

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016

Emission

(CE & RE)
Generic Standards: EN/BS EN 61000-6-3, EN/BS EN 61000-6-4
CISPR 32, EN/BS EN 55032, EN/BS EN 55011, FCC Title 47: Class B; GB9254.1

Immunity

Generic Standards: EN/BS EN 61000-6-1, EN/BS EN 61000-6-2, EN/BS EN 55024

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A; GB17625.1

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Component Power Supply for General Use

EN/BS EN 61204-3
