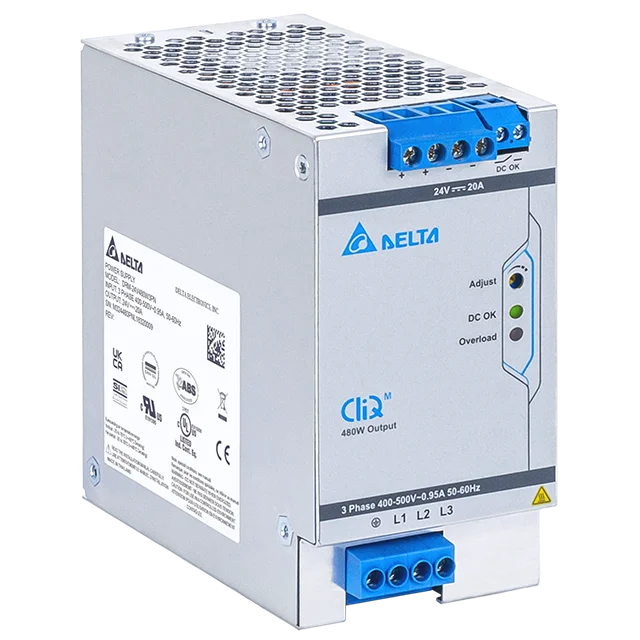

DRM-24V480W3PN

DIN Rail

CliQ M Series

DRM-24V480W3PN

Output Voltage

24V

Output Power

480W

Output Current

20A

Input Voltage Range

3 x 320-575Vac (3-Phase) or 2 x 380-575Vac (2-Phase)

Dimensions (L x W x D)

124 x 65 x 127.1 mm

4.88” x 2.56” x 5.00”

Unit Weight

1.18kg (2.60 lb)

Highlights & Features
  • Built-in constant current circuit for charging application
  • Full power from -25°C to +60°C @ 5,000m (16,400 ft.)
  • Power Boost of 150% up to 7 seconds
  • Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection
  • DNV GL and ABS approvals for maritime applications
  • Built-in DC OK Contact and LED indicator for DC OK/ Overload
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants
Tags
3 phase
Applications
DRM-24V480W3PN
DRM-24V480W3PN
Enquiry

DIN Rail

CliQ M Series

DRM-24V480W3PN

Highlights & Features
  • Built-in constant current circuit for charging application
  • Full power from -25°C to +60°C @ 5,000m (16,400 ft.)
  • Power Boost of 150% up to 7 seconds
  • Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection
  • DNV GL and ABS approvals for maritime applications
  • Built-in DC OK Contact and LED indicator for DC OK/ Overload
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants
Output Voltage

24V

Output Power

480W

Output Current

20A

Input Voltage Range

3 x 320-575Vac (3-Phase) or 2 x 380-575Vac (2-Phase)

Dimensions

124 x 65 x 127.1 mm

4.88” x 2.56” x 5.00”

Unit Weight

1.18kg (2.60 lb)

Applications
Tags
3 phase
