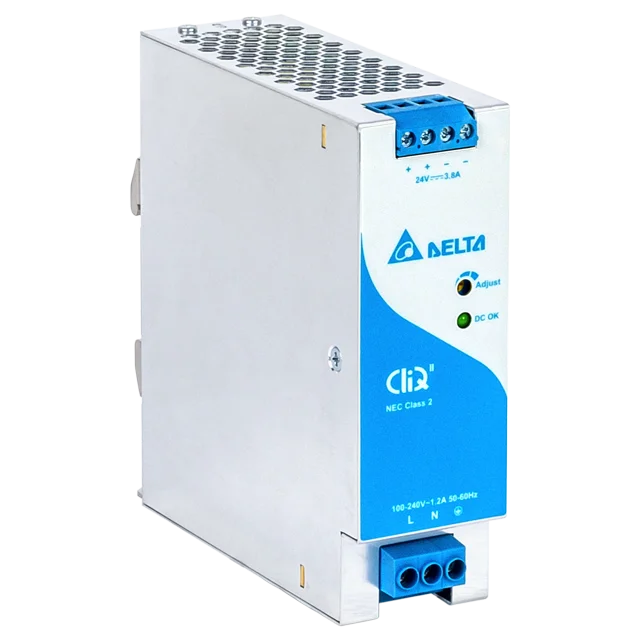

DRP-24V100W1NN

DIN Rail

CliQ II Series

DRP-24V100W1NN

Output Voltage

24V

Output Power

91W

Output Current

3.8A

Input Voltage Range

85-264Vac

Dimensions (H x W x D)

124 x 40 x 124 mm

4.88” x 1.57” x 4.88”

Unit Weight

0.60 kg (1.32 lb)

Highlights & Features
  • Universal AC input voltage range
  • Power will not de-rate for the entire input voltage range
  • UL 1310 safety approval
  • Built-in active PFC, PF > 0.99 @ 115Vac
  • Full corrosion resistant aluminium casing
  • NEC Class 2 and Limited Power Source (LPS) approvals
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants
  • Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections
  • Certified according to IEC/EN/UL 62368-1
Tags
NEC Class 2, Conformal Coating
Applications


DRP-24V100W1NN
DRP-24V100W1NN

DIN Rail

CliQ II Series

DRP-24V100W1NN

Highlights & Features
  • Universal AC input voltage range
  • Power will not de-rate for the entire input voltage range
  • UL 1310 safety approval
  • Built-in active PFC, PF > 0.99 @ 115Vac
  • Full corrosion resistant aluminium casing
  • NEC Class 2 and Limited Power Source (LPS) approvals
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants
  • Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections
  • Certified according to IEC/EN/UL 62368-1
Output Voltage

24V

Output Power

91W

Output Current

3.8A

Input Voltage Range

85-264Vac

Dimensions

124 x 40 x 124 mm

4.88” x 1.57” x 4.88”

Unit Weight

0.60 kg (1.32 lb)

Applications
Tags
NEC Class 2, Conformal Coating
