DRS-24V100W1NZ

DIN Rail

SYNC Series

DRS-24V100W1NZ

Output Voltage

24V

Output Power

91W

Output Current

3.8A

Input Voltage Range

85-264Vac

Dimensions (L x W x D)

75 x 45 x 100 mm

2.95” x 1.77” x 3.94”

Unit Weight

0.325 kg (0.72 lb)

Highlights & Features
  • Ultra-compact size and galvanic isolation up to 3.0KVac between input to output and input to ground
  • Universal AC input voltage and full power from -10°C to +55°C operation
  • Up to 89.0% efficiency and built-in active PFC
  • Low earth leakage current < 0.5mA @ 264Vac
  • Built-in DC OK relay contact option available
  • Extreme low temperature cold start at -40°C
  • NEC Class 2 / Limited Power Source (LPS) certified (DRS-24V100W1N☐)
  • Certified according to IEC/EN/UL 62368-1


Tags
DRS-24V100W1NR, NEC Class 2
Applications


DRS-24V100W1NZ
DRS-24V100W1NZ
Enquiry

DIN Rail

SYNC Series

DRS-24V100W1NZ

Highlights & Features
  • Ultra-compact size and galvanic isolation up to 3.0KVac between input to output and input to ground
  • Universal AC input voltage and full power from -10°C to +55°C operation
  • Up to 89.0% efficiency and built-in active PFC
  • Low earth leakage current < 0.5mA @ 264Vac
  • Built-in DC OK relay contact option available
  • Extreme low temperature cold start at -40°C
  • NEC Class 2 / Limited Power Source (LPS) certified (DRS-24V100W1N☐)
  • Certified according to IEC/EN/UL 62368-1


Output Voltage

24V

Output Power

91W

Output Current

3.8A

Input Voltage Range

85-264Vac

Dimensions

75 x 45 x 100 mm

2.95” x 1.77” x 3.94”

Unit Weight

0.325 kg (0.72 lb)

Applications
Tags
DRS-24V100W1NR, NEC Class 2

Download

Download

Datasheet

Uploaded on 09-Jun-2020

Manual

Uploaded on 29-Sep-2020


Uploaded on 20-May-2020

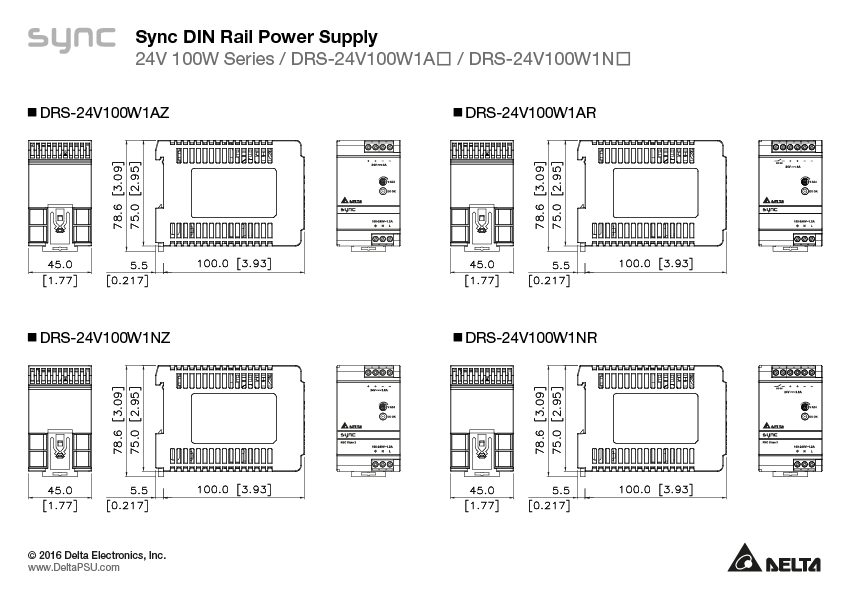

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

CB

Uploaded on 22-Apr-2020

CE

Uploaded on 22-Apr-2020

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 17-Jun-2020

RoHS

Uploaded on 17-Jun-2020

TUV

Uploaded on 22-Apr-2020

UL

Uploaded on 22-Apr-2020
