DRS-24V30W1AZ

DIN Rail

SYNC Series

DRS-24V30W1AZ

Output Voltage

24V

Output Power

30W

Output Current

1.25A

Input Voltage Range

85-264Vac

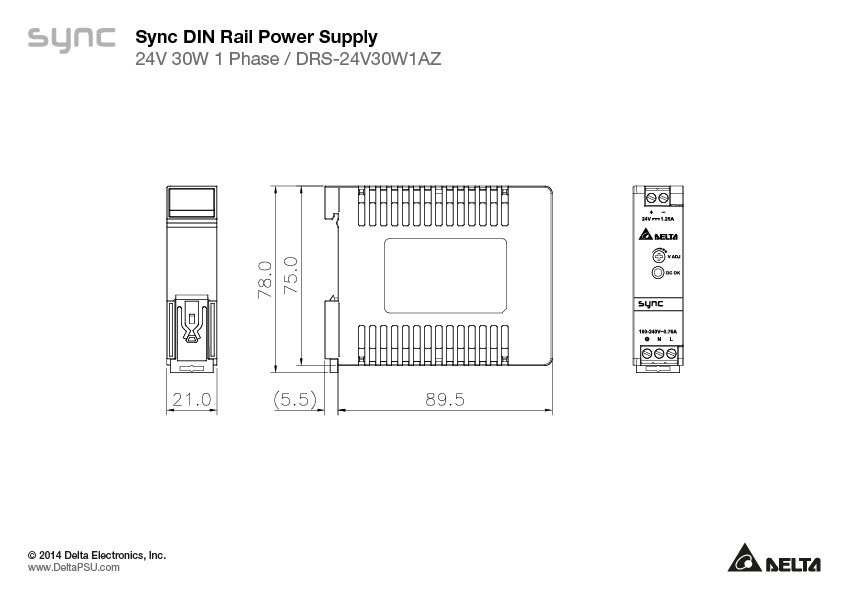

Dimensions (L x W x D)

75 x 21 x 89.5 mm

2.95” x 0.83” x 3.52”

Unit Weight

0.10 kg (0.22 lb)

Highlights & Features
  • Ultra compact size and galvanic isolation up to 3.0KVac between input to output
  • Universal AC input voltage and full power from -10°C to +55°C operation
  • Up to 88.0% efficiency
  • Low earth leakage current < 0.5mA @ 240Vac
  • NEC Class 2 / Limited Power Source (LPS) certified
  • Overvoltage / Overcurrent / Over Temperature Protections
  • Meet Surge Immunity IEC 61000-4-5, Level 4 (CM: 4kV, DM: 2kV)
Tags
NEC Class 2
Applications


DRS-24V30W1AZ
DRS-24V30W1AZ
Enquiry

DIN Rail

SYNC Series

DRS-24V30W1AZ

Highlights & Features
  • Ultra compact size and galvanic isolation up to 3.0KVac between input to output
  • Universal AC input voltage and full power from -10°C to +55°C operation
  • Up to 88.0% efficiency
  • Low earth leakage current < 0.5mA @ 240Vac
  • NEC Class 2 / Limited Power Source (LPS) certified
  • Overvoltage / Overcurrent / Over Temperature Protections
  • Meet Surge Immunity IEC 61000-4-5, Level 4 (CM: 4kV, DM: 2kV)
Output Voltage

24V

Output Power

30W

Output Current

1.25A

Input Voltage Range

85-264Vac

Dimensions

75 x 21 x 89.5 mm

2.95” x 0.83” x 3.52”

Unit Weight

0.10 kg (0.22 lb)

Applications
Tags
NEC Class 2
