5V
15W
3A
85-264Vac
75 x 21 x 89.5 mm
2.95” x 0.83” x 3.52”
0.11 kg (0.24 lb)
5V
15W
3A
85-264Vac
75 x 21 x 89.5 mm
2.95” x 0.83” x 3.52”
0.11 kg (0.24 lb)
Output Current
3A
|
Output Voltage
5V
|
Output Voltage Range
|
Output Voltage Adjustment Range
5.0-5.5Vdc
|
Output Power
15W
|
Output Current Adjustment Range
|
Max Output Voltage
|
Buffering Time
-
|
Line Regulation
< 0.5% (@ 85-264Vac, 100% load)
|
Load Regulation
< 1.0% (@ 85-264Vac, 0-100% load)
|
PARD
< 75mVpp @ > 0°C to 70°C
< 150mVpp @ 0°C to -20°C |
Start-up Time
< 2,000ms @ 115Vac (100% load)
< 1,000ms @ 230Vac (100% load) |
Hold-up Time
> 20ms @ 115Vac (100% load)
> 100ms @ 230Vac (100% load) |
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 5% @ 85-264Vac input, 5-100% load (Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 1KHz)
|
Start-up with Capacitive Loads
3,000μF Max
|
Remote ON/OFF
-
|
Protective Device
-
|
Voltage Drop Between Input and Output
-
|
Residual Ripple/PARD (20MHz)
-
|
Residual Ripple
-
|
Max. Power
-
|
Ripple & Noise
-
|
LED System Voltage Range in CC Mode
-
|
Rise Time
-
|
Power Boost Duration
-
|
Power Boost Recovery Time
-
|
Nominal Input Voltage
100-240Vac
|
Input Voltage Range
85-264Vac
|
Max Input Voltage
-
|
Nominal Input Frequency
50-60Hz
|
Input Frequency Range
47-63Hz
|
Nominal DC Input Voltage
|
DC Input Voltage Range
120-375Vdc
|
Input Current
< 0.40A @ 115Vac, < 0.20A @ 230Vac
|
Input Power (Standby Mode)
-
|
Efficiency at 100% load
> 79.0% @ 115Vac & 230Vac
|
Max Inrush Current
< 20A @ 115Vac, < 40A @ 230Vac
|
Charging Time
-
|
Power Factor at 100% load
-
|
Leakage Current
IEC/EN 60950-1: < 0.5mA @ 264Vac
IEC/EN 62368-1: < 1.0mA @ 264Vac |
Nominal Current
-
|
Total Harmonic Distortion
-
|
Max Power Dissipation
-
|
Case Chassis / Cover
Plastic
|
|
Indicator
-
|
|
Cooling System
Convection
|
|
Input Terminal
-
|
|
Output Terminal
-
|
|
Signal Terminal
-
|
|
Noise Sound Pressure Level (SPL)
-
|
|
Input/Output Terminal
-
|
|
Signal
-
|
|
Mounting Rail
-
|
|
Wire
-
|
|
Protection Structure
-
|
|
Terminal
-
|
|
Unit Weight
0.11 kg (0.24 lb)
|

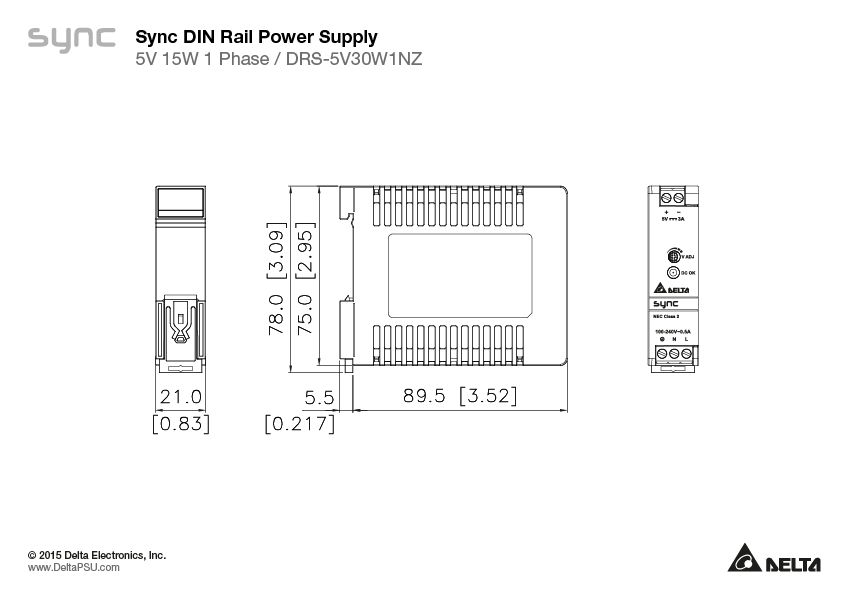

Dimensions
75 x 21 x
89.5 mm
2.95” x 0.83” x 3.52” |
Vibration (Operating)
IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 1 octave per min; 60 min per axis for all X, Y, Z directions
|
Shock Test (Operating)
IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms;
1 time in X axis |
Operating Temperature
-20°C to +70°C (Cold start at -40°C @ 40% load)
|
Storage Temperature
-40°C to +85°C
|
Power De-rating
-10°C to -20°C de-rate power by 2% / °C
> 55°C de-rate power by 3.33% / °C |
Operating Humidity
5 to 95% RH (Non-Condensing)
|
Shock Test (Non-Operating)
IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms;
3 times per direction, 9 times in total |
Vibration (Non-Operating)
IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions
|
Storage Humidity
-
|
Operating Altitude
-
|
Pollution Degree
-
|
Bump Test (Operating)
-
|
Over Voltage Category
-
|
Overvoltage
< 7.245V, SELV Output, Latch Mode
|
Overload / Overcurrent
105~140% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)
|
Over Temperature
< 75°C Surrounding Air Temperature @ 100% load, Latch Mode
|
Short Circuit
Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)
|
Reverse Polarity Protection
-
|
Degree of Protection
IP20
|
Protection Against Shock
Class I with PE connection
|
Input Polarity Protection
-
|
Battery Polarity Protection
-
|
Wrong Battery Voltage Protection
-
|
Deep Discharge Protection
-
|
Overload
-
|
Overcurrent
-
|
Internal Fuse
-
|
Insufficient Input Voltage Protection
-
|
MTBF
> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac & 230Vac, O/P: 100% load, Ta: 25°C |
Expected Cap Life Time
-
|
Safety Certificate
-
|
Electrical Safety
TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1, UL 62368-1, CSA C22.2 No. 60950-1 (File No. E191395) CB Scheme: IEC 60950-1, IEC 62368-1, Limited Power Source (LPS) |
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
|
Medical Safety
-
|
Galvanic Isolation
Input to Output: 3.0 KVac
Input to Ground: 3.0 KVac Output to Ground: 0.5 KVac |
Industrial Control Equipment
UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315335)
|
Hazardous Location / ATEX
-
|
II 3 G ATEX 2014/34/EU
-
|
Electrical Equipments of Machines
-
|
Electrical Equipment for Use in Electrical Power Installations
-
|
Safety Entry Low Voltage
SELV (IEC 60950)
|
Maritime
-
|
Material and Parts
-
|
Isolation Resistance
-
|
PE Resistance
-
|
UKCA
In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091 |
Certificates for Other Countries
-
|
BIS
-
|
KC
-
|
Emission
Generic Standards: EN/BS EN 61000-6-3, EN/BS EN 61000-6-4, CISPR 32,
EN/BS EN 55032, EN/BS EN 55011, FCC Title 47: Class B |
Immunity
Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-1, EN/BS EN 61000-6-2
|
Harmonic Current Emissions
IEC/EN/BS EN 61000-3-2, Class A
|
Voltage Fluctuation and Flicker
IEC/EN/BS EN 61000-3-3
|
ESD Immunity
-
|
Radiated Immunity
-
|
EFT
-
|
Surge
-
|
Conducted Immunity
-
|
Magnetic Field
-
|
Voltage Dips
-
|
Component Power Supply for General Use
EN 61204-3
|
