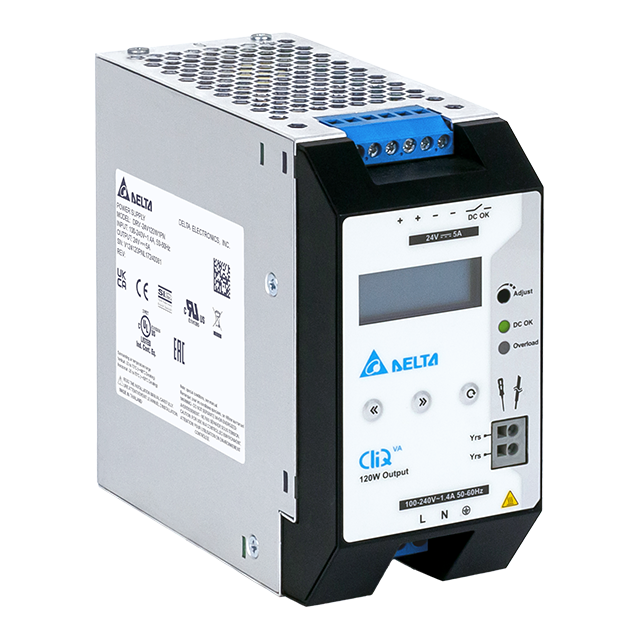

DRV-24V120W1PN

DIN Rail

CliQ VA Series

DRV-24V120W1PN

Output Voltage

24V

Output Power

120W

Output Current

5A

Input Voltage Range

85-264Vac

Dimensions (H x W x D)

124 x 60 x 139 mm

4.88” x 2.36” x 5.47”

Unit Weight

0.75 kg (1.65 lb)

Highlights & Features
  • Universal AC input voltage range
  • LCD display monitoring the output current / voltage / peak current and temperature
  • Life time expectancy alarm signal and monitoring
  • Built-in active PFC with up to 94% efficiency
  • Power Boost of 150% up to 7 seconds
  • Advanced Power Boost (APB)
  • DC OK Contact and LED indicator for DC OK/ Overload
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants
  • Certified according to IEC/EN/UL 62368-1
Tags
Conformal Coating, LCD Display
Applications


DRV-24V120W1PN
DRV-24V120W1PN

DIN Rail

CliQ VA Series

DRV-24V120W1PN

Highlights & Features
  • Universal AC input voltage range
  • LCD display monitoring the output current / voltage / peak current and temperature
  • Life time expectancy alarm signal and monitoring
  • Built-in active PFC with up to 94% efficiency
  • Power Boost of 150% up to 7 seconds
  • Advanced Power Boost (APB)
  • DC OK Contact and LED indicator for DC OK/ Overload
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants
  • Certified according to IEC/EN/UL 62368-1
Output Voltage

24V

Output Power

120W

Output Current

5A

Input Voltage Range

85-264Vac

Dimensions

124 x 60 x 139 mm

4.88” x 2.36” x 5.47”

Unit Weight

0.75 kg (1.65 lb)

Applications
Tags
Conformal Coating, LCD Display

Download

Download

Datasheet

Uploaded on 14-Dec-2021

Manual

Uploaded on 24-Dec-2020


Uploaded on 28-Feb-2023

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

CB

Uploaded on 24-Dec-2020

CE

Uploaded on 24-Dec-2020

EAC

Uploaded on 24-Dec-2020

REACH

Uploaded on 17-Mar-2023

RoHS

Uploaded on 28-Sep-2022

SIQ

Uploaded on 24-Dec-2020

UKCA

Uploaded on 14-Dec-2021

UL

Uploaded on 24-Dec-2020

Tech Specs

Tech Specs

Output Current
5A
Output Voltage
24V
Output Voltage Range
Output Voltage Adjustment Range
24-28Vdc
Output Power
120W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
20mV Max. (@ 85-264Vac input, 100% load)
Load Regulation
100mV Max. (@ 85-264Vac input, 0-100% load)
PARD
50mVpp Max.
Start-up Time
750ms Max. @ 100Vac & 120Vac & 230Vac
Hold-up Time
70ms Typ. @ 100Vac & 120Vac & 230Vac (100% load)
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 5% @ 0-100% load
Slew rate 0.1A/µs (@ 5Hz, 50Hz & 1kHz, 50% Duty Cycle)
Start-up with Capacitive Loads
10,000µF Max.
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
20ms Max. @ 100Vac & 120Vac & 230Vac (0µF, 24V, 5A)
50ms Max. @ 100Vac & 120Vac & 230Vac (5,000µF, 24V, 5A)
Power Boost Duration
5 seconds Typ.
7 seconds Max.
Power Boost Recovery Time
14 seconds Typ.
Nominal Input Voltage
100-240Vac
Input Voltage Range
85-264Vac
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
110-300Vdc
DC Input Voltage Range
88-375Vdc
Input Current
1.34A Typ. @ 100Vac, 1.11A Typ. @ 120Vac, 0.61A Typ. @ 230Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
89.67% Typ. @ 100Vac, 90.62% Typ. @ 120Vac, 91.42% Typ. @ 230Vac
Max Inrush Current
15.0A Max. @ 100Vac & 120Vac & 230Vac
Charging Time
-
Power Factor at 100% load
0.99 Typ. @ 100Vac, 0.99 Typ. @ 120Vac, 0.93 Typ. @ 230Vac
Leakage Current
(Enclosure to Neutral)
< 0.18mA / 0.46mA @ 110Vac, 50Hz, TN/TT system / IT system
< 0.22mA / 0.54mA @ 132Vac, 50Hz, TN/TT system / IT system
< 0.45mA / 1.08mA @ 264Vac, 50Hz, TN/TT system / IT system
Nominal Current
-
Total Harmonic Distortion
-
Max Power Dissipation
0% load:
3.70W Typ. @ 100Vac, 3.36W Typ. @ 120Vac, 2.70W Typ. @ 230Vac
3.80W Max. @ 100Vac, 3.90W Max. @ 120Vac, 4.30W Max. @ 230Vac

100% load:
13.85W Typ. @ 100Vac, 12.45W Typ. @ 120Vac, 11.27W Typ. @ 230Vac
14.00W Max. @ 100Vac, 12.90W Max. @ 120Vac, 11.60W Max. @ 230Vac
Efficiency @ 10% load
-
Case Chassis / Cover
Aluminium and Plastic / Aluminium
Indicator
Green LED (DC OK) and Red LED (Overload)
Cooling System
Convection
Input Terminal
3 Pins (Rated 600V/35A)
Output Terminal
6 Pins (Rated 300V/28A)
Signal Terminal
2 Pins (Rated 300V/10A)
Noise Sound Pressure Level (SPL)
< 25dBA
Input/Output Terminal
-
Signal
-
Mounting Rail
Standard TS35 DIN Rail in accordance with EN 60715
Wire
Input: AWG 18-8
Output: AWG: 18-12
Signal: AWG 20-16
Protection Structure
-
Terminal
-
Unit Weight
0.75 kg (1.65 lb)
Dimensions
124 x 60 x 139 mm
4.88” x 2.36” x 5.47”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
-25°C to +70°C
Storage Temperature
-40°C to +85°C
Power De-rating
Vertical Mounting: > 60°C de-rate power by 2.5% / °C
Horizontal Mounting: > 50°C de-rate power by 2.5% / °C
Operating Humidity
5 to 95% RH (Non-Condensing)
Shock Test (Non-Operating)
IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total
Vibration (Non-Operating)
IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions
Storage Humidity
-
Operating Altitude
0 to 5,000 Meters (16,400 ft.)
Pollution Degree
2
Bump Test (Operating)
IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total
Over Voltage Category
III
According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part)
Corrosion
-
Overvoltage
28.8 – 35.2V, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)
Overload / Overcurrent
> 150% of rated load current, Constant current, Hiccup Mode (Auto-Recovery)
Over Temperature
< 80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)
Short Circuit
Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
Reverse Polarity Protection
-
Degree of Protection
IP20
Protection Against Shock
Class I with Primary Earth connection
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
1,444,000 hrs. (I/P: 100Vac, O/P: 24V, 5A, Ta: 25°C)
801,000 hrs. (I/P: 100Vac, O/P: 24V, 5A, Ta: 40°C)
Expected Cap Life Time
131,400 hrs. @ 100Vac & 230Vac (O/P: 24V, 5A, Ta: 25°C)
92,230 hrs. @ 100Vac (O/P: 24V, 5A, Ta: 40°C)
98,540 hrs. @ 230Vac (O/P: 24V, 5A, Ta: 40°C)
131,400 hrs. @ 100Vac & 230Vac (O/P: 24V, 2.5A, Ta: 40°C)
Safety Certificate
-
Electrical Safety
SIQ Bauart: EN 62368-1, EN 61010-1, EN 61010-2-201
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1, IEC 61010-1, IEC 61010-2-201
UKCA: IEC 62368-1, IEC 61010-1, IEC 61010-2-201
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
Medical Safety
-
Galvanic Isolation
Input / Output: 3.0 KVac
Input / PE: 2.0 KVac
Input / DC OK relay contact: 3.0 KVac (Recommend to connect DC OK pins together with output pins)
Output / PE: 1.5 KVac
Output / DC OK relay contact: 0.5 KVac
DC OK relay contact / PE: 1.5 KVac
Industrial Control Equipment
UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
EN/BS EN 60204-1 (over voltage category III)
Electrical Equipment for Use in Electrical Power Installations
IEC/EN/BS EN 62477-1 / IEC 62103
Safety Entry Low Voltage
SELV (IEC 60950-1)
Maritime
-
Material and Parts
-
Isolation Resistance
> 5 MOhm (Input to Output, 500 Vdc)
PE Resistance
< 0.1 Ohm
UKCA
In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
(CE & RE)
Generic Standards: EN/BS EN 61000-6-3 CISPR 32, EN/BS EN 55032, CISPR 11, EN/BS EN 55011, FCC Title 47: Class B
Immunity
Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2
Harmonic Current Emissions
IEC/EN/BS EN 61000-3-2, Class A
Voltage Fluctuation and Flicker
IEC/EN/BS EN 61000-3-3
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
EN/BS EN 61204-3
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
