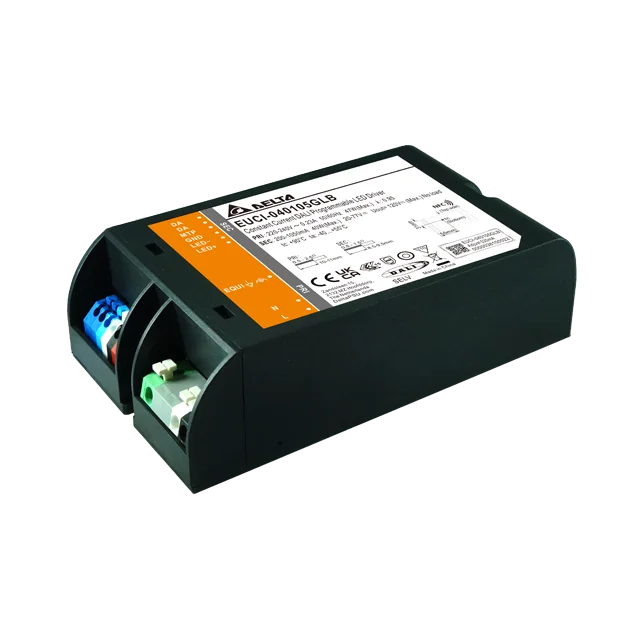

EUCI-040105GLB

LED Driver

EUCI LITE Series

EUCI-040105GLB

Output Voltage

20-77V

Output Power

40W

Output Current

0.2-1.05A

Input Voltage Range

198-264Vac

Dimensions (L x W x H)

133 x 77 x 40 mm

5.24” x 3.03” x 1.57”

Unit Weight

0.55 kg (1.21 lb)

Highlights & Features
  • DALI-2 certified LED driver, 5%-100 % dimming range
  • Flexible configurable operating windows (AOC) via NFC, DALI
  • Robustness protection against vibration, harsh operating temperature and moisture
  • Autonomous dimming includes three “Smart Timer Dim” operation modes with five independent levels: Fixed Timer, Midnight Centric Timer, and Ratio Rescale Timer
  • Override function is used to force the output dimming to maximum in any of Smart Timer Dim modes at any given time when AC mains are shorted to DALI port
  • High Efficiency (Up to 90%)
  • High surge immunity
  • Design and fix for luminaires of protection class I and protection class II
Applications
EUCI-040105GLB
EUCI-040105GLB

LED Driver

EUCI LITE Series

EUCI-040105GLB

Highlights & Features
  • DALI-2 certified LED driver, 5%-100 % dimming range
  • Flexible configurable operating windows (AOC) via NFC, DALI
  • Robustness protection against vibration, harsh operating temperature and moisture
  • Autonomous dimming includes three “Smart Timer Dim” operation modes with five independent levels: Fixed Timer, Midnight Centric Timer, and Ratio Rescale Timer
  • Override function is used to force the output dimming to maximum in any of Smart Timer Dim modes at any given time when AC mains are shorted to DALI port
  • High Efficiency (Up to 90%)
  • High surge immunity
  • Design and fix for luminaires of protection class I and protection class II
Output Voltage

20-77V

Output Power

40W

Output Current

0.2-1.05A

Input Voltage Range

198-264Vac

Dimensions

133 x 77 x 40 mm

5.24” x 3.03” x 1.57”

Unit Weight

0.55 kg (1.21 lb)

Applications

Download

Download

Datasheet

Uploaded on 12-Jul-2023


Uploaded on 05-Jun-2024

.DXF

Uploaded on 15-May-2023

.STP

Uploaded on 15-May-2023

CB

Uploaded on 24-Nov-2021

CE & UKCA

Uploaded on 15-May-2023

ENEC

Uploaded on 24-Nov-2021

GUI Program

Uploaded on 08-Oct-2024

Tech Specs

Tech Specs
