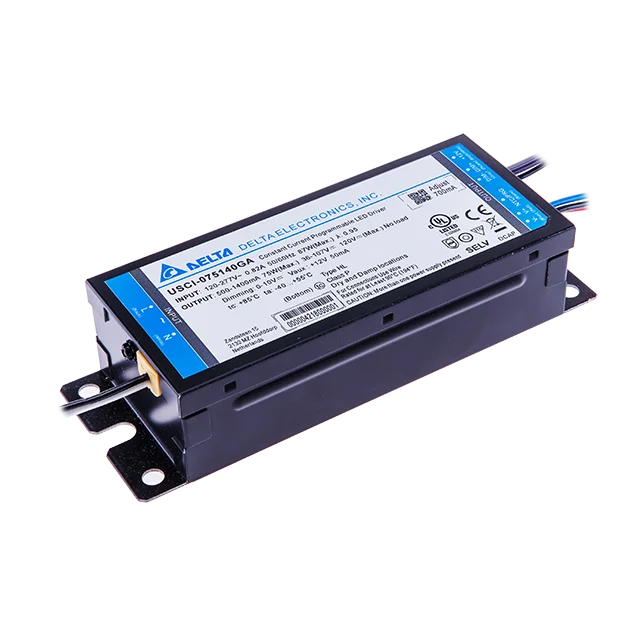

USCI-075140GA

LED Driver

USCI PRO Series

USCI-075140GA

Output Voltage

36-107V

Output Power

75W

Output Current

0.5-1.4A

Input Voltage Range

108-305Vac

Dimensions (L x W x H)

167.5 x 60.0 x 37.5 mm

6.59” x 2.36” x 1.48”

Unit Weight

0.9 kg (1.98 lb)

Highlights & Features
  • Constant current design
  • Universal AC input voltage from 108-305Vac
  • High efficiency up to 94%
  • Wide operating temperature range -40oC ~ +55oC
  • Built-in Active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class C
  • Adjustable constant current level through program tool
  • Common mode 6kV and differential mode 6kV surge immunity
  • Suitable for Dry / Damp location
  • 5 years warranty
  • UL LISTED, Class P & Type HL
Applications


USCI-075140GA
USCI-075140GA

LED Driver

USCI PRO Series

USCI-075140GA

Highlights & Features
  • Constant current design
  • Universal AC input voltage from 108-305Vac
  • High efficiency up to 94%
  • Wide operating temperature range -40oC ~ +55oC
  • Built-in Active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class C
  • Adjustable constant current level through program tool
  • Common mode 6kV and differential mode 6kV surge immunity
  • Suitable for Dry / Damp location
  • 5 years warranty
  • UL LISTED, Class P & Type HL
Output Voltage

36-107V

Output Power

75W

Output Current

0.5-1.4A

Input Voltage Range

108-305Vac

Dimensions

167.5 x 60.0 x 37.5 mm

6.59” x 2.36” x 1.48”

Unit Weight

0.9 kg (1.98 lb)

Applications

Download

Download

Datasheet

Uploaded on 25-Mar-2022


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

CB

Uploaded on 22-Apr-2020

CE

Uploaded on 22-Apr-2020

REACH

Uploaded on 22-Apr-2020

RoHS

Uploaded on 22-Apr-2020

UL

Uploaded on 22-Apr-2020

GUI Program

Uploaded on 08-Oct-2024
