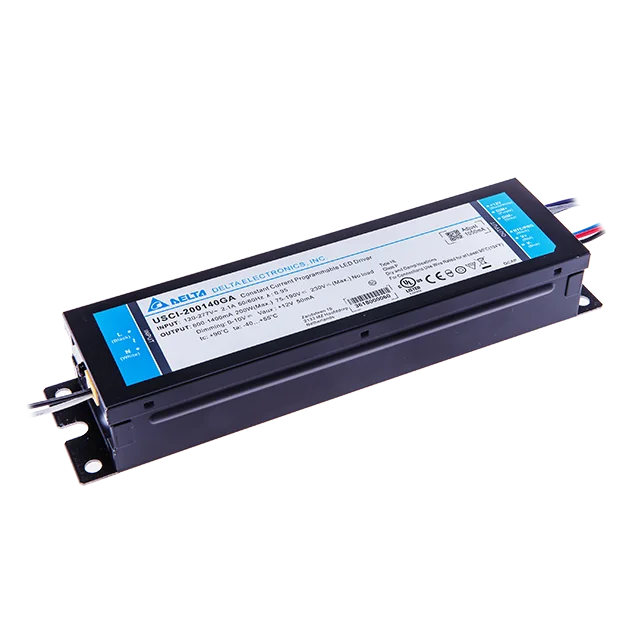

Delta USCI-200175GA 56-133V 200W 1.5-1.75A LED Driver USCI PRO Series

Download

Datasheet

Uploaded on 25-Mar-2022


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 02-Jun-2020

.STP

Uploaded on 02-Jun-2020

Certificates

Uploaded on 02-Jun-2020

RoHS

Uploaded on 10-Dec-2021

Uploaded on 02-Jun-2020

GUI Software

GUI Program

Uploaded on 08-Oct-2024

Tech Specs

Output Current

1.5-1.75A

Output Voltage

56-133V

Output Voltage Range

56-133Vdc

Output Power

200W

Max Output Voltage

160Vdc

Line Regulation

± 1% (@ 120-277Vac input) / ± 3% (@ Min-Max output voltage)

Load Regulation

± 1% (@ 120-277Vac input) / ± 3% (@ Min-Max output voltage)

Start-up Time

500ms max. @ 120-277Vac (full load) , (1000ms max for USCI-200175GLA)

Hold-up Time

16ms typ. @ 120-277Vac (full load)

Nominal Input Voltage

120-277Vac

Input Voltage Range

108-305Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-64Hz

Input Current

2.1A

Input Power (Standby Mode)

<0.5W @ Dim to off & 230Vac

Efficiency at 100% load

120Vac: 92% @ 1.5A
230Vac: 93.5% @1.5A
277Vac: 93.5% @1.5A

Inrush Current

200A/250uS

Power Factor at 100% load

Full Load: PF>0.98@120Vac, PF>0.95@230Vac, PF>0.92@277Vac >70% Load: PF>0.92@220Vac

Leakage Current

<0.7mA peak @ 277Vac

Total Harmonic Distortion

THD<20% with load≧50% at 120/230Vac input and load≧75% at 277Vac input

Case Chassis / Cover Steel case
Indicator -
Cooling System -
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 24dbA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 1.1 kg (2.43 lb)	Dimensions 240.5 x 60 x 38 mm 9.47” x 2.36” x 1.50”

Operating Temperature

-40°C to +65°C

Storage Temperature

-40°C to +85°C

Power De-rating

+55deg for full load and +65deg for de-rating

Operating Humidity

10 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09G); 20 min per axis for all X, Y, Z direction

Storage Humidity

5 to 95% RH (Non-Condensing)

Overvoltage

56-133Vdc
Auto-Recovery when the fault is removed

Overload / Overcurrent

Reduce output current. Auto-Recovery when the fault is removed

Over Temperature

Reduce output current. Auto-Recovery when the fault is removed

Short Circuit

Auto-Recovery when the fault is removed

MTBF

500 khours at +45°C ambient temperature, Telcordia SR-332.

Expected Cap Life Time

50,000 hours at case temp. tc= +75°C & full load. Refer to “LIFETIME VS CASE TEMPERATURE” or “LIFETIME VS AMBIENT TEMPERATURE”

Safety Certificate

CB scheme to IEC 61347-1, IEC 61347-2-13 (Built-in)
EN 61347-1, EN 61347-2-13
UL/cUL (cRUus) to UL 8750
Compliance to IEC/EN/UL 60950-1
SELV for 75W
UL LISTED, Class P & Type HL

In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC

Emission

Compliance to EN 55015:2013 Class B; 47 CFR FCC Part 15, Subpart B, Class B

Immunity

Compliance to EN 61547:2009

Harmonic Current Emissions

Class C (230Vac @ ≥ 50% load)

ESD Immunity

ESD, Criteria A or B Air Discharge: 8kV Contact Discharge: 4kV

Radiated Immunity

RS, Criteria A1 80MHz-1GHz, 3V/m with 1kHz Sine Wave / 80% AM Modulation

EFT

EFT, Criteria A1 or B2 1kV

Surge

Criteria A or B Common Mode: 6kV; Differential Mode: 6kV,1.2/50μs, 8/20μs Combination Wave with 2ohms (L-N), 12ohms (L-PE & N-PE) source impedance

Conducted Immunity

CS, Criteria A1 150kHz-80MHz, 3Vrms

Magnetic Field

PFMF, Criteria A 3A/Meter

Voltage Dips

Criteria A or B ; 100% dip; 0.5 cycle; Self Recoverable 30% dip; 10 cycle; Self Recoverable
