MDS-400AUS24 BA

Open Frame

MDS Open Frame Series

MDS-400AUS24 BA

Output Voltage

24V

Output Power

400W

Output Current

16.67A

Input Voltage Range

90-264Vac

Dimensions (L x W x H)

198 x 97 x 41.5 mm

7.80” x 3.82” x 1.63”

Unit Weight

0.91 kg (2.01 lb)

Highlights & Features
  • Safety Approvals to IEC 60601-1 & IEC 62368-1
  • Risk management report available
  • Low touch current (<0.1 mA Normal & <0.3 mA single fault)
  • Over-Voltage/Load/Temperature & Short Circuit protections
  • 2 Million Hours MTBF
  • 2 x MOPP (means of patient protection)
  • 3 years warranty
Applications


MDS-400AUS24 BA
MDS-400AUS24 BA

Open Frame

MDS Open Frame Series

MDS-400AUS24 BA

Highlights & Features
  • Safety Approvals to IEC 60601-1 & IEC 62368-1
  • Risk management report available
  • Low touch current (<0.1 mA Normal & <0.3 mA single fault)
  • Over-Voltage/Load/Temperature & Short Circuit protections
  • 2 Million Hours MTBF
  • 2 x MOPP (means of patient protection)
  • 3 years warranty
Output Voltage

24V

Output Power

400W

Output Current

16.67A

Input Voltage Range

90-264Vac

Dimensions

198 x 97 x 41.5 mm

7.80” x 3.82” x 1.63”

Unit Weight

0.91 kg (2.01 lb)

Applications

Download

Download

Datasheet

Uploaded on 07-Dec-2023


Uploaded on 06-Jun-2024

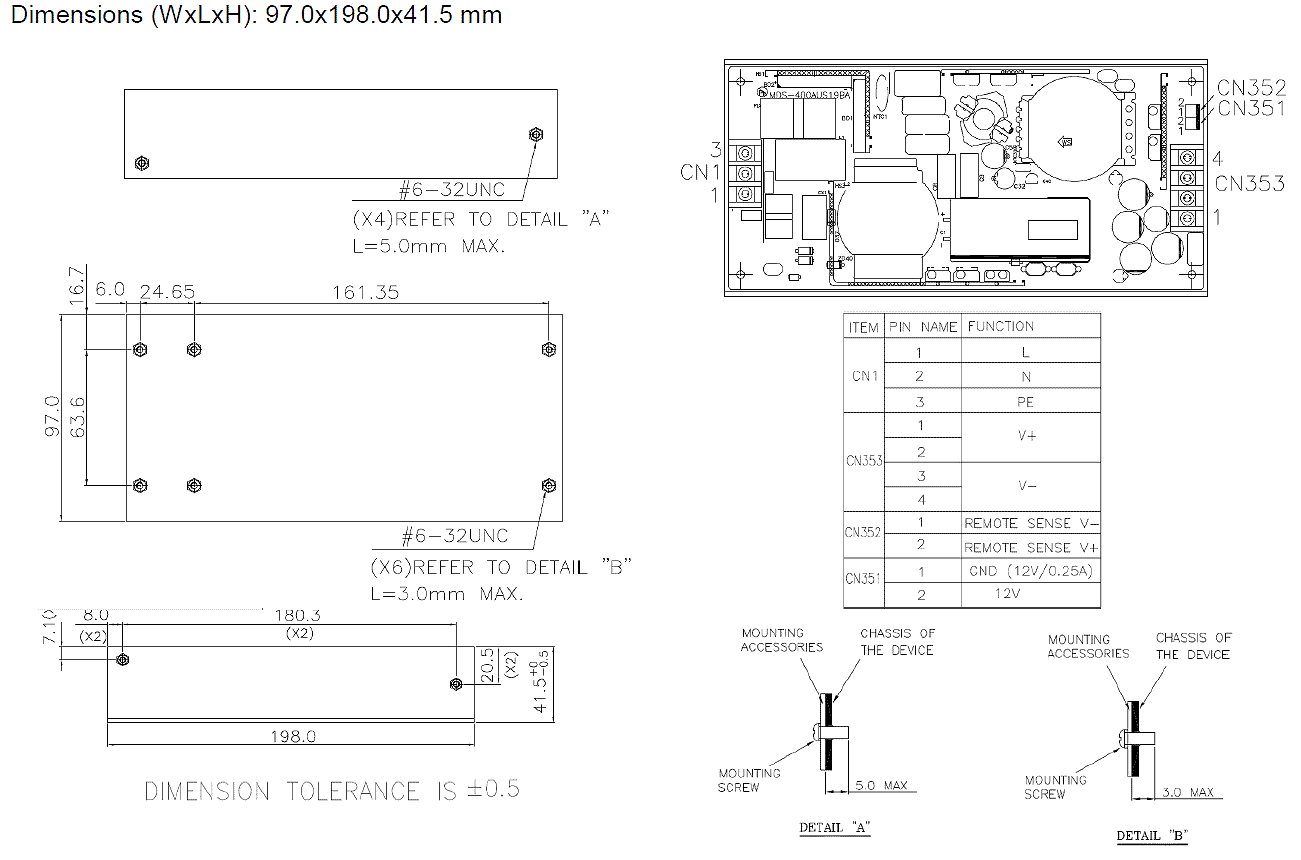

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

CB

Uploaded on 18-Oct-2023

CCC

Uploaded on 09-Oct-2023

CE & UKCA

Uploaded on 11-Oct-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

UL

Uploaded on 27-Jan-2021

Tech Specs

Tech Specs
