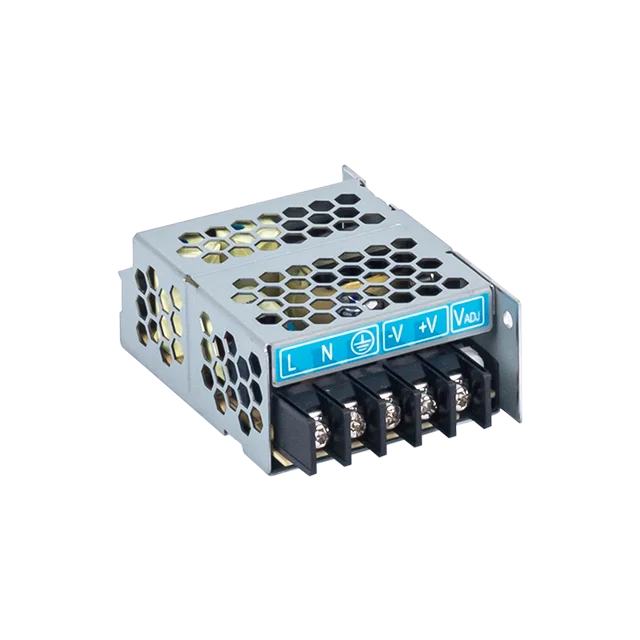

PMC-05V015W1AA

Panel Mount

PMC Series

PMC-05V015W1AA

Output Voltage

5V

Output Power

15W

Output Current

3A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

77 x 51 x 28 mm

3.03” x 2.01” x 1.10”

Unit Weight

0.16 kg (0.35 lb)

Highlights & Features
  • Universal AC input voltage range
  • Power will not de-rate for the entire input voltage range
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • High MTBF > 700,000 hrs per Telcordia SR-332
  • Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55032, Class B
Applications


PMC-05V015W1AA
PMC-05V015W1AA

Panel Mount

PMC Series

PMC-05V015W1AA

Highlights & Features
  • Universal AC input voltage range
  • Power will not de-rate for the entire input voltage range
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • High MTBF > 700,000 hrs per Telcordia SR-332
  • Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55032, Class B
Output Voltage

5V

Output Power

15W

Output Current

3A

Input Voltage Range

85-264Vac

Dimensions

77 x 51 x 28 mm

3.03” x 2.01” x 1.10”

Unit Weight

0.16 kg (0.35 lb)

Applications

Download

Download

Datasheet

Uploaded on 17-May-2024

Manual

Uploaded on 22-Apr-2020


Uploaded on 06-Jun-2024

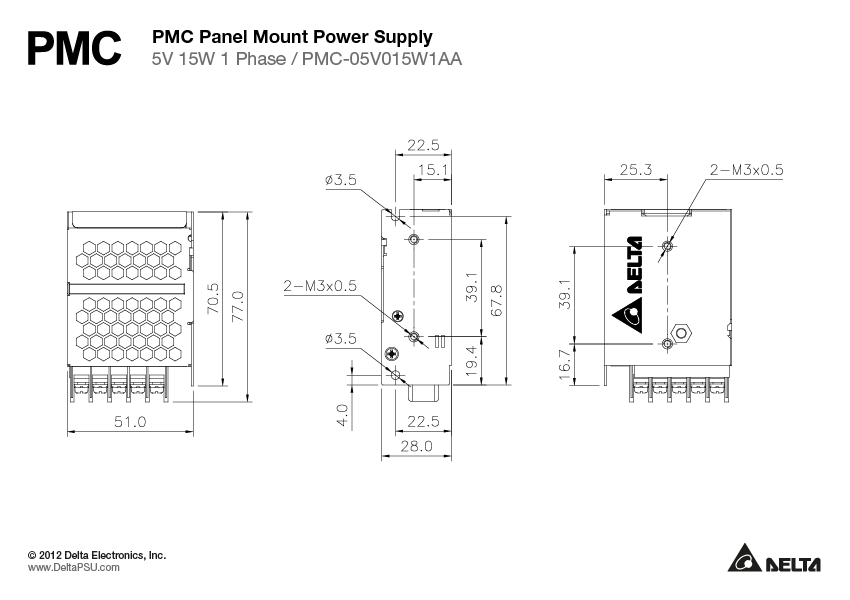

Mechanical Drawing
