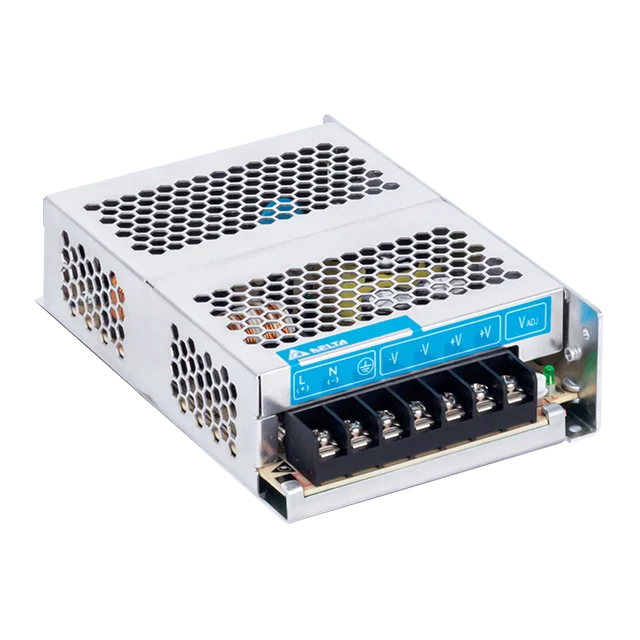

PMC-12V100W1AA

Panel Mount

PMC Series

PMC-12V100W1AA

Output Voltage

12V

Output Power

100W

Output Current

8.34A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

158 x 97 x 38 mm

6.22” x 3.82” x 1.50”

Unit Weight

0.45 kg (0.99 lb)

Highlights & Features

Universal AC input voltage range
Power will not de-rate for the entire input voltage range
Full corrosion resistant aluminium casing
Conforms to harmonic current IEC/EN 61000-3-2, Class A
High MTBF > 700,000 hrs per Telcordia SR-332
Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55032, Class B

** Discontinued Product **

Replaced by: PMT-12V100W2BA / PMT-12V100W2BAC

Optional Models

Model	Description
PMC-12V100W1AL	Front face connector
PMC-12V100W1AH	Harness connector

Applications

Panel Mount

PMC Series

PMC-12V100W1AA

Highlights & Features

Universal AC input voltage range
Power will not de-rate for the entire input voltage range
Full corrosion resistant aluminium casing
Conforms to harmonic current IEC/EN 61000-3-2, Class A
High MTBF > 700,000 hrs per Telcordia SR-332
Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55032, Class B

** Discontinued Product **

Replaced by: PMT-12V100W2BA / PMT-12V100W2BAC

Output Voltage

12V

Output Power

100W

Output Current

8.34A

Input Voltage Range

85-264Vac

Dimensions

158 x 97 x 38 mm

6.22” x 3.82” x 1.50”

Unit Weight

0.45 kg (0.99 lb)

Applications

Optional Models

Model	Description
PMC-12V100W1AL	Front face connector
PMC-12V100W1AH	Harness connector

Download

Datasheet

Uploaded on 19-Oct-2021

Manual

Uploaded on 06-Nov-2020


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 06-Nov-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 06-Nov-2020

CCC

Uploaded on 06-Nov-2020

EAC

Uploaded on 22-Apr-2020

Uploaded on 19-Oct-2021

RCM

Uploaded on 19-Oct-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 06-Nov-2020

UKCA

Uploaded on 19-Oct-2021

Uploaded on 06-Nov-2020

GUI Software

Tech Specs

Output Current

8.34A

Output Voltage

12V

Output Voltage Adjustment Range

11-14Vdc

Output Power

100W

Line Regulation

< 0.5% (@ 85-264Vac input, 100% load)

Load Regulation

< 1.0% (@ 85-264Vac input, 0-100% load)

PARD

< 100mVpp

Start-up Time

< 1000ms @ nominal input (100% load)

Hold-up Time

> 15ms @ 115Vac,
> 80ms @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 85-264Vac, 0-100% load
(Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz)

Start-up with Capacitive Loads

8,000µF Max

Rise Time

< 30ms @ nominal input (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Nominal DC Input Voltage

125-250Vdc

DC Input Voltage Range

125-375 Vdc

Input Current

< 2.0A @ 115Vac,
< 1.1A @ 230Vac

Efficiency at 100% load

> 84% @ 115Vac,
> 86% @ 230Vac

Inrush Current

< 60A @ 115Vac,
< 130A @ 230Vac

Leakage Current

< 1mA @ 240Vac

Power Dissipation

0% load: < 1.5W @ 115Vac & 230Vac
100% load: < 18.5W @ 115Vac, < 15W @ 230Vac

Case Chassis / Cover Aluminium
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 40dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.45 kg (0.99 lb)	Dimensions 158 x 97 x 38 mm 6.22” x 3.82” x 1.50”

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Power De-rating

> 50°C de-rate power by 2.5% /°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 3 times per direction, 18 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 3,000 Meters (9,840 ft.)

Pollution Degree

Over Voltage Category

Overvoltage

16V +10%/-5%, SELV output, Hiccup Mode, Non-Latching (Auto-Recovery)

Overload / Overcurrent

> 120% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

< 75°C Ambient Temperature @ 100% load, Non-Latching (Auto-Recovery)

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Degree of Protection

IP20 (PMC-12V100W1AJ)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
(I/P: 115Vac & 230Vac, O/P: 100% load, Ta: 25°C)

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load and 40°C)

Electrical Safety

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1
CCC: GB9254, GB17625.1 and GB4943.1 (仅适用于海拔 2000m 以下地区安全使用)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5KVac

Safety Entry Low Voltage

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

K60950-1

Emission

Generic Standards: CISPR 32, EN/BS EN 55032,
AS/NZS CISPR 32:2013 Class B,
KN 32 FCC Title 47: Class B, GB9254

Immunity

Generic Standards: EN/BS EN 55024, KN 35

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
