PMR-5V320WDAA

Panel Mount

PMR Series

PMR-5V320WDAA

Output Voltage

5V

Output Power

300W

Output Current

60A

Input Voltage Range

88-264Vac

Dimensions (L x W x H)

215 x 115 x 30 mm

8.46” x 4.53” x 1.18”

Unit Weight

0.86 kg (1.90 lb)

Highlights & Features
  • Universal AC input voltage
  • Full corrosion resistant aluminium case and chassis
  • Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D
  • Low profile design for 1U installation
  • High reliability with fanless design
  • Built-in DC OK relay contact and redundancy operation (PMR-5V320WDBA and PMR-5V320WDCA)


Tags
PMR-5V320WDBA, PMR-5V320WDGA, PMR-5V320WDCA
Applications


PMR-5V320WDAA
PMR-5V320WDAA

Panel Mount

PMR Series

PMR-5V320WDAA

Highlights & Features
  • Universal AC input voltage
  • Full corrosion resistant aluminium case and chassis
  • Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D
  • Low profile design for 1U installation
  • High reliability with fanless design
  • Built-in DC OK relay contact and redundancy operation (PMR-5V320WDBA and PMR-5V320WDCA)


Output Voltage

5V

Output Power

300W

Output Current

60A

Input Voltage Range

88-264Vac

Dimensions

215 x 115 x 30 mm

8.46” x 4.53” x 1.18”

Unit Weight

0.86 kg (1.90 lb)

Applications
Tags
PMR-5V320WDBA, PMR-5V320WDGA, PMR-5V320WDCA

Download

Download

Datasheet

Uploaded on 22-Apr-2020

Manual

Uploaded on 22-Apr-2020


Uploaded on 04-Dec-2020

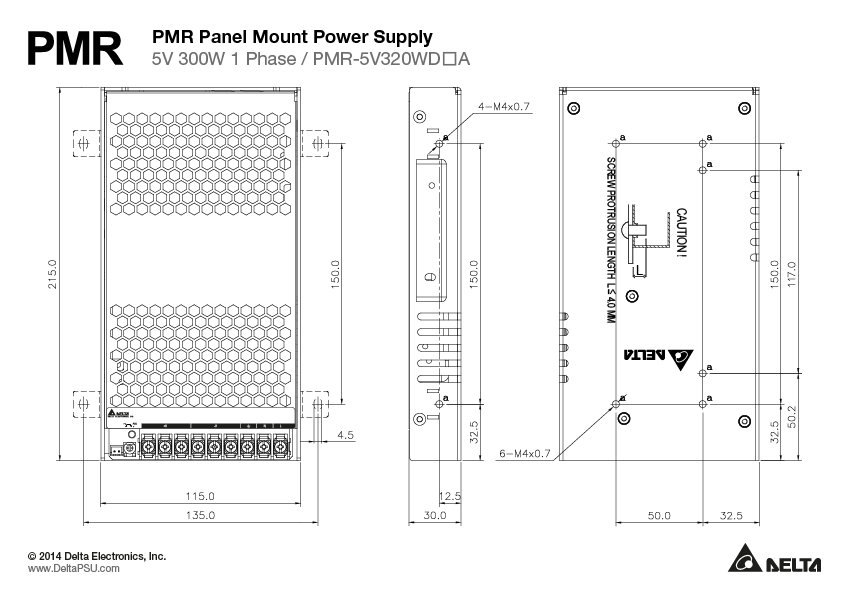

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

CB

Uploaded on 22-Apr-2020

CCC

Uploaded on 22-Apr-2020

CE

Uploaded on 22-Apr-2020

REACH

Uploaded on 07-Sep-2023

RoHS

Uploaded on 07-Sep-2023

TUV

Uploaded on 22-Apr-2020

UL

Uploaded on 22-Apr-2020

Tech Specs

Tech Specs

Output Current
60A
Output Voltage
5V
Output Voltage Range
Output Voltage Adjustment Range
4.50-5.50Vdc
Output Power
300W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
± 0.5% typ. (@ 115Vac & 230Vac, 100% load)
Load Regulation
± 1.0% typ. (@ 115Vac & 230Vac, 0-100% load)
PARD
< 150mVpp @ 25°C
< 300mVpp @ -20°C
Start-up Time
3000ms typ. @ 115Vac,
1500ms typ. @ 230Vac (100% load)
Hold-up Time
8ms typ. @ 115Vac & 230Vac
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 1500mVpp @ 10-50% load and 50-100% load
Start-up with Capacitive Loads
8,000μF Max
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
-
Nominal Input Voltage
100-240Vac
Input Voltage Range
88-264Vac
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
< 5.00A@115Vac, < 2.50A @ 230Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
86.0% typ. @ 115Vac, 88.0% typ. @ 230Vac
Max Inrush Current
< 20A @ 115Vac, < 40A @ 230Vac
Charging Time
-
Power Factor at 100% load
0.98 typ. @ 115Vac, 0.95 typ. @ 230Vac
Leakage Current
< 1mA @ 240Vac
Nominal Current
-
Total Harmonic Distortion
-
Max Power Dissipation
-
Case Chassis / Cover
Aluminium
Indicator
Green LED (DC OK)
Cooling System
Convection
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
-
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
-
Protection Structure
-
Unit Weight
0.86 kg (1.90 lb)
Dimensions
215 x 115 x 30 mm
8.46” x 4.53” x 1.18”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
-20°C to +70°C (Cold start at -40°C)
Storage Temperature
-40°C to +85°C
Power De-rating
> 40°C de-rate power by 1% / °C,
> 50°C de-rate power by 1.5% / °C
< 110Vac de-rate power by 1% / 1V
Operating Humidity
5 to 95% RH (Non-Condensing)
Shock Test (Non-Operating)
IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3 shocks for each 3 directions
Vibration (Non-Operating)
IEC 60068-2-6, Random: 5Hz to 500Hz (2.09Grms); 20 min per axis for all X, Y, Z direction
Storage Humidity
-
Operating Altitude
-
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Overvoltage
5.75-6.50V, Hiccup Mode, Non-Latching
(Auto-Recovery)
Overload / Overcurrent
105-150%, Hiccup Mode, Non-Latching
(Auto-Recovery)
Over Temperature
Hiccup Mode, Non-Latching (Auto-Recovery)
Short Circuit
Hiccup Mode, Non-Latching (Auto-Recovery)
Reverse Polarity Protection
-
Degree of Protection
-
Protection Against Shock
Class I with PE connection
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
MTBF
> 700,000 hrs. as per Telcordia SR-332
I/P: 100Vac, O/P: 100% load, Ta: 35°C
Expected Cap Life Time
-
Safety Certificate
-
Electrical Safety
-
CE
In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC
Medical Safety
-
Galvanic Isolation
-
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
Emission
CISPR 22, EN 55022, FCC Title 47: Class B
Immunity
EN 55024
Harmonic Current Emissions
IEC/EN 61000-3-2, Class A and Class D
Voltage Fluctuation and Flicker
IEC/EN 61000-3-3
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
