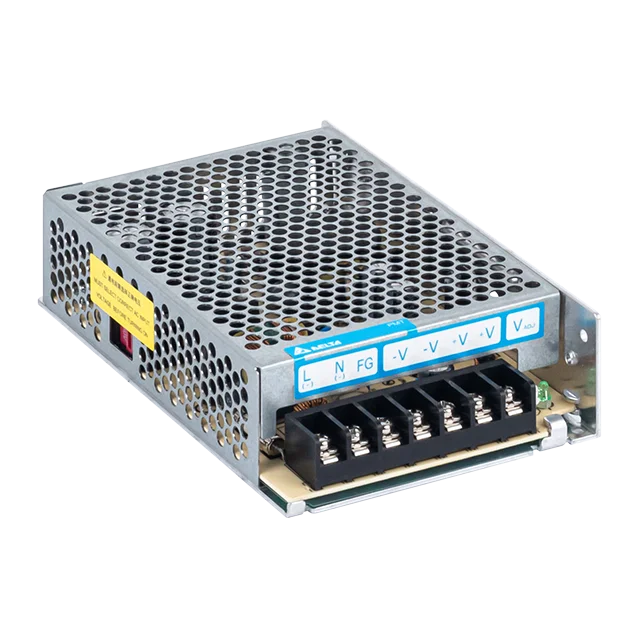

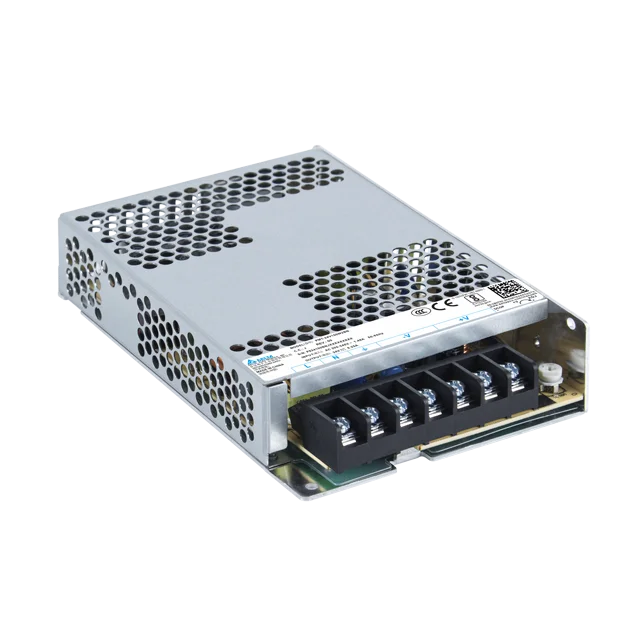

PMT-12V100W1AA

Panel Mount

PMT Series

PMT-12V100W1AA

Output Voltage

12V

Output Power

102W

Output Current

8.5A

Input Voltage Range

85-132Vac, 176-264Vac (Selectable by Switch)

Dimensions (L x W x H)

158 x 97 x 38 mm

6.22” x 3.82” x 1.50”

Unit Weight

0.36 kg (0.79 lb)

Highlights & Features
  • AC input voltage range selectable by switch (85-132Vac, 176-264Vac)
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • High MTBF > 700,000 hrs as per Telcordia SR-332
  • Versatile configuration options (Enclosed, L Frame)
  • Versatile connector options (Terminal Block, Front Face, Harness)


Tags
PMT-12V100W1AG, PMT-12V100W1AH, PML-12V100W1AA, PML-12V100W1AG, PML-12V100W1AH, PMT-12V100W1AAB, PMT-12V100W1AAA
Applications


PMT-12V100W1AA
PMT-12V100W1AA

Panel Mount

PMT Series

PMT-12V100W1AA

Highlights & Features
  • AC input voltage range selectable by switch (85-132Vac, 176-264Vac)
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • High MTBF > 700,000 hrs as per Telcordia SR-332
  • Versatile configuration options (Enclosed, L Frame)
  • Versatile connector options (Terminal Block, Front Face, Harness)


Output Voltage

12V

Output Power

102W

Output Current

8.5A

Input Voltage Range

85-132Vac, 176-264Vac (Selectable by Switch)

Dimensions

158 x 97 x 38 mm

6.22” x 3.82” x 1.50”

Unit Weight

0.36 kg (0.79 lb)

Applications
Tags
PMT-12V100W1AG, PMT-12V100W1AH, PML-12V100W1AA, PML-12V100W1AG, PML-12V100W1AH, PMT-12V100W1AAB, PMT-12V100W1AAA

Download

Download

Datasheet

Uploaded on 28-Feb-2022

Manual

Uploaded on 22-Apr-2020


Uploaded on 17-Jan-2023

Mechanical Drawing

Uploaded on 26-May-2022

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

CB

Uploaded on 17-Jan-2023

CE & UKCA

Uploaded on 24-May-2021

REACH

Uploaded on 07-Sep-2023

RoHS

Uploaded on 07-Sep-2023

TUV

Uploaded on 18-Mar-2021

UL

Uploaded on 18-Mar-2021

Tech Specs

Tech Specs

Output Current
8.5A
Output Voltage
12V
Output Voltage Range
Output Voltage Adjustment Range
11.4-13.2Vdc
Output Power
102W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
± 0.5% typ. (@ 115-132Vac & 176-264Vac,100% Load)
Load Regulation
± 0.5% typ. (@ 115-132Vac & 176-264Vac,0-100% Load )
PARD
< 120mVpp @ 0°C to 50°C
< 240mVpp @ -10°C to 0°C
Start-up Time
< 1000ms @ nominal input (100% load)
Hold-up Time
> 25ms @ 115Vac,
> 30ms @ 230Vac
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 5% @ 0-100% load (Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz)
Start-up with Capacitive Loads
8,000µF Max
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
< 25ms @ nominal input (100% load)
Power Boost Duration
-
Power Boost Recovery Time
-
Nominal Input Voltage
100-120Vac, 200-240Vac (Selectable by Switch)
Input Voltage Range
85-132Vac, 176-264Vac (Selectable by Switch)
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
< 2.00A @ 115Vac,
< 1.20A @ 230Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
85.5% typ. @ 115Vac & 86.5% typ. @ 230Vac
Max Inrush Current
< 36A @ 230Vac
Charging Time
-
Power Factor at 100% load
-
Leakage Current
< 0.5mA @ 240Vac
Nominal Current
-
Total Harmonic Distortion
-
Max Power Dissipation
0% load: 0.31W typ. @ 230Vac
100% load: 15.25W typ. @ 230Vac
Efficiency @ 10% load
-
Case Chassis / Cover
Aluminium / SGCC
Indicator
Green LED (DC OK)
Cooling System
Convection
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
< 25dBA
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
-
Protection Structure
-
Terminal
-
Unit Weight
0.36 kg (0.79 lb)
Dimensions
158 x 97 x 38 mm
6.22” x 3.82” x 1.50”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
-10°C to +70°C
Storage Temperature
-25°C to +85°C
Power De-rating
> 50°C de-rate power by 2.5% / °C
< 115Vac de-rate power by 2.5% / 3V
Operating Humidity
5-95% RH (Non-Condensing)
Shock Test (Non-Operating)
IEC60068-2-27, Half Sine: 50G for a duration of 11ms, 3 times per direction, 18 times in total
Vibration (Non-Operating)
IEC60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms, 20 min per axis for all X, Y, Z direction
Storage Humidity
-
Operating Altitude
0 to 5,000 Meters (16,400 ft.)
Pollution Degree
2
Bump Test (Operating)
-
Over Voltage Category
II
Overvoltage
115-135%, Hicc-up Mode, Non-Latching (Auto-Recovery)
Overload / Overcurrent
110-150%, Hicc-up Mode, Non-Latching (Auto-Recovery)
Over Temperature
< 70°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)
Short Circuit
Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)
Reverse Polarity Protection
-
Degree of Protection
IPX0
Protection Against Shock
Class I with Primary Earth connection
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 35°C
Expected Cap Life Time
10 years (115Vac, 50% load @ 40°C)
Safety Certificate
-
Electrical Safety
TUV Bauart EN 60950-1, EN 62368-1
UL/cUL recognized UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme IEC 60950-1, IEC 62368-1
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
Medical Safety
-
Galvanic Isolation
Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
SELV
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
Emission
(CE&RE)
CISPR 32, EN/BS EN 55032, FCC Title 47: Class B
Immunity
EN/BS EN 55024
Harmonic Current Emissions
IEC/EN/BS EN 61000-3-2, Class A
Voltage Fluctuation and Flicker
IEC/EN/BS EN 61000-3-3
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
