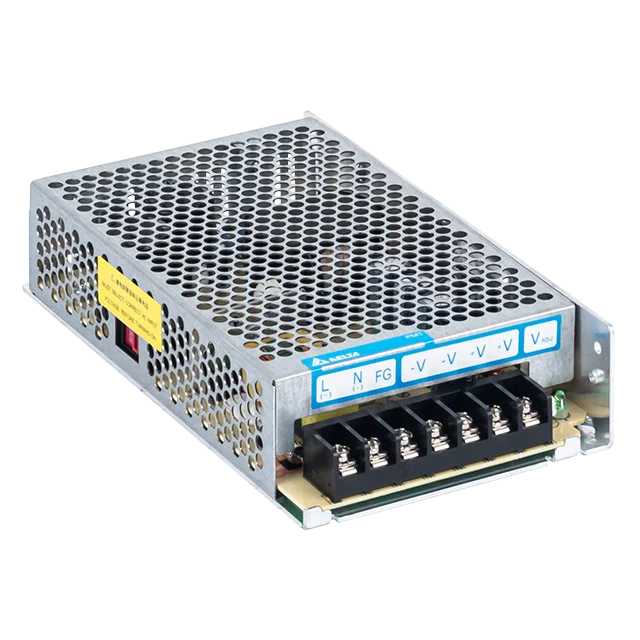

PMT-12V150W1AA

Panel Mount

PMT Series

PMT-12V150W1AA

Output Voltage

12V

Output Power

150W

Output Current

12.5A

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Dimensions (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

Unit Weight

0.48 kg (1.06 lb)

Highlights & Features
  • AC input voltage range selectable by switch (90-132Vac, 180-264Vac)
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • High MTBF > 700,000 hrs as per Telcordia SR-332
  • Versatile configuration options (Enclosed, L Frame)
  • Versatile connector options (Terminal Block, Front Face, Harness)


** NRND **
Recommended Model: PMT-12V150W2BA

Model Description
PMT-12V150W1AG Enclosed, front face connector
PMT-12V150W1AH Enclosed, harness connector
PMT-12V150W1AAB Enclosed, terminal block, conformal coating
Applications


PMT-12V150W1AA
PMT-12V150W1AA

Panel Mount

PMT Series

PMT-12V150W1AA

Highlights & Features
  • AC input voltage range selectable by switch (90-132Vac, 180-264Vac)
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • High MTBF > 700,000 hrs as per Telcordia SR-332
  • Versatile configuration options (Enclosed, L Frame)
  • Versatile connector options (Terminal Block, Front Face, Harness)


** NRND **
Recommended Model: PMT-12V150W2BA

Output Voltage

12V

Output Power

150W

Output Current

12.5A

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Dimensions

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

Unit Weight

0.48 kg (1.06 lb)

Applications
Model Description
PMT-12V150W1AG Enclosed, front face connector
PMT-12V150W1AH Enclosed, harness connector
PMT-12V150W1AAB Enclosed, terminal block, conformal coating
