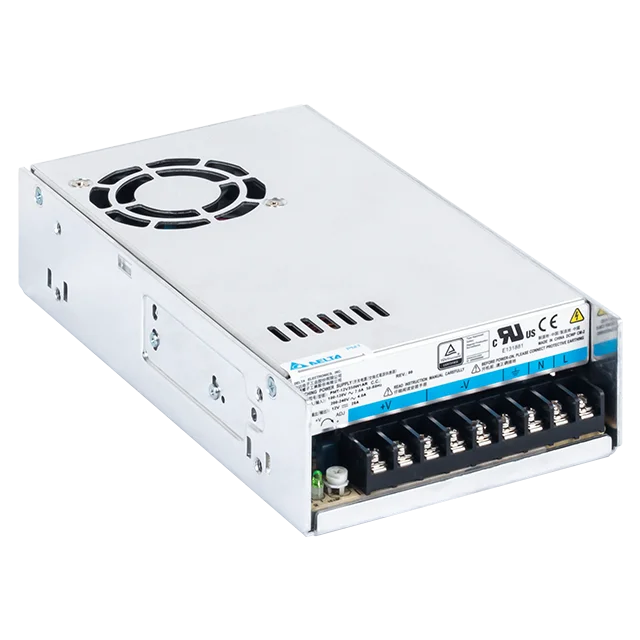

PMT-12V350W1AR

Panel Mount

PMT Series

PMT-12V350W1AR

Output Voltage

12V

Output Power

348W

Output Current

29A

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Dimensions (L x W x H)

215 x 115 x 50 mm

8.46” x 4.53” x 1.97”

Unit Weight

0.82 kg (1.81 lb)

Highlights & Features
  • AC input voltage selectable by switch
  • Full corrosion resistant aluminium casing
  • Built-in automatic fan speed control circuit
  • MTBF > 700,000 hrs. as per Telcordia SR-332
  • Short Circuit / Overvoltage / Overload / Over Temperature Protections
Tags
PMT-12V350W1AK
Applications


PMT-12V350W1AR
PMT-12V350W1AR

Panel Mount

PMT Series

PMT-12V350W1AR

Highlights & Features
  • AC input voltage selectable by switch
  • Full corrosion resistant aluminium casing
  • Built-in automatic fan speed control circuit
  • MTBF > 700,000 hrs. as per Telcordia SR-332
  • Short Circuit / Overvoltage / Overload / Over Temperature Protections
Output Voltage

12V

Output Power

348W

Output Current

29A

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Dimensions

215 x 115 x 50 mm

8.46” x 4.53” x 1.97”

Unit Weight

0.82 kg (1.81 lb)

Applications
Tags
PMT-12V350W1AK

Download

Download

Datasheet

Uploaded on 07-Jun-2021

Manual

Uploaded on 22-Apr-2020


Uploaded on 07-Jun-2021

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 18-Dec-2020

.STP

Uploaded on 18-Dec-2020

CB

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 24-May-2021

REACH

Uploaded on 07-Sep-2023

RoHS

Uploaded on 07-Sep-2023

TUV

Uploaded on 21-Apr-2021

UL

Uploaded on 21-Apr-2021

Tech Specs

Tech Specs

Output Current
29A
Output Voltage
12V
Output Voltage Range
Output Voltage Adjustment Range
10.8-13.2Vdc
Output Power
348W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
± 0.5% typ.
Load Regulation
± 1% typ.
PARD
< 150mVpp
Start-up Time
< 1000ms @ nominal input (100% load)
Hold-up Time
12ms typ.@ 115Vac, 16ms typ. @ 230Vac (100% load)
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 5%, 10-50% load and 50-100% load (Slew Rate: 0.1A/μS)
Start-up with Capacitive Loads
8,000μF Max
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
< 50ms @ nominal input (100% load)
Nominal Input Voltage
100-120Vac, 200-240Vac (Selectable by Switch)
Input Voltage Range
90-132Vac, 180-264Vac (Selectable by Switch)
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
7.00A typ. @ 115Vac, 4.00A typ. @ 230Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
84.0% typ.@ 230Vac
Max Inrush Current
< 50A @ 115Vac, < 60A @ 230Vac
Charging Time
-
Power Factor at 100% load
-
Leakage Current
< 3.5mA @ 240Vac
Nominal Current
-
Total Harmonic Distortion
-
Max Power Dissipation
-
Case Chassis / Cover
Aluminum / SGCC
Indicator
Green LED (DC OK)
Cooling System
Forced Cooling
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
< 52dBA
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
AWG 16-12
Protection Structure
-
Unit Weight
0.82 kg (1.81 lb)
Dimensions
215 x 115 x 50 mm
8.46” x 4.53” x 1.97”
Vibration (Operating)
IEC 60068-2-6, Sine Wave: 10Hz to 150Hz @ 25m/S? (2.5G peak); 90 min per axis for all X, Y, Z direction
Shock Test (Operating)
-
Operating Temperature
-10°C to +70°C
Storage Temperature
-25°C to +85°C
Power De-rating
> 50°C de-rate power by 2.5% / °C
< 100Vac de-rate power by 3% / V
< 200Vac de-rate power by 3% / V
Operating Humidity
5 to 95% RH (Non-Condensing)
Shock Test (Non-Operating)
IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3 times per direction, 18 times in total
Vibration (Non-Operating)
IEC 60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms peak; 20 min per axis for all X, Y, Z direction
Storage Humidity
-
Operating Altitude
0 to 5,000 Meters (16,400 ft.)
Pollution Degree
2
Bump Test (Operating)
-
Over Voltage Category
II
Overvoltage
13.8-16.2V, SELV Output, Latch Mode
Overload / Overcurrent
105%-150% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)
Over Temperature
Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
Short Circuit
Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
Reverse Polarity Protection
-
Degree of Protection
-
Protection Against Shock
Class I with Primary Earth connection
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
MTBF
> 700,000 hrs. as per Telcordia SR-332
I/P: 100Vac, O/P: 100% load, Ta: 35°C
Expected Cap Life Time
10 years (115Vac , 50% load @ 40°C)
Safety Certificate
-
Electrical Safety
TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
Medical Safety
-
Galvanic Isolation
Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
SELV
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
In conformance with 2016 No. 1101. The Electrical Equipment (Safety) Regulations 2016 and 2016 No. 1091 The Electromagnetic Compatibility Regulations 2016
Certificates for Other Countries
-
BIS
-
KC
-
Emission
(CE & RE)
CISPR 32, EN/BS EN 55032, EN/BS EN 55011, FCC Title 47: Class B
Immunity
EN/BS EN 55024
Harmonic Current Emissions
-
Voltage Fluctuation and Flicker
IEC/EN/BS EN 61000-3-3
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
