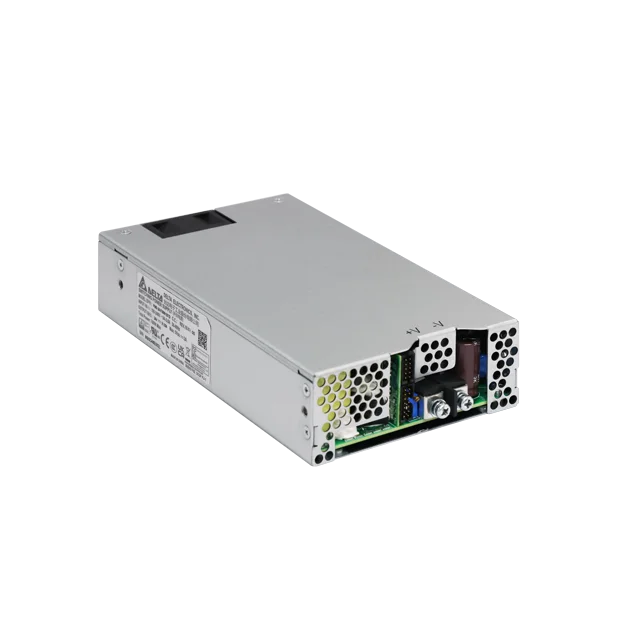

Delta PMT-12V350W2BR 12V 348W 29A Panel Mount PMT2 Series

Model	Description
PMT-12V350W2BRB	UL/TUV/CE/EAC approval, single side conformal coating
PMT-12V350W2BM	UL/EAC approval
PMT-12V350W2BMB	UL/EAC approval, single side conformal coating

Model	Description
PMT-12V350W2BRB	UL/TUV/CE/EAC approval, single side conformal coating
PMT-12V350W2BM	UL/EAC approval
PMT-12V350W2BMB	UL/EAC approval, single side conformal coating

Download

Datasheet

Uploaded on 02-Apr-2024

Manual

Uploaded on 06-May-2024


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 15-May-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

BSMI

Uploaded on 04-Jun-2024

Uploaded on 16-Jan-2023

CE & UKCA

Uploaded on 21-Jun-2021

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

Output Current

29A

Output Voltage

12V

Output Voltage Adjustment Range

10.8-13.2Vdc

Output Power

348W

Line Regulation

± 0.5% typ. @ 100-132Vac, 180-264Vac (Selectable by Switch)

Load Regulation

±1% @ 100-132Vac, 180-264Vac (Selectable by Switch)

PARD

< 150mVpp @ 0°C to 70°C
450mVpp typ. @ -30°C to 0°C

Start-up Time

1500ms typ. @ 115Vac & 230Vac

Hold-up Time

20ms typ. @ 115Vac & 230Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 10% @ 115 & 230Vac input, 10-100% load (Slew Rate: 2.5A/μS, 50% duty cycle @ 5Hz & 10KHz)

Start-up with Capacitive Loads

8,000µF Max

Rise Time

30ms typ. @ 115Vac & 230Vac

Nominal Input Voltage

100-120Vac, 200-240Vac (Selectable by Switch)

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

6A typ. @ 115Vac, 3.4A typ. @ 230Vac

Efficiency at 100% load

84.5% typ. @ 230Vac

Inrush Current

60A typ. @ 230Vac (Cold Start)

Leakage Current

< 0.75mA @ 240Vac/50Hz

Case Chassis / Cover SGCC
Indicator Green LED (DC OK)
Cooling System Force Cooling
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 18-12 Current rating can refer to page 6 “Wire AWG Table”
Protection Structure -
Terminal -
Unit Weight 0.833 kg (1.84 lb)	Dimensions 215 x 115 x 30 mm 8.46” x 4.53” x 1.18”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 20Hz to 500Hz (5G); 10min per cycle, 60min for each axis (X, Y,Z)

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms, 3 shock for each 3 directions.

Operating Temperature

-30°C to +70°C (-40°C Cold Start)

Storage Temperature

-40°C to +85°C

Power De-rating

> 50°C de-rate power by 2% / °C
< < 100Vac de-rate power by 2% / V
(80% load @ 90Vac)

Operating Humidity

20 to 90% (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09G); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (0 to 16,400 ft)

Pollution Degree

Over Voltage Category

Overvoltage

13.2V-17.4V SELV Output, Latch Mode

Overload / Overcurrent

110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with PE*⁶connection

MTBF

> 700,000 hrs as per Telcordia SR-332 I/P: 230Vac, O/P: 100% Load, Ta: 25°C)

Expected Cap Life Time

10 years (230Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 62368-1
UL/cUL: UL 62368-1, and CAN/CSA C22.2 No. 62368-1
CB scheme: IEC 62368-1, IEC 60950-1
KC:K 60950-1
EAC: TP TC 004/2011
BSMI: CNS 14336-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 0.5 KVac

Safety Entry Low Voltage

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

(CE & RE)
CISPR 32, EN/BS EN 55032, EN/BS EN 61000-6-4, KN32, AS/NZS CISPR32
Compliance to FCC Title 47, EN/BS EN 61000-6-3 : Class B

Immunity

EN/BS EN 55035, KN35, EN/BS EN 61000-6-2 & Compliance to EN/BS EN 61000-6-1
