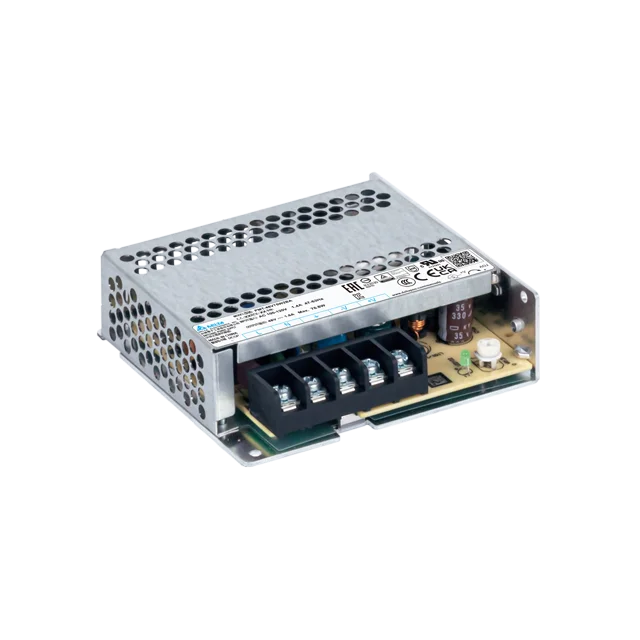

PMT-12V75W2BA

Panel Mount

PMT2 Series

PMT-12V75W2BA

Output Voltage

12V

Output Power

72W

Output Current

6A

Input Voltage Range

90-264Vac

Dimensions (L x W x H)

99 x 97 x 30 mm

3.90” x 3.82” x 1.18”

Unit Weight

0.216 kg (0.48 lb)

Highlights & Features
  • Household appliance approvals to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
  • Universal AC input voltage range
  • No load power consumption < 0.3W
  • Low profile design : 30mm height
  • OVC III, Pollution Degree 3
  • Wide operating temp -30°C ~70°C (Support -40°C cold start)
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • High MTBF > 700,000 hrs per Telcordia SR-332
  • Compliance with SEMI-F47
Model Description
PMT-12V75W2BAB Single side conformal coating
Applications


PMT-12V75W2BA
PMT-12V75W2BA

Panel Mount

PMT2 Series

PMT-12V75W2BA

Highlights & Features
  • Household appliance approvals to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
  • Universal AC input voltage range
  • No load power consumption < 0.3W
  • Low profile design : 30mm height
  • OVC III, Pollution Degree 3
  • Wide operating temp -30°C ~70°C (Support -40°C cold start)
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • High MTBF > 700,000 hrs per Telcordia SR-332
  • Compliance with SEMI-F47
Output Voltage

12V

Output Power

72W

Output Current

6A

Input Voltage Range

90-264Vac

Dimensions

99 x 97 x 30 mm

3.90” x 3.82” x 1.18”

Unit Weight

0.216 kg (0.48 lb)

Applications
Model Description
PMT-12V75W2BAB Single side conformal coating
