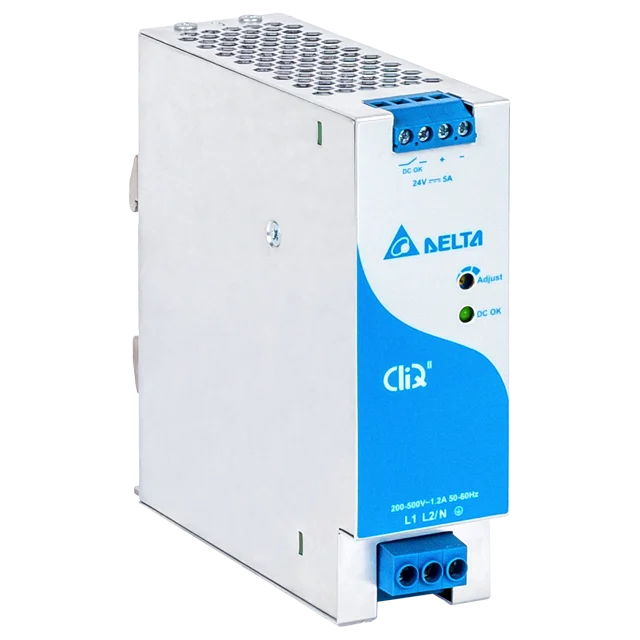

Delta DRP-24V120W2BN 24V 120W 5A 導軌型電源 CliQ II Series

資源下載

Datasheet

Uploaded on 06-Oct-2021

Manual

Uploaded on 20-May-2021


Uploaded on 25-Mar-2025

Mechanical Drawing

Uploaded on 25-Nov-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

BIS

Uploaded on 10-Sep-2025

Uploaded on 25-Nov-2020

Uploaded on 19-Sep-2023

CSA

Uploaded on 26-Nov-2020

EAC

Uploaded on 15-Aug-2022

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 25-Nov-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 10-May-2021

Uploaded on 25-Nov-2020

GUI Software

Tech Specs

輸出電流

輸出電壓

24V

輸出電壓調整範圍

24-28Vdc

輸出功率

120W

線電壓調整率

< 0.5% (@ 200-550Vac input, 100% load)

負載調整率

< 1.0% (@ 200-550Vac input, 0-100% load)

紋波電壓

< 150mVpp

開機時間

< 2,500ms @ nominal input (100% load)

保持時間

> 10ms @ 2 x 230Vac,
> 50ms @ 2 x 400Vac (100% load)

動態回應

± 5% @ 180-550Vac input, 0-100% load
(Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz)

電容性負載啟動

5,000µF Max

升壓時間

< 70ms @ nominal input (100% load)

額定輸入電壓

2 x 200-500Vac (2-Phase)
200-277Vac (Single Phase)

輸入電壓範圍

2 x 180-550Vac (2-Phase)
180-305Vac (Single Phase)

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

直流輸入電壓範圍

254-780Vdc

輸入電流

< 1.20A @ 2 x 230Vac,
< 0.80A @ 2 x 400Vac

100% 負載效率

> 90.0% @ 2 x 400Vac

浪湧電流

< 50A @ 2 x 200Vac

漏電流

< 1mA @ 500Vac

功率損耗

0% load: < 1.7W @ 2 x 200Vac, < 3.2W @ 2 x 500Vac
100% load: < 17W @ 2 x 200Vac, < 15W @ 2 x 500Vac

底架 / 外殼 Aluminium
指示燈 Green LED (DC OK)
冷卻方式 Convection
輸入端 3 Pins (Rated 600V/35A)
輸出端 4 Pins (Rated 300V/28A)
信號端 -
聲壓級（SPL） < 40dBA
輸入/輸出端 -
信號 -
安裝導軌 Standard TS35 DIN Rail in accordance with EN 60715
電線 Input: AWG 18-8 Output: AWG 18-12
保護結構 -
端子台 -
重量 0.62 kg (1.37 lb)	尺寸 124 x 40 x 117 mm 4.88” x 1.57” x 4.61”

運行溫度

-30°C to +70°C

儲存溫度

-40°C to +85°C

功率降額

Vertical: > 60°C de-rate power by 4% / °C
Horizontal: > 50°C de-rate power by 4% / °C
Input Voltage: < 200Vac de-rate power by 2% / Vac
Cold Start: < -10°C de-rate power by 2.5% / °C

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 3 times per direction, 6 times in total

振動測試（非運行狀態）

IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); 60 min per axis for all X, Y, Z direction

運行高度

0 to 2,500 Meters (8,200 ft.) for ITE application (@ 60°C)
0 to 2,000 Meters (6,560 ft.) for Industrial application (@ 60°C)

污染程度

碰撞試驗（運行狀態）

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

過壓類別

III
According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part)

過壓保護

32V ±10%, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)

超負載/過電保護

> 120-160% of rated load current, Constant current, Hiccup Mode (Auto-Recovery)

過溫保護

< 80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

短路保護

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防護等級

IP20

電擊防護等級

Class I with Primary Earth connection

MTBF

> 800,000 hrs. as per Telcordia SR-332 (I/P: 2 x 200Vac & 500Vac, O/P: 100% load, Ta: 25°C)

預計最長使用壽命

10 years (2 x 200Vac & 500Vac, 50% load @ 40°C)

電氣安全

SIQ Bauart: EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1
UKCA: BS EN 62368-1

In conformance with EMC Directive 2014/30/EU (only AC input) and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 4.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 1.5 KVac

工業控制設備

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)
CSA: CSA C22.2 No. 107.1-01 (File No. 181564)

機器電氣設備

EN/BS EN 60204-1 (over voltage category III)

用於電率安裝的電氣設備

IEC/EN/BS EN 62477-1 / IEC 62103

安全特低電壓

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

輻射與傳導

(CE & RE)
Generic Standards: CISPR 32, EN/BS EN 55032, CISPR 11, EN/BS EN 55011, FCC Title 47: Class B

抗擾度

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A

電壓波動和閃變

IEC/EN/BS EN 61000-3-3

通用用途之部件供電

EN/BS EN 61204-3
