PJT-27V150WBNA

資源下載

Datasheet

Uploaded on 28-Oct-2021

Manual

Uploaded on 11-Sep-2020


Uploaded on 07-Mar-2024

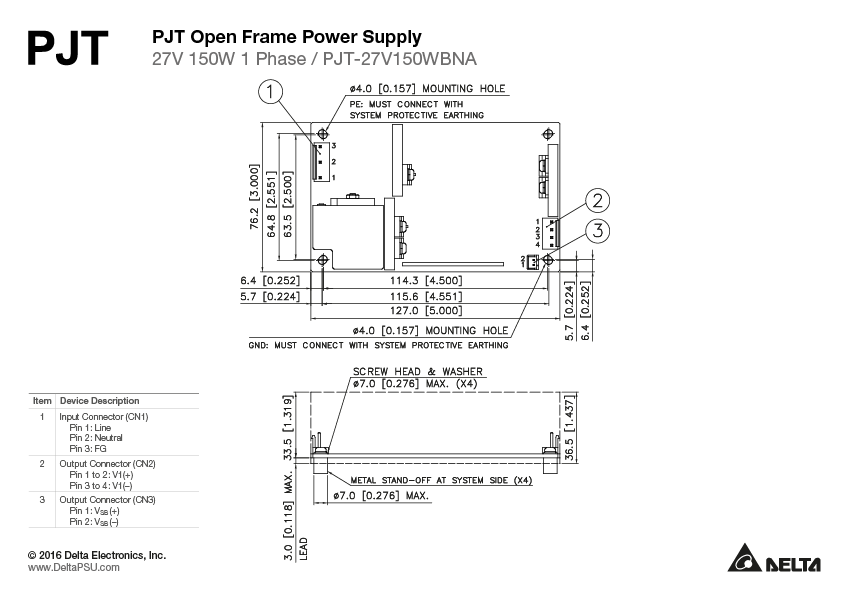

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

Uploaded on 03-Dec-2020

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 07-Sep-2023

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 03-Dec-2020

UKCA

Uploaded on 28-Oct-2021

Uploaded on 03-Dec-2020

GUI Software

Tech Specs

輸出電流

5.55A,0.5A

輸出電壓

27V,12V

輸出功率

150W

線電壓調整率

< 0.5% (@ 90-264Vac input, 100% load)

負載調整率

< 1.0% (@ 90-264Vac input, 0-100% load)

紋波電壓

V1: < 150mVpp, VSB: < 75mVpp

開機時間

< 1500ms @ 115Vac & 230Vac (100% load)

保持時間

> 40ms@ 115Vac & 230Vac (100% load)

動態回應

± 5% @ 85-264Vac input, 0-100% load
(Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 1KHz)

電容性負載啟動

V1: 3,000uF Max, VSB: NA

升壓時間

< 100ms @ 115Vac & 230Vac (100% load)

額定輸入電壓

100-240Vac

輸入電壓範圍

85-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

輸入電流

< 1.80A @115Vac, < 0.9A @ 230Vac

100% 負載效率

> 88.5% @ 115Vac , > 89.5% @ 230Vac

浪湧電流

< 50A@115Vac, < 100A@ 230Vac

功率因數

> 0.99 @ 115Vac, > 0.93 @ 230Vac

漏電流

< 0.25mA@264Vac

功率損耗

No Load: < 0.4W @ 115Vac, < 0.6W @ 230Vac
100% Load: < 17W @ 115Vac, < 19W @ 230Vac

底架 / 外殼 -
指示燈 -
冷卻方式 Convection
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） -
輸入/輸出端 -
信號 -
安裝導軌 -
電線 -
保護結構 -
端子台 -
重量 0.37 kg (0.82 lb)	尺寸 127.6 x 76.2 x 36.5 mm 5.02” x 3.00” x 1.44”

振動測試（運行狀態）

IEC 60068-2-6, 10Hz to 150Hz @ 25m/S? (2.5G peak); displacement of 0.35mm; 90 min per axis for all X, Y, Z direction

運行溫度

-10°C to +70°C

儲存溫度

-40°C to +85°C

功率降額

Temperature: > 50°C de-rate power by 2.5% / °C
Input Voltage: < 90Vac de-rate power by 2.0% / °C

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC 60068-2-27, Half Sine 50G for a duration of 11ms, 3 times per direction, 9 times in total

運行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

過壓類別

過壓保護

V1: < 36V, SELV Output, Latch Mode
VSB: < 19V, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)

超負載/過電保護

Hiccup Mode, Non-Latching (Auto-Recovery)
- V1: Range of 7.5-8.8A, when VSB is operating at rated output current. Protects only V1 and VSB continues operate
- VSB: Range of 0.6-1.1A, when V1 is operating at rated output current. Protects only VSB an

過溫保護

< 75°C Surrounding Air Temperature @ 100% load, Only V1 shuts down in Latch Mode, VSB continuous to operate

短路保護

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
- V1: short circuit, VSB: still continuously operating
- V1: still continuously operating, VSB: short circuit

電擊防護等級

Class I with PE connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

預計最長使用壽命

10 years (115Vac & 230Vac, 50% load @ 40°C)

電氣安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1
UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 3.0KVac
Input to FG: 1.5KVac
Output to FG: 0.5KVac

安全特低電壓

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

輻射與傳導

Generic Standards: CISPR 22, CISPR 32, EN/BS EN 55022,
EN/BS EN 55032, FCC Title 47: Class B

抗擾度

Generic Standards: EN/BS EN 55024

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A

電壓波動和閃變

IEC/EN/BS EN 61000-3-3
