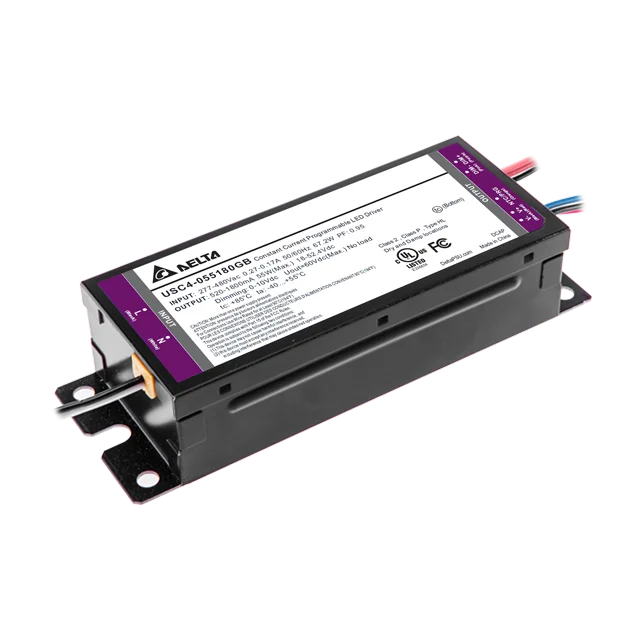

USC4-055180GB

LED Driver

USC4 LITE Series

USC4-055180GB

Output Voltage

Output Power

55W

Output Current

1.4A

Input Voltage Range

254-528Vac

Dimensions (L x W x H)

167.5 x 60 x 37.5 mm

6.59” x 2.36” x 1.48”

Unit Weight

0.83 kg (1.83 lb)

Highlights & Features
  • Constant current design
  • Programmable output current through program tool
  • 6KV Combi-wave surge rating meet ANSI C82.77-5
  • UL LISTED, Class P & Type HL , UL Dry & Damp
  • 1-10V dimming available
  • 50,000hours lifetime
Tags
Applications
USC4-055180GB
USC4-055180GB

LED Driver

USC4 LITE Series

USC4-055180GB

Highlights & Features
  • Constant current design
  • Programmable output current through program tool
  • 6KV Combi-wave surge rating meet ANSI C82.77-5
  • UL LISTED, Class P & Type HL , UL Dry & Damp
  • 1-10V dimming available
  • 50,000hours lifetime
Output Voltage

Output Power

55W

Output Current

1.4A

Input Voltage Range

254-528Vac

Dimensions

167.5 x 60 x 37.5 mm

6.59” x 2.36” x 1.48”

Unit Weight

0.83 kg (1.83 lb)

Applications
Tags

Download

Download

Datasheet

Uploaded on 01-Jun-2023


Uploaded on 01-Jun-2023

Mechanical Drawing

Uploaded on 01-Jun-2023

.STP

Uploaded on 01-Jun-2023

FCC

Uploaded on 01-Jun-2023

UL

Uploaded on 01-Jun-2023

GUI Program

Uploaded on 31-Aug-2023

Tech Specs

Tech Specs

Output Current
1.4A
Output Voltage
Output Voltage Range
18-52.4Vdc
Output Voltage Adjustment Range
-
Output Power
55W
Output Current Adjustment Range
0.6-1.4A
Max Output Voltage
60Vdc
Buffering Time
-
Line Regulation
± 1% (@ 277-480Vac input)
Load Regulation
± 3% (@ Min-Max output voltage)
PARD
-
Start-up Time
1000ms max. @ 277-480Vac @Full Load
Hold-up Time
-
Dynamic Response (Overshoot & Undershoot O/P Voltage)
-
Start-up with Capacitive Loads
-
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
-
Power Boost Duration
-
Power Boost Recovery Time
-
Nominal Input Voltage
277-480Vac
Input Voltage Range
254-528Vac
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
0.27 A @277 Vac
0.17 A@480 Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
88.5%@1.05A @277 Vac
88.0%@0.17A @480 Vac
Max Inrush Current
100A/200uS @277Vac
200A/200uS @480Vac
Charging Time
-
Power Factor at 100% load
> 0.9 @Full Load
Leakage Current
< 0.75mArms per UL8750
Nominal Current
-
Total Harmonic Distortion
THD < 20% @Full Load
Max Power Dissipation
-
Efficiency @ 10% load
-
Case Chassis / Cover
Steel
Indicator
-
Cooling System
Convection
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
< 24dBA (30cm distance)
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
-
Protection Structure
-
Terminal
-
Unit Weight
0.83 kg (1.83 lb)
Dimensions
167.5 x 60 x 37.5 mm
6.59” x 2.36” x 1.48”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
-40°C to +55°C
Storage Temperature
-40°C to +85°C
Power De-rating
-
Operating Humidity
10 to 85% RH (Non-Condensing)
Shock Test (Non-Operating)
-
Vibration (Non-Operating)
-
Storage Humidity
5 to 95% RH (Non-Condensing)
Operating Altitude
-
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Overvoltage
60 Vrms, Auto-Recovery when the fault is removed
Overload / Overcurrent
Reduce output current. Auto-Recovery when the fault is removed
Over Temperature
Reduce output current. Auto-Recovery when the fault is removed
Short Circuit
Auto-Recovery when the fault is removed
Reverse Polarity Protection
-
Degree of Protection
-
Protection Against Shock
-
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
-
Expected Cap Life Time
50,000 hours at case temp. tc & full load.
Safety Certificate
-
Electrical Safety
UL 8750, UL List, Class P
CE
-
Medical Safety
-
Galvanic Isolation
-
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
-
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
(CE & RE)
Compliance to 47 CFR FCC Part 15, Subpart B, Class A
Compliance to CAN ICES-005(A) / NMB-005(A)
Immunity
-
Harmonic Current Emissions
-
Voltage Fluctuation and Flicker
-
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-

Looking for support for this product?

Looking for support for this product?

Related Products

USC4-100140GB
Output Voltage

-

Output Power

100W

Output Current

1.4A

Input Voltage Range

254-528Vac

Dimensions (L x W x H)
168 x 60 x 38 mm
6.61” x 2.36” x 1.50”
Compare

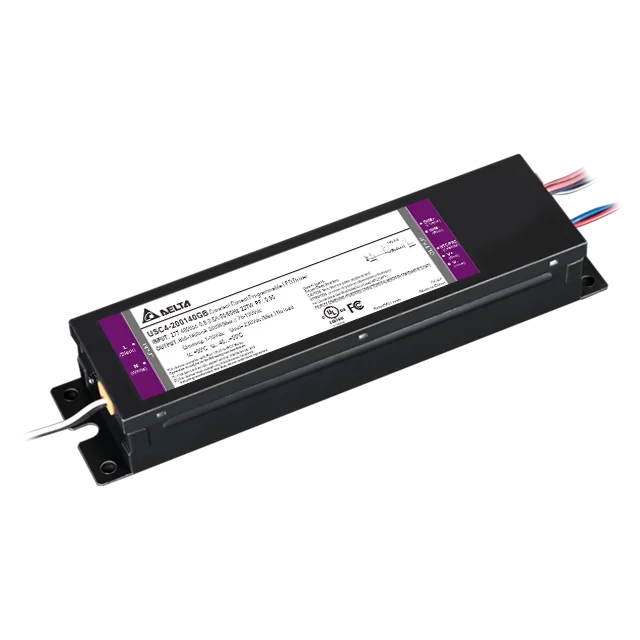

USC4-200140GB
