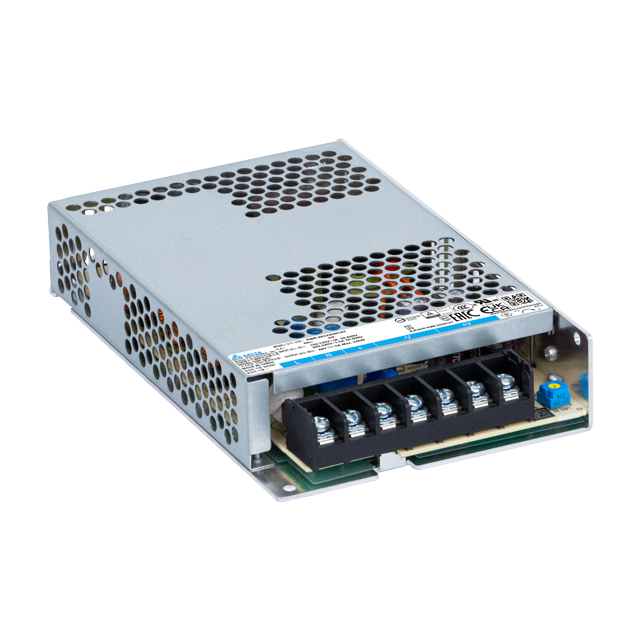

PMR-24V240W1AT

Panel Mount

PMR Series

PMR-24V240W1AT

Output Voltage

24V

Output Power

240W

Output Current

10A

Input Voltage Range

90-264 Vac

Dimensions (L x W x H)

159 x 97 x 30 mm

6.26” x 3.82” x 1.18”

Unit Weight

0.45 kg (0.99 lb)

Highlights & Features
  • Universal AC input voltage
  • Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D
  • Lower no load power consumption
  • Low profile design: 30 mm height
  • Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
  • Wide operating temp -30°C ~70°C (Support -40°C cold start)
Tags
Applications
PMR-24V240W1AT
PMR-24V240W1AT

Panel Mount

PMR Series

PMR-24V240W1AT

Highlights & Features
  • Universal AC input voltage
  • Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D
  • Lower no load power consumption
  • Low profile design: 30 mm height
  • Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
  • Wide operating temp -30°C ~70°C (Support -40°C cold start)
Output Voltage

24V

Output Power

240W

Output Current

10A

Input Voltage Range

90-264 Vac

Dimensions

159 x 97 x 30 mm

6.26” x 3.82” x 1.18”

Unit Weight

0.45 kg (0.99 lb)

Applications
Tags

Download

Download

Datasheet

Uploaded on 20-Feb-2023

Manual

Uploaded on 20-Feb-2023


Uploaded on 25-Apr-2023

Mechanical Drawing

Uploaded on 20-Apr-2023

.DXF

Uploaded on 20-Feb-2023

.STP

Uploaded on 20-Feb-2023

BSMI

Uploaded on 21-Feb-2023

CB

Uploaded on 21-Feb-2023

CCC

Uploaded on 21-Feb-2023

CE

Uploaded on 21-Feb-2023

EAC

Uploaded on 21-Feb-2023

KC

Uploaded on 21-Feb-2023

REACH

Uploaded on 07-Sep-2023

RoHS

Uploaded on 07-Sep-2023

TUV

Uploaded on 21-Feb-2023

UKCA

Uploaded on 21-Feb-2023

UL

Uploaded on 21-Feb-2023

Tech Specs

Tech Specs

Output Current
10A
Output Voltage
24V
Output Voltage Range
Output Voltage Adjustment Range
21.6-26.4 Vdc
Output Power
240W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
± 0.5% typ. @ 115 Vac & 230 Vac
Load Regulation
± 0.5% typ.
PARD
-
Start-up Time
500 ms typ. @ 115 Vac & 230 Vac
Hold-up Time
16 ms typ. @ 115 Vac & 230 Vac
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 10% @ 115 & 230 Vac input, 10-100% load
(Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 KHz)
Start-up with Capacitive Loads
8,000 µF Max
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
240.0 W Max.
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
30 ms typ. @ 115 Vac & 230 Vac
Power Boost Duration
-
Power Boost Recovery Time
-
Nominal Input Voltage
100-240 Vac
Input Voltage Range
90-264 Vac
Max Input Voltage
-
Nominal Input Frequency
50-60 Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
127-375 Vdc
Input Current
2.5 A typ. @ 115 Vac,
1.3 A typ. @ 230 Vac
Input Power (Standby Mode)
0.5 W typ. @ 230 Vac
Efficiency at 100% load
93.0% typ.
Max Inrush Current
50 A typ. @ 230 Vac
Charging Time
-
Power Factor at 100% load
> 0.96 @ 115 Vac &
> 0.93 @ 230 Vac
Leakage Current
< 1.2 mA @ 240 Vac
Nominal Current
-
Total Harmonic Distortion
-
Max Power Dissipation
-
Efficiency @ 10% load
-
Case Chassis / Cover
Aluminum / SGCC
Indicator
Green LED (DC OK)
Cooling System
Convection
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
-
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
AWG 18-12
Protection Structure
-
Terminal
M3.5 x 9 Pins (Rated 300 V / 20 A)
Unit Weight
0.45 kg (0.99 lb)
Dimensions
159 x 97 x 30 mm
6.26” x 3.82” x 1.18”
Vibration (Operating)
IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz @19.6 m/s2(2G); 10 min per cycle, 60 min for each axis (X,Y,Z)
Shock Test (Operating)
IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11 ms, 3 shock for each 3 directions.
Operating Temperature
-30°C to +70°C ( -40°C Cold Start )
Storage Temperature
-40°C to +85°C
Power De-rating
> 50°C de-rate power by 2% / °C
< 100Vac de-rate power by 1% / V (90% load @ 90 Vac)
Operating Humidity
20 to 90% (Non-Condensing)
Shock Test (Non-Operating)
IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11 ms, 3 shocks for each 3 directions
Vibration (Non-Operating)
IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09G); 20 min per axis for all X, Y, Z direction
Storage Humidity
-
Operating Altitude
0 to 5,000 Meters (0 to 16,400 ft)
Pollution Degree
3
Bump Test (Operating)
-
Over Voltage Category
II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)
Corrosion
-
Overvoltage
26.4 V - 33.6 V SELV Output, Latch Mode
Overload / Overcurrent
110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)
Over Temperature
Latch Mode
Short Circuit
Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
Reverse Polarity Protection
-
Degree of Protection
-
Protection Against Shock
Class I with Protection Earth connection
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
> 700,000 hrs as per Telcordia SR-332
I/P: 115 Vac & 230 Vac, O/P: 100% Load, Ta: 25°C)
Expected Cap Life Time
10 years (115 Vac & 230 Vac, 50% load @ 40°C)
Safety Certificate
-
Electrical Safety
TUV Bauart: EN 62368-1, EN 60335-1, EN 61558-1/-2-16
UL/cUL: UL 62368-1, and CAN/CSA C22.2 No. 62368-1
CB scheme: IEC 62368-1, IEC 60950-1, IEC 60335-1, IEC 61558-1/-2-16
EAC: TP TC 004/2011
BSMI: CNS 15598-1
CCC: GB 4943.1
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
Medical Safety
-
Galvanic Isolation
Input to Output: 4.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 1.25 KVac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
SELV
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
(CE & RE)
CISPR 32, EN/BS EN 55032, KS C 9832, AS/NZS CISPR32, EN/BS EN 61000-6-4
Compliance to FCC Title 47, EN/BS EN 55014-1, EN/BS 61000-6-3: Class B
Immunity
EN/BS EN 55035, KS C 9835, EN/BS EN 61000-6-2 & Compliance to EN/ BS EN 55014-2, EN/BS EN 61000-6-1
Harmonic Current Emissions
IEC/EN/BS EN 61000-3-2, Class A & Class D
Voltage Fluctuation and Flicker
IEC/EN/BS EN 61000-3-3
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
