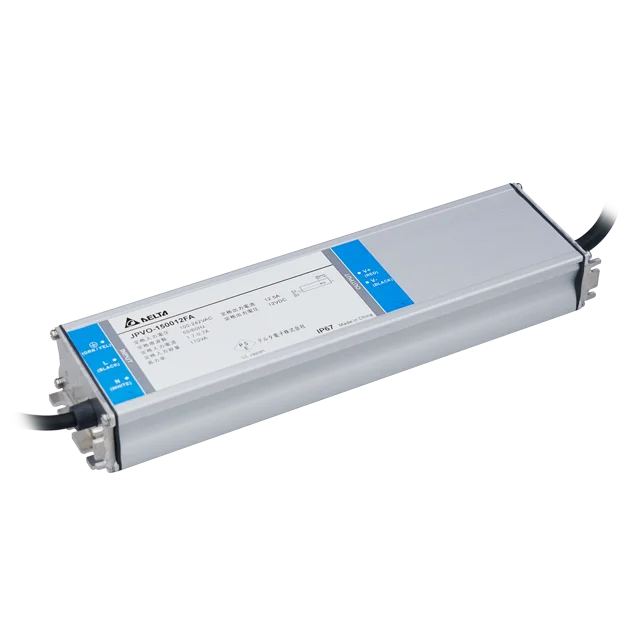

JPVO-150012FA

LED Driver

JPVO S12 Series

JPVO-150012FA

Output Voltage

12V

Output Power

150W

Output Current

12.5A

Input Voltage Range

90-266Vac

Dimensions (L x W x H)

280 x 70 x 37.5 mm

11.02” x 2.76” x 1.48”

Unit Weight

1.25 kg (2.76 lb)

Highlights & Features
  • 12V constant voltage design
  • AC input voltage 100 / 200 / 242Vac
  • Meet JIS C 61000-3-2 Class C
  • Meets CISPRJ 15
  • Up to 90% efficiency for 100W and 150W
  • Wide operating temperature range
  • IP67 ingress protection

Tags
Applications
JPVO-150012FA
JPVO-150012FA

LED Driver

JPVO S12 Series

JPVO-150012FA

Highlights & Features
  • 12V constant voltage design
  • AC input voltage 100 / 200 / 242Vac
  • Meet JIS C 61000-3-2 Class C
  • Meets CISPRJ 15
  • Up to 90% efficiency for 100W and 150W
  • Wide operating temperature range
  • IP67 ingress protection

Output Voltage

12V

Output Power

150W

Output Current

12.5A

Input Voltage Range

90-266Vac

Dimensions

280 x 70 x 37.5 mm

11.02” x 2.76” x 1.48”

Unit Weight

1.25 kg (2.76 lb)

Applications
Tags

Download

Download

Datasheet

Uploaded on 21-Feb-2023


Uploaded on 10-May-2023

Mechanical Drawing

Uploaded on 21-Feb-2023

.DXF

Uploaded on 21-Feb-2023

.STP

Uploaded on 22-Feb-2023

PSE

Uploaded on 22-Feb-2023

Tech Specs

Tech Specs

Output Current
12.5A
Output Voltage
12V
Output Voltage Range
Output Voltage Adjustment Range
-
Output Power
150W
Output Current Adjustment Range
0.1-12.5A
Max Output Voltage
12.6Vdc
Buffering Time
-
Line Regulation
± 1%
Load Regulation
± 5%
PARD
-
Start-up Time
< 1000ms
Hold-up Time
-
Dynamic Response (Overshoot & Undershoot O/P Voltage)
-
Start-up with Capacitive Loads
-
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
< 100ms
Power Boost Duration
-
Power Boost Recovery Time
-
Nominal Input Voltage
100 / 200 / 242Vac
Input Voltage Range
90-266Vac
Max Input Voltage
-
Nominal Input Frequency
50-60 Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
1.70 A @100 Vac
0.85 A @200 Vac
0.70 A @242 Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
88.1% @100 Vac
91.8% @200 Vac
91.7% @242 Vac
Max Inrush Current
40A @ 100Vac and 90A @ 242Vac at cold start
Charging Time
-
Power Factor at 100% load
> 0.9 @ full load
Leakage Current
< 0.7mA
Nominal Current
-
Total Harmonic Distortion
Meet JIS C 61000-3-2 Class C @ full load
Max Power Dissipation
-
Efficiency @ 10% load
-
Case Chassis / Cover
Aluminum
Indicator
-
Cooling System
Convection
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
< 24dBA, 30cm distance
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
-
Protection Structure
-
Terminal
-
Unit Weight
1.25 kg (2.76 lb)
Dimensions
280 x 70 x 37.5 mm
11.02” x 2.76” x 1.48”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
-40°C to +55°C
Storage Temperature
-40°C to +85°C
Power De-rating
-
Operating Humidity
10 to 90% RH (Non-Condensing)
Shock Test (Non-Operating)
-
Vibration (Non-Operating)
5Hz to 10 Hz (1G); 30 min per axis for all X, Y, Z direction
Storage Humidity
5 to 95% RH (Non-Condensing)
Operating Altitude
-
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Overvoltage
Auto-Recovery when the fault is removed
Overload / Overcurrent
Auto-Recovery when the fault is removed
Over Temperature
Auto-Recovery when the fault is removed
Short Circuit
Auto-Recovery when the fault is removed
Reverse Polarity Protection
-
Degree of Protection
IP67
Protection Against Shock
-
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
105-130% of full load
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
500,000 hrs.@ 40°C ambient temperature as per Telcordia SR-332
Expected Cap Life Time
50,000 hrs.@ lifetime case temperature
Safety Certificate
-
Electrical Safety
PSE Clause 1, Interpretation on Ministerial Ordinance establishing Technical Requirements Appendix 8, Sec. 1, 2 (102) DC Power Supply Unit, Appendix 10 Sec. 5 & Appendix 4 of the Enforcement Regulations (AC Electric Appliances)
CE
-
Medical Safety
-
Galvanic Isolation
Input to Output: 4,000 Vac
Input to Case: 1,500 Vac
Output to Case:500 Vac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
-
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
-
Immunity
-
Harmonic Current Emissions
JIS C 61000-3-2 Class C @ 100 / 200 / 242Vac, full load condition
Voltage Fluctuation and Flicker
-
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
JIS C 61000-4-5
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
