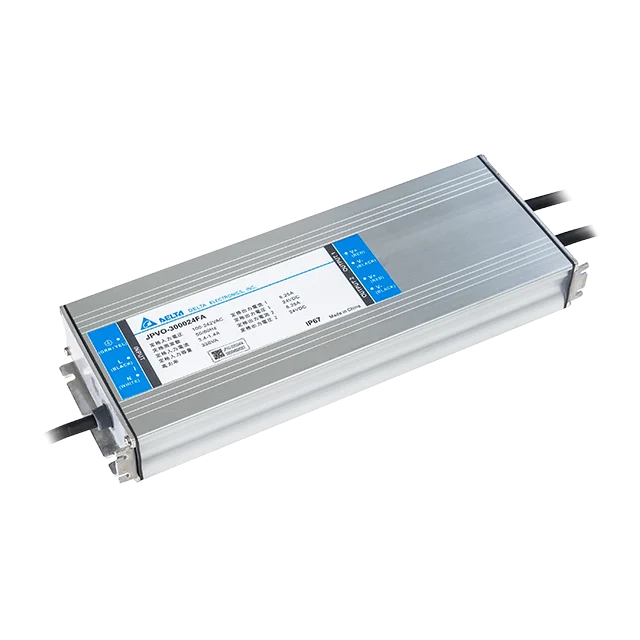

JPVO-300024FA

LED Driver

JPVO S24 Series

JPVO-300024FA

Output Voltage

24V

Output Power

300W

Output Current

6.25A,6.25A

Input Voltage Range

90-266Vac

Dimensions (L x W x H)

280 x 100 x 38 mm

11.02” x 3.94” x 1.50”

Unit Weight

1.8 kg (3.97 lb)

Highlights & Features
  • 24V constant voltage design
  • AC input voltage 100 / 200 / 242Vac
  • Meet JIS C 61000-3-2 Class C
  • Up to 90% efficiency for 60W, 90W, 150W, 200W and 300W
  • Wide operating temperature range
  • Multi-channel independent LED operation
  • IP67 ingress protection
    Tags
    Applications
    JPVO-300024FA
    JPVO-300024FA

    LED Driver

    JPVO S24 Series

    JPVO-300024FA

    Highlights & Features
    • 24V constant voltage design
    • AC input voltage 100 / 200 / 242Vac
    • Meet JIS C 61000-3-2 Class C
    • Up to 90% efficiency for 60W, 90W, 150W, 200W and 300W
    • Wide operating temperature range
    • Multi-channel independent LED operation
    • IP67 ingress protection
      Output Voltage

      24V

      Output Power

      300W

      Output Current

      6.25A,6.25A

      Input Voltage Range

      90-266Vac

      Dimensions

      280 x 100 x 38 mm

      11.02” x 3.94” x 1.50”

      Unit Weight

      1.8 kg (3.97 lb)

      Applications
      Tags

      Download

      Download

      Datasheet

      Uploaded on 23-Mar-2022


      Uploaded on 29-Dec-2021

      Mechanical Drawing

      Uploaded on 29-Dec-2021

      .STP

      Uploaded on 29-Dec-2021

      PSE

      Uploaded on 29-Dec-2021

      Tech Specs

      Tech Specs

      Output Current
      6.25A,6.25A
      Output Voltage
      24V
      Output Voltage Range
      Output Voltage Adjustment Range
      -
      Output Power
      300W
      Output Current Adjustment Range
      Max Output Voltage
      25.2Vdc
      Buffering Time
      -
      Line Regulation
      ± 1%
      Load Regulation
      ± 5%
      PARD
      -
      Start-up Time
      < 500ms
      Hold-up Time
      -
      Dynamic Response (Overshoot & Undershoot O/P Voltage)
      -
      Start-up with Capacitive Loads
      -
      Remote ON/OFF
      -
      Protective Device
      -
      Voltage Drop Between Input and Output
      -
      Residual Ripple/PARD (20MHz)
      -
      Residual Ripple
      -
      Max. Power
      -
      Ripple & Noise
      -
      LED System Voltage Range in CC Mode
      -
      Rise Time
      < 100ms
      Power Boost Duration
      -
      Power Boost Recovery Time
      -
      Nominal Input Voltage
      100 / 200 / 242Vac
      Input Voltage Range
      90-266Vac
      Max Input Voltage
      -
      Nominal Input Frequency
      50-60 Hz
      Input Frequency Range
      47-63Hz
      Nominal DC Input Voltage
      DC Input Voltage Range
      -
      Input Current
      3.38A @100Vac
      1.42A @200Vac
      1.36A @242Vac
      Input Power (Standby Mode)
      -
      Efficiency at 100% load
      89.0% @100Vac
      91.5% @200Vac
      91.5% @242Vac
      Max Inrush Current
      60A/ 200uS @ 100Vac and 135A/ 200uS @ 242Vac at cold start
      Charging Time
      -
      Power Factor at 100% load
      > 0.9 @ full load
      Leakage Current
      < 0.7mA
      Nominal Current
      -
      Total Harmonic Distortion
      Meet JIS C 61000-3-2 Class C @ full load
      Max Power Dissipation
      -
      Case Chassis / Cover
      Aluminum
      Indicator
      -
      Cooling System
      Convection
      Input Terminal
      Rubber cable(PNCTF type), Line: Black, Neutral: White, PE: Green/Yellow, cable length 150mm
      Output Terminal
      Rubber cable(SJOW type), Positive: Red, Negative: Black, cable length 150mm
      Signal Terminal
      -
      Noise Sound Pressure Level (SPL)
      < 24dBA, 30cm distance
      Input/Output Terminal
      -
      Signal
      -
      Mounting Rail
      -
      Wire
      -
      Protection Structure
      -
      Terminal
      -
      Unit Weight
      1.8 kg (3.97 lb)
      Dimensions
      280 x 100 x 38 mm
      11.02” x 3.94” x 1.50”
      Vibration (Operating)
      -
      Shock Test (Operating)
      -
      Operating Temperature
      -40°C to +40°C
      Storage Temperature
      -40°C to +85°C
      Power De-rating
      -
      Operating Humidity
      10 to 90% RH (Non-Condensing)
      Shock Test (Non-Operating)
      -
      Vibration (Non-Operating)
      5Hz to 10 Hz (1G); 30 min per axis for all X, Y, Z direction
      Storage Humidity
      5 to 95% RH (Non-Condensing)
      Operating Altitude
      -
      Pollution Degree
      -
      Bump Test (Operating)
      -
      Over Voltage Category
      -
      Overvoltage
      Auto-Recovery when the fault is removed
      Overload / Overcurrent
      Auto-Recovery when the fault is removed
      Over Temperature
      Auto-Recovery when the fault is removed
      Short Circuit
      Auto-Recovery when the fault is removed
      Reverse Polarity Protection
      -
      Degree of Protection
      -
      Protection Against Shock
      -
      Input Polarity Protection
      -
      Battery Polarity Protection
      -
      Wrong Battery Voltage Protection
      -
      Deep Discharge Protection
      -
      Overload
      -
      Overcurrent
      105-130% of full load
      Internal Fuse
      -
      Insufficient Input Voltage Protection
      -
      MTBF
      500,000 hrs.@ 40°C ambient temperature as per Telcordia SR-332
      Expected Cap Life Time
      50,000 hrs.@ lifetime ambient temperature
      Safety Certificate
      -
      Electrical Safety
      PSE Clause 1, Interpretation on Ministerial Ordinance establishing Technical Requirements Appendix 8, Sec. 1, 2 (102) DC Power Supply Unit, Appendix 10 Sec. 5 & Appendix 4 of the Enforcement Regulations (AC Electric Appliances)
      CE
      -
      Medical Safety
      -
      Galvanic Isolation
      Input to Output : 4,000Vac
      Input to Case : 1,500Vac
      Output to Case : 500Vac
      Industrial Control Equipment
      -
      Hazardous Location / ATEX
      -
      II 3 G ATEX 2014/34/EU
      -
      Electrical Equipments of Machines
      -
      Electrical Equipment for Use in Electrical Power Installations
      -
      Safety Entry Low Voltage
      -
      Maritime
      -
      Material and Parts
      -
      Isolation Resistance
      -
      PE Resistance
      -
      UKCA
      -
      Certificates for Other Countries
      -
      BIS
      -
      KC
      -
      Emission
      -
      Immunity
      -
      Harmonic Current Emissions
      JIS C 61000-3-2 Class C @ 100 / 200 / 242Vac, full load condition
      Voltage Fluctuation and Flicker
      -
      ESD Immunity
      -
      Radiated Immunity
      -
      EFT
      -
      Surge
      JIS C 61000-4-5
      Conducted Immunity
      -
      Magnetic Field
      -
      Voltage Dips
      -
      Component Power Supply for General Use
      -
      Nominal Battery Voltage
      -
      Battery Voltage Range
      -
      Battery Capacity
      -
      Battery Charging Mode
      -
      End of Charge Voltage
      -
      Battery Fuse
      -
      Battery Discharging Voltage Range
      -
      Battery Charging Current
      -
      Battery Current Consumption
      -
      Discharging Current
      -
      Recommended Charging Voltage
      -
