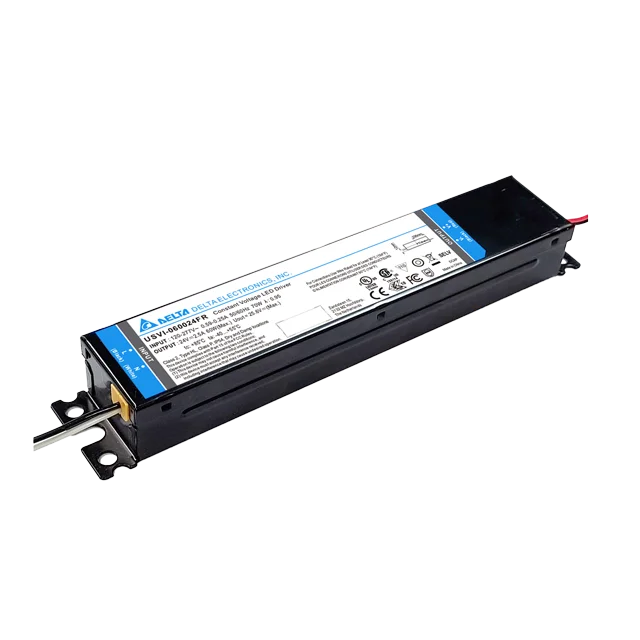

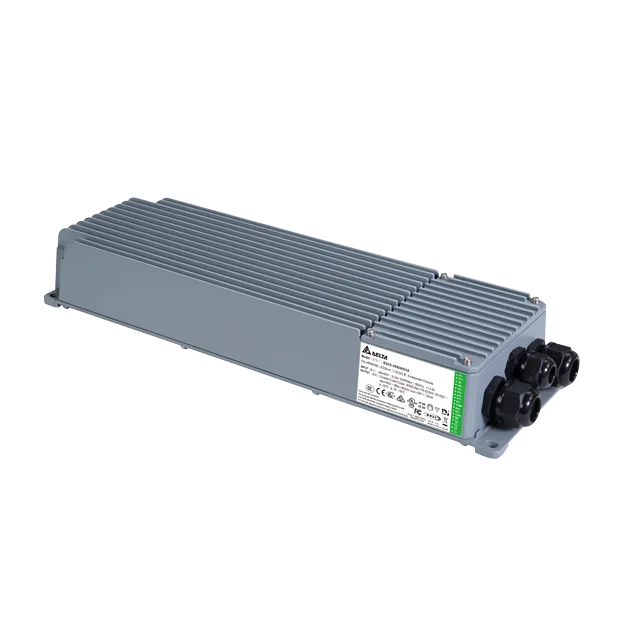

USVI-060024FR

LED Driver

USVI RDL Series

USVI-060024FR

Output Voltage

24V

Output Power

60W

Output Current

2.5A

Input Voltage Range

108-305 Vac

Dimensions (L x W x H)

241.3 x 43.1 x 30 mm

9.50” x 1.70” x 1.18”

Unit Weight

0.6 kg (1.32 lb)

Highlights & Features
  • Constant voltage design
  • Universal input voltage from 120-277Vac
  • Up to 90% efficiency for 100W and 80W
  • Wide operating temperature range -40°C to +55°C
  • Dry and Damp location rated
  • Particular in refrigeration display lighting application
  • Safety certificated for household and refrigerator appliances
  • Suitable for Class I and Class II systems
Applications
USVI-060024FR
USVI-060024FR

LED Driver

USVI RDL Series

USVI-060024FR

Highlights & Features
  • Constant voltage design
  • Universal input voltage from 120-277Vac
  • Up to 90% efficiency for 100W and 80W
  • Wide operating temperature range -40°C to +55°C
  • Dry and Damp location rated
  • Particular in refrigeration display lighting application
  • Safety certificated for household and refrigerator appliances
  • Suitable for Class I and Class II systems
Output Voltage

24V

Output Power

60W

Output Current

2.5A

Input Voltage Range

108-305 Vac

Dimensions

241.3 x 43.1 x 30 mm

9.50” x 1.70” x 1.18”

Unit Weight

0.6 kg (1.32 lb)

Applications

Download

Download

Datasheet

Uploaded on 08-Dec-2022


Uploaded on 08-Mar-2024

Mechanical Drawing

Uploaded on 28-May-2021

.STP

Uploaded on 28-May-2021

CB

Uploaded on 28-May-2021

CCC

Uploaded on 08-Dec-2022

CE & UKCA

Uploaded on 07-Nov-2023

CSA

Uploaded on 28-May-2021

ENEC

Uploaded on 28-May-2021

RoHS

Uploaded on 28-May-2021

UL

Uploaded on 28-May-2021

Tech Specs

Tech Specs

Output Current
2.5A
Output Voltage
24V
Output Voltage Range
Output Voltage Adjustment Range
-
Output Power
60W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
± 1%
Load Regulation
± 3%
PARD
-
Start-up Time
< 1.0 s
Hold-up Time
-
Dynamic Response (Overshoot & Undershoot O/P Voltage)
-
Start-up with Capacitive Loads
-
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
< 50 ms
Power Boost Duration
-
Power Boost Recovery Time
-
Nominal Input Voltage
120-277 Vac
Input Voltage Range
108-305 Vac
Max Input Voltage
-
Nominal Input Frequency
50-60 Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
0.59 typ.
Input Power (Standby Mode)
-
Efficiency at 100% load
87% typ. @ 230 Vac
Inrush Current
>50% Duration 50 A/ 200 us
Charging Time
-
Power Factor at 100% load
> 0.95
Leakage Current
< 0.7mA @ 230Vac
Nominal Current
-
Total Harmonic Distortion
Meet IEC 61000-3-2 Class C
Power Dissipation
-
Efficiency @ 10% load
-
Case Chassis / Cover
Metal sheet
Indicator
-
Cooling System
Convection
Input Terminal
Line: Black, Neutral: White, Wire Length 300mm
Output Terminal
Positive: Red, Negative: Black, Wire Length 300mm
Signal Terminal
-
Noise Sound Pressure Level (SPL)
< 24 dBA
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
Input Wire : Line: Black, Neutral: White, Wire Length 300mm
Output Wire: Positive: Red, Negative: Black, Wire Length 300mm
Protection Structure
-
Terminal
-
Unit Weight
0.6 kg (1.32 lb)
Dimensions
241.3 x 43.1 x 30 mm
9.50” x 1.70” x 1.18”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
-40°C to +55°C
Storage Temperature
-40°C to +85°C
Power De-rating
-
Operating Humidity
10 to 90% RH (Non-Condensing)
Shock Test (Non-Operating)
-
Vibration (Non-Operating)
-
Storage Humidity
5 to 95% RH (Non-Condensing)
Operating Altitude
< 2,000m
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Overvoltage
Auto-Recovery when the fault is removed
Overload / Overcurrent
Auto-Recovery when the fault is removed
Over Temperature
Auto-Recovery when the fault is removed
Short Circuit
Auto-Recovery when the fault is removed
Reverse Polarity Protection
-
Degree of Protection
-
Protection Against Shock
-
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
850,000 hrs. @ta: +45°C (as per Telcordia SR-332 , total failure rate less than 10% )
Expected Cap Life Time
50,000 hrs. at lifetime case temperature
Safety Certificate
-
Electrical Safety
UL: UL 8750, Class P, type “HL”. Class 2 Output
CSA: CAN/CSA C22.2 No.250.13
CB scheme: IEC 61347-1, IEC 61347-2-13, IEC 60335-1, IEC 60335-2-89 and Annex BB, IEC 60335-2-24 and Annex CC, SELV Output
CCC: GB 17625.1-2012, GB/T 17743-2017, GB 19510.1-2009, GB 19510.14-2009
CE
In conformance with : Low Voltage Directive 2014/35/EU ; EMC Directive 2014/30/EU ; RoHS Directive 2011/65/EU+ (EU) 2015/863 and Erp Directive 2009/125/EC Implementing measure Commission Regulation (EU) 2019/2020.
Medical Safety
-
Galvanic Isolation
Input: 3000 Vac
Output : 500 Vac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
-
Isolation Resistance
Input-Output: 3000Vac Input-Case: 3000Vac
Output-Input: 3000Vac Output-Case: 500Vac
Case-Input: 3000Vac Case-Output: 500Vac
PE Resistance
-
UKCA
In conformance with : Elecrtical Equipment (Safety) Regulations 2016; Electromagnetic Compatibility Regulations 2016 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (as amended 2019,2020)
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
Compliance to BS EN/ EN 55015 & FCC Part 15 Class A
Immunity
Compliance to BS EN/ EN 61547
Harmonic Current Emissions
EN 61000-3-2 Class C (230Vac @ 100% load)
Voltage Fluctuation and Flicker
IEC 61000-3-3 Pst ≤ 1.0; dmax ≤ 4% ; Plt ≤ 0.65 ; dc ≤ 3.3% ; Tmax ≤ 500ms
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
